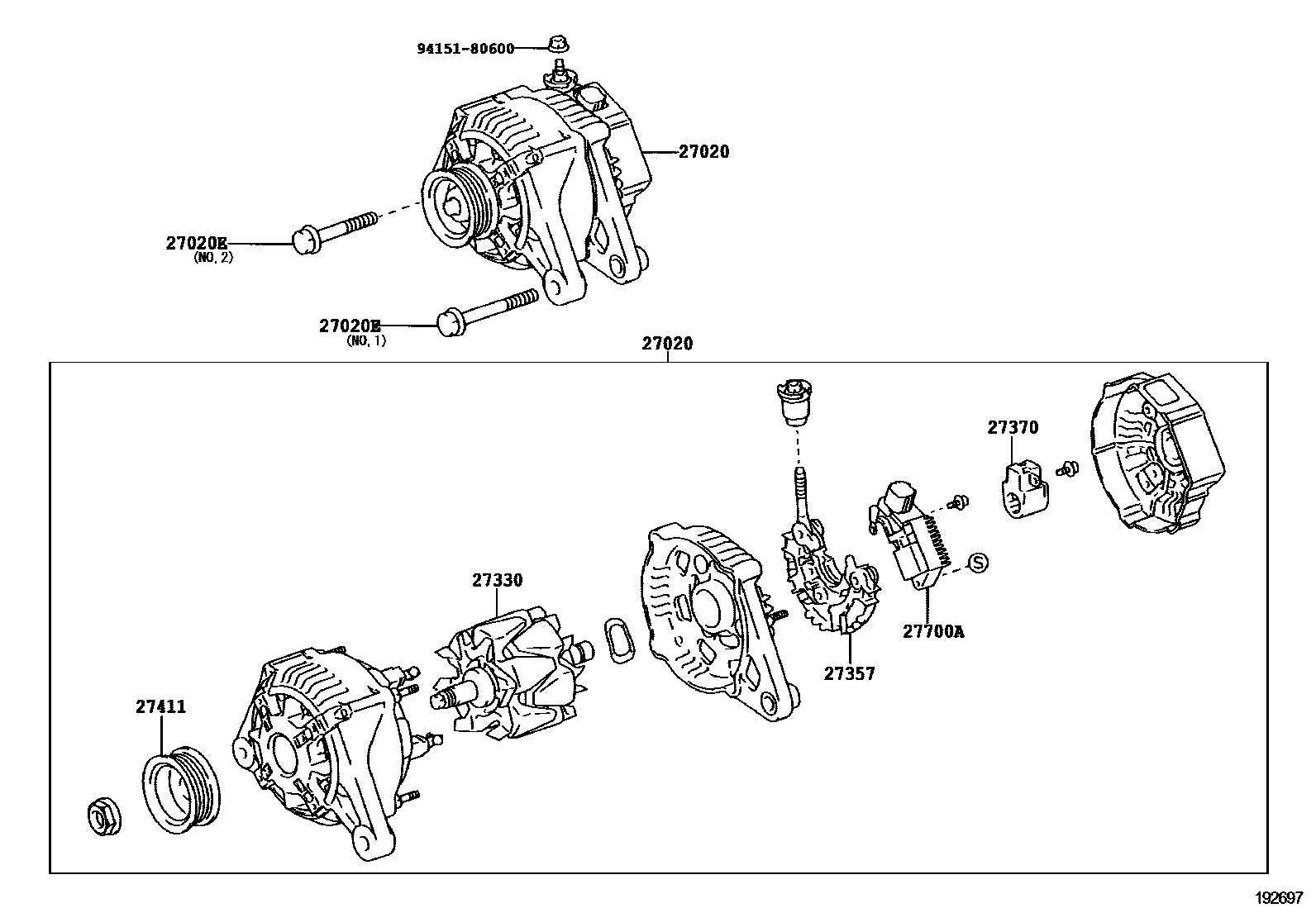

ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 100A 0004 112V 100A 0005 112V 80A 0006 112V 100A 0007 112V 100A

27020ALTERNATOR ASSY

main27060-22260i4ZZFE..ZZE150200610-200812

12V 80A

main27060-26051i1ADFTV..ADE150200610-200901

12V 100A

main27060-26070i1ADFTV..ADE150200901-200910

12V 100A

main27060-33071i1NDTV..NDE150200610-200805

12V 100A

sub27060-33072

main27060-33072i1NDTV..NDE150200806-200812

12V 100A

main27060-33100i1NDTV..NDE150200812-200910

12V 100A

main27060-37010i1ZRFE..ZRE151200610-200902

12V 100A

sub27060-37011

main27060-37011i1ZRFE..ZRE151..SOL200903-201003

12V 100A

main27060-37050i1ZRFAE,2ZRFAE..ZRE15#200812-200902

12V 100A

sub27060-37051

main27060-37051i1ZRFAE,2ZRFAE..ZRE15#200903-200910

12V 100A

main27060-47010i1NRFE..NRE150200809-200910

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NRFE..NRE150200809-200910

main90105-10075i4ZZFE..ZZE150200610-200812

NO.1

main90105-10111i1NDTV..NDE150200812-200910

main90105-10307i1ZR#,2ZRFAE..ZRE15#200610-201003

main90105-10520i1NDTV..NDE150200610-200812

main90105-10571i1NDTV..NDE150200910

main91511-80830i4ZZFE..ZZE150200610-200812

NO.2

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1NDTV,1ZRFE..NDE150,ZRE151200610-201003

main27330-30130i1NRFE..NRE150200904-200910

main27330-62220i4ZZFE..ZZE150200610-200904

sub27330-30130

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i4ZZFE..ZZE150200610-200910

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i4ZZFE..ZZE150200610-200910

main27370-31220i1NDTV,1ZRFE..NDE150,ZRE151..TERRA200610-201003

main27370-58460i1ADFTV..ADE150200610-200910

27411PULLEY, ALTERNATOR

main27411-22210i4ZZFE..ZZE150200610-200910

27700AREGULATOR ASSY, GENERATOR

main27700-75030i4ZZFE..ZZE150200610-200812

9415180600

main94151-80600

8 parts on this diagram · 7 diagrams in section
