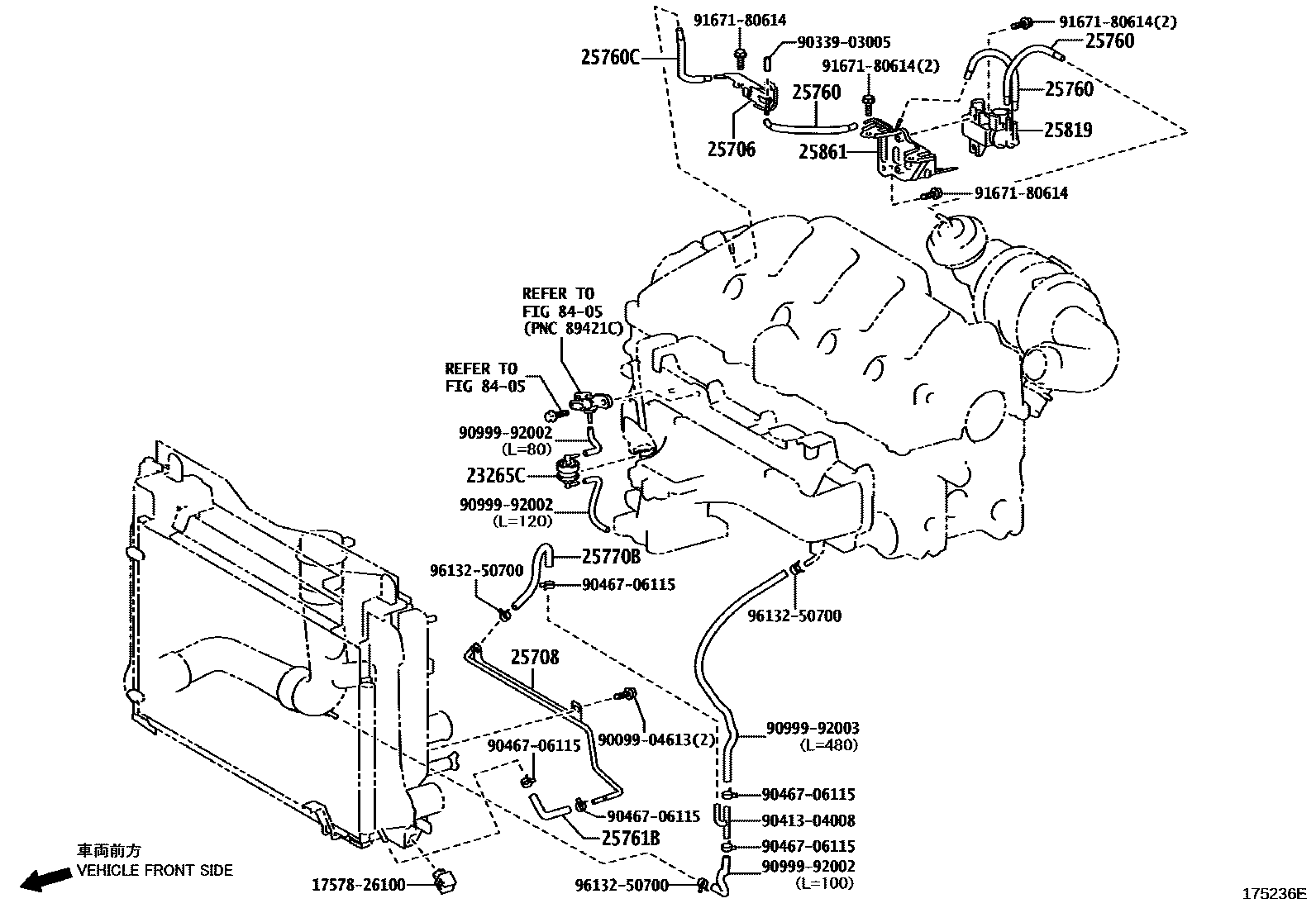

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

23265FILTER, GAS, NO.1

main90917-11022i1ZRFAE,2ZRFAE..ZRE15#¥1,020200812-200910

main90917-11044i1ADFTV..ADE150¥910200901-200910

23265CFILTER, GAS

main90917-11036i1ADFTV..ADE150¥910200610-200901

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-26010i1ADFTV..ADE150¥2,650200610-200910

25708PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3

main25736-0R020i1ADFTV..ADE150200901-200910

main25736-26030i1ADFTV..ADE150200610-200901

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-26021i1ADFTV..ADE150..DCR¥800200610-200910

main25760-33080i1NDTV..NDE150..DCRL¥1,620200812-200910

25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3

main25760-26120i1ADFTV..ADE150200610-200910

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-26030i1ADFTV..ADE150200610-200910

main25761-37010i1ZRFE..ZRE151¥3,400200610-200909

main25761-37011i1ZRFE..ZRE151¥1,690200910

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-26020i1ADFTV..ADE150..DCRL¥1,360200610-200910

main25770-33020i1NDTV..NDE150..DCRL¥1,540200812-200910

25770BHOSE ASSY, VACUUM TRANSMITTING, NO.3

main25770-26071i1ADFTV..ADE150200610-200901

25819VALVE ASSY, VACUUM REGULATING

main25819-0R011i1ADFTV..ADE150200610-200910

sub25819-0R012

25861BRACKET, VACUUM SWITCHING VALVE

main25861-26010i1ADFTV..ADE150..DCR¥1,470200610-200901

main25861-26040i1ADFTV..ADE150..DCRL200610-200901

main25861-26070i1ADFTV..ADE150200901-200910

main25861-37010i1ZRFAE,2ZRFAE..ZRE15#¥270200812-200910

8405

1757826100CLAMP, PIPE

main17578-26100

9009904613

main90099-04613¥0

9033903005

main90339-03005¥110

9041304008

main90413-04008¥460

9046706115

main90467-06115¥120

9099992002

main90999-92002¥460

9099992003

main90999-92003¥520

9167180614

main91671-80614¥60

9613250700

main96132-50700¥110

21 parts on this diagram · 11 diagrams in section
