WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

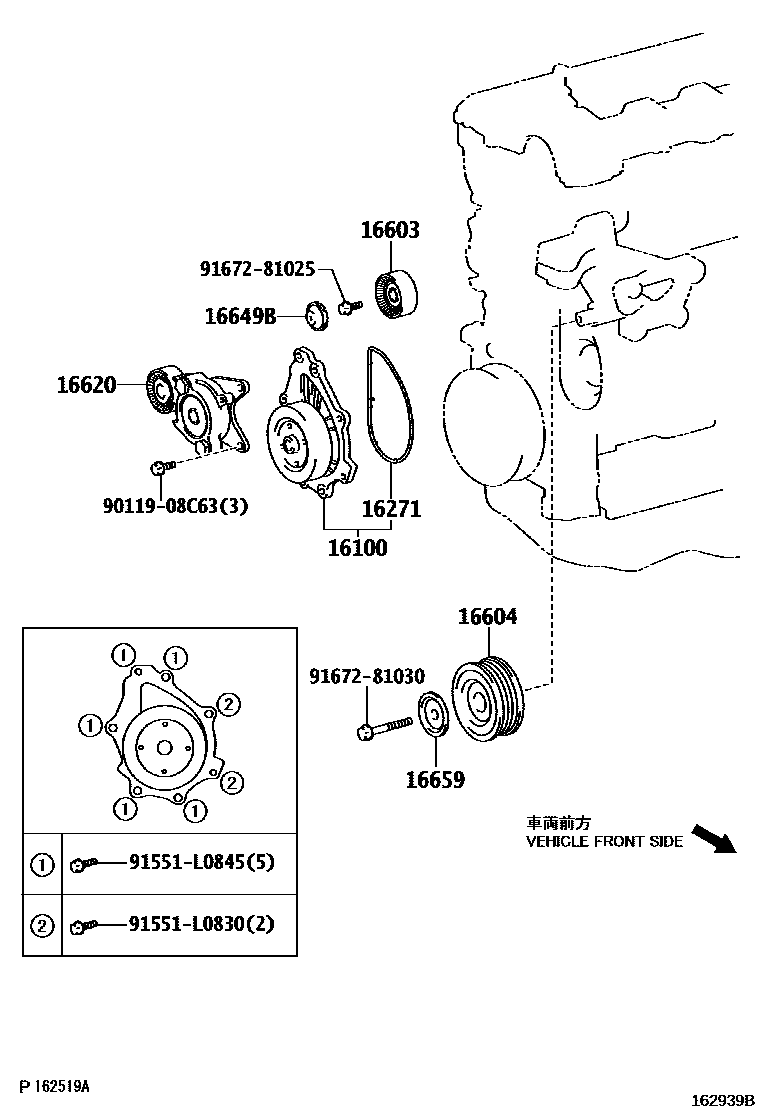

16100PUMP ASSY, ENGINE WATER

main16100-29415i4ZZFE..ZZE150200610-200812

main16100-29495i1ADFTV..ADE150200610-200910

sub16100-29496

main16100-39395i1NDTV..NDE150200610-200812

main16100-39465i1ZRFE..ZRE151200610-200906

sub16100-39466

sub91551-80825

main16100-39466i1ZRFE..ZRE151200906-200910

main16100-39525i1NDTV..NDE150200812-200910

sub16100-39526

main16100-80004i1NRFE..NRE150200809-200910

sub16100-80010

sub91552-81050

16271GASKET, WATER PUMP

main16271-26010i1ADFTV..ADE150200610-200910

main16271-33020i1NDTV..NDE150200610-200812

main16271-33030i1NDTV..NDE150200812-200910

main16271-37010i1ZR#,2ZRFAE..ZRE15#200610-201208

main16271-47031i1NRFE..NRE150200809-200910

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i1ADFTV..ADE150200610-200910

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-26010i1ADFTV..ADE150200610-200704

sub16604-26011

main16604-26011i1ADFTV..ADE150200704-200910

sub16604-26012

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i1ADFTV..ADE150200610-200910

main16620-22013i4ZZFE..ZZE150200610-200812

OTICS

sub16620-0W093

main16620-33020i1NDTV..NDE150200812-201208

sub16620-33021

main16620-47010i1NRFE..NRE150200809-200910

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i1ADFTV..ADE150200610-200910

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-26010i1ADFTV..ADE150200610-200910

9011908C63

main90119-08C63

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167281025

main91672-81025

9167281030

main91672-81030

12 parts on this diagram · 6 diagrams in section
