VENTILATION HOSE

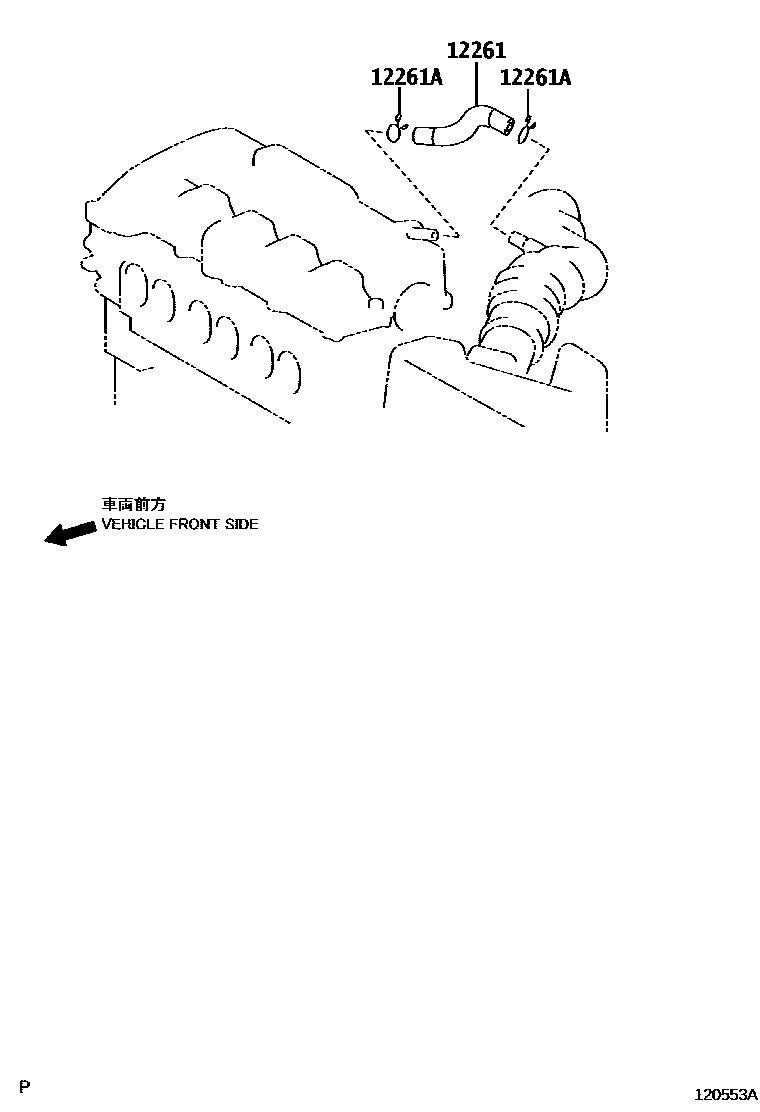

Parts diagram
12261HOSE, VENTILATION
main12261-0D040i200610-200812
(L)
main12261-0R020i200610-200910
main12261-22050i200610-200812
(J)
main12261-33060i200610-200812
main12261-33120i200812-201208
main12261-37040i200610-200910
main12261-37040i200910-201003
*119
main12261-37050i200812-200910
main12261-37080i201003-201208
*119
main12261-47010i200809-200910
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-22005i201111-201208
*119,NO.2
main90466-23003i200610-200910
main90467-15120i200610-201208
NO.1
main90467-16035i200809-200910
main90467-20009i200610-200812
main90467-21152i200610-200812
main90467-22010i200610-200809
NO.2
main90467-23002i200910-201111
*119,NO.2
main90467-23002i200809-200910
NO.2

2 parts on this diagram · 6 diagrams in section
