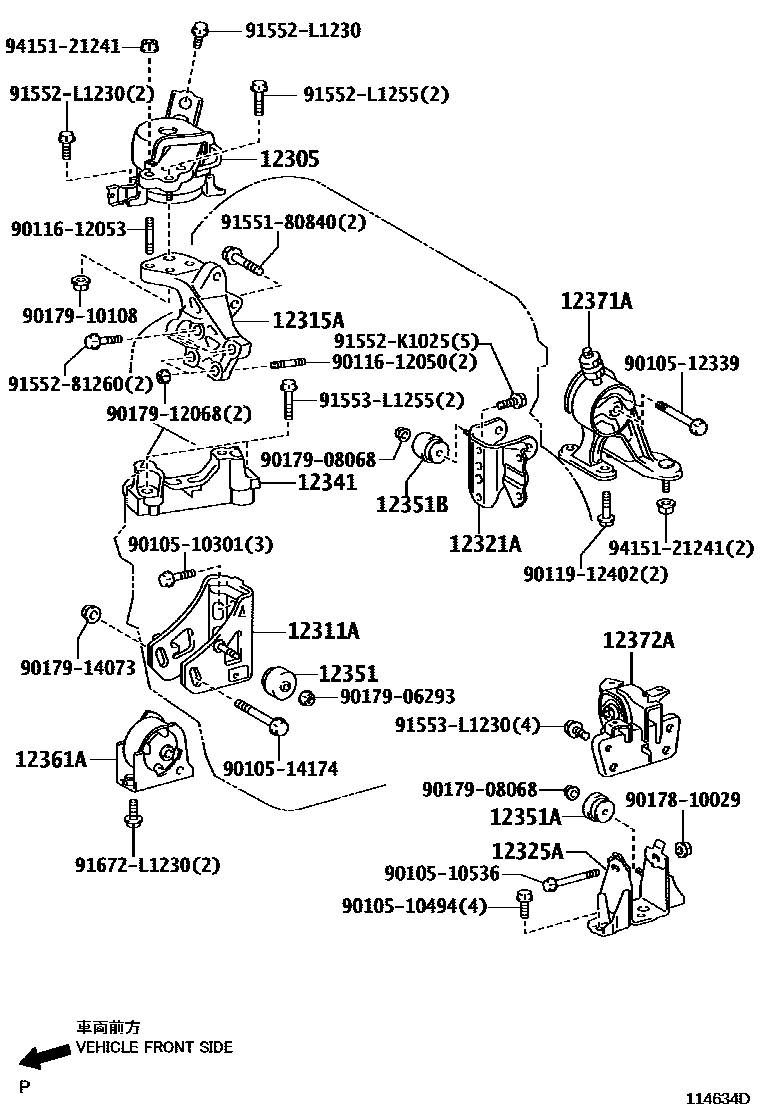

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-22350i4ZZFE..ZZE150200610-200812

main12305-22360i1ZRFE..ZRE151200610-200708

main12305-22361i1ZR#,2ZRFAE..ZRE15#200812-200910

main12305-26080i1ADFTV..ADE150200901-200910

main12305-33100i1NDTV..NDE150200610-200812

main12305-33130i1NDTV..NDE150200812-200910

main12305-47010i1NRFE..NRE150200809-200910

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-22220i4ZZFE..ZZE150200610-200812

main12311-22230i1ZRFE..ZRE151200610-200812

main12311-26110i1ADFTV..ADE150200610-200901

main12311-33030i1NDTV..NDE150200610-200812

main12311-33040i1NDTV..NDE150200812-200910

main12311-37120i1NRFE..NRE150200809-200910

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-22020i4ZZFE..ZZE150200610-200812

main12315-26020i1ADFTV..ADE150200901-200910

main12315-33040i1NDTV..NDE150200610-200812

main12315-33050i1NDTV..NDE150200812-200910

main12315-37030i1ZR#,2ZRFAE..ZRE15#200812-200910

main12315-47040i1NRFE..NRE150200809-200910

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-22190i4ZZFE..ZZE150200610-200812

main12321-22200i1ZRFE..ZRE151200610-200812

main12321-26030i1ADFTV..ADE150200610-200901

main12321-37100i1ZRFE..ZRE151..TERRA200910

main12321-47050i1N#..NDE150,NRE150..6F,6FS200809-200910

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-37100i1ZRFE..ZRE151..TERRA200910

main12325-22280i1ZRFE,4ZZFE..ZRE151,ZZE150200610-200812

main12325-26030i1ADFTV..ADE150200610-200901

main12325-47050i1NRFE..NRE150200809-200910

12341SPACER, ENGINE MOUNTING

main12341-26010i1ADFTV..ADE150200610-200801

main12341-26011i1ADFTV..ADE150200802-200901

12351DAMPER, ENGINE MOUNTING

main12351-27050i1ZRFE..ZRE151200610-200812

main12351-37060i1ZRFE..ZRE151200910

main12351-63010i1ADFTV..ADE150200610-200901

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-26010i1ZRFE..ZRE151..TERRA200910

12351BDAMPER, ENGINE MOUNTING

main12351-22110i4ZZFE..ZZE150200610-200812

main12351-26010i1ZRFE..ZRE151200610-200812

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-26080i1ADFTV..ADE150200901-200910

main12361-28230i1ZRFE,4ZZFE..ZRE151,ZZE150200610-200812

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-22220i1ZRFE..ZRE151..TERRA200910

main12371-26020i1ADFTV..ADE150200610-200901

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-22150i1ZRFE,4ZZFE..ZRE151,ZZE150200610-200812

main12372-26020i1ADFTV..ADE150200901-200910

main12372-33050i1NDTV..NDE150200610-200812

main12372-33080i1NDTV..NDE150200812-200910

main12372-37150i1ZR#,2ZRFAE..ZRE15#200812-200910

main12372-47040i1NRFE..NRE150200809-200910

9010510301

main90105-10301

9010510494

main90105-10494

9010510536

main90105-10536

9010512339

main90105-12339

9010514174

main90105-14174

9011612050

main90116-12050

9011612053

main90116-12053

9011912402

main90119-12402

9017810029

main90178-10029

9017906293

main90179-06293

9017908068

main90179-08068

9017910108

main90179-10108

9017912068

main90179-12068

9017914073

main90179-14073

9155180840

main91551-80840

9155281260

main91552-81260

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

35 parts on this diagram · 7 diagrams in section
