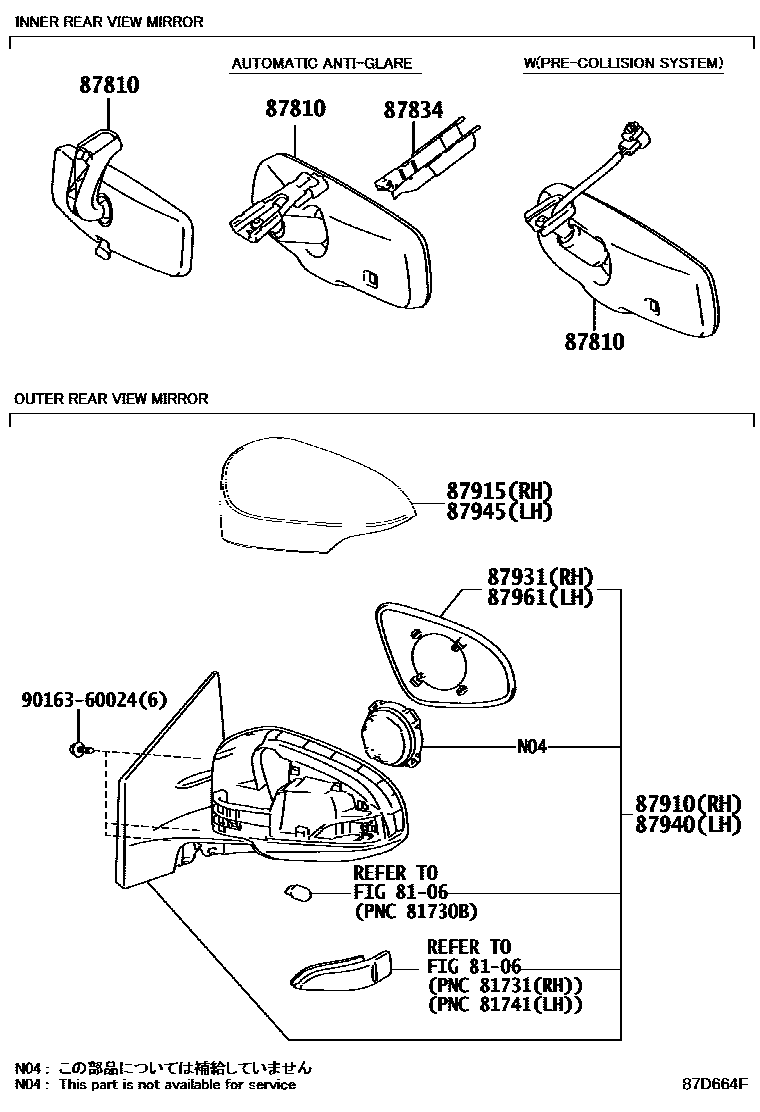

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
INTERMITTENT WIPER-WITH(AUTO)
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(AUTO)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INTERMITTENT WIPER-WITH(AUTO)
INTERMITTENT WIPER-WITH(AUTO)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER)
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87961MIRROR OUTER, LH
9016360024
main90163-60024
10 parts on this diagram · 1 diagram in section
