WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02330iNDE180,ZRE181..RHD201606-201901

main85110-02340iNRE180..LHD201606-201808

85160LINK ASSY, WINDSHIELD WIPER

main85150-02320iNRE180..LHD201606-201808

main85150-02340iNDE180,NRE180,ZRE181..RHD201306-201605

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iNDE180,ZRE18#201606-201901

85211BARM, FRONT WIPER, RH

main85211-02290iNDE180,ZRE181..RHD201606-201901

main85211-02300iNDE180,ZRE18#..LHD201606-201901

85212ABLADE, FR WIPER, RH

main85212-02250iNDE180,NRE180,ZRE18#..LHD201306-201605

main85212-02290iNDE180,ZRE181..RHD201606-201901

85214ARUBBER, WIPER, RH

main85214-02260iNDE180,NRE180,ZRE18#..LHD201306-201605

main85214-02340iNRE180..RHD201606-201808

85214BRUBBER, WIPER, LH

main85214-02260iNDE180,NRE180,ZRE181..RHD201606-201712

main85214-02340iNDE180,NRE180,ZRE18#..LHD201306-201605

main85214-68030iNRE180..RHD201712-201808

85221BARM, FRONT WIPER, LH

main85221-02300iNRE180..RHD201606-201808

main85221-02310iNRE180..LHD201606-201808

85222ABLADE, FR WIPER, LH

main85222-02260iNDE180,NRE180,ZRE181..RHD201306-201605

main85222-02300iNRE180..LHD201606-201808

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iNDE180,ZRE18#201606-201901

89941SENSOR, RAIN

main89941-0D010iZRE18#..N;NDE180..6F..N201606-201901

LIGHT GRADE&AIR CONDITIONER-COOLER LESS

89943COVER, RAIN SENSOR

main89943-02020iZRE18#..N;NDE180..6F..N201606-201901

LIGHT GRADE&AIR CONDITIONER-COOLER LESS

89944TAPE, RAIN SENSOR

main89944-02010iZRE18#..N;NDE180..6F..N201606-201901

LIGHT GRADE&AIR CONDITIONER-COOLER LESS

90119W0082

main90119-W0082

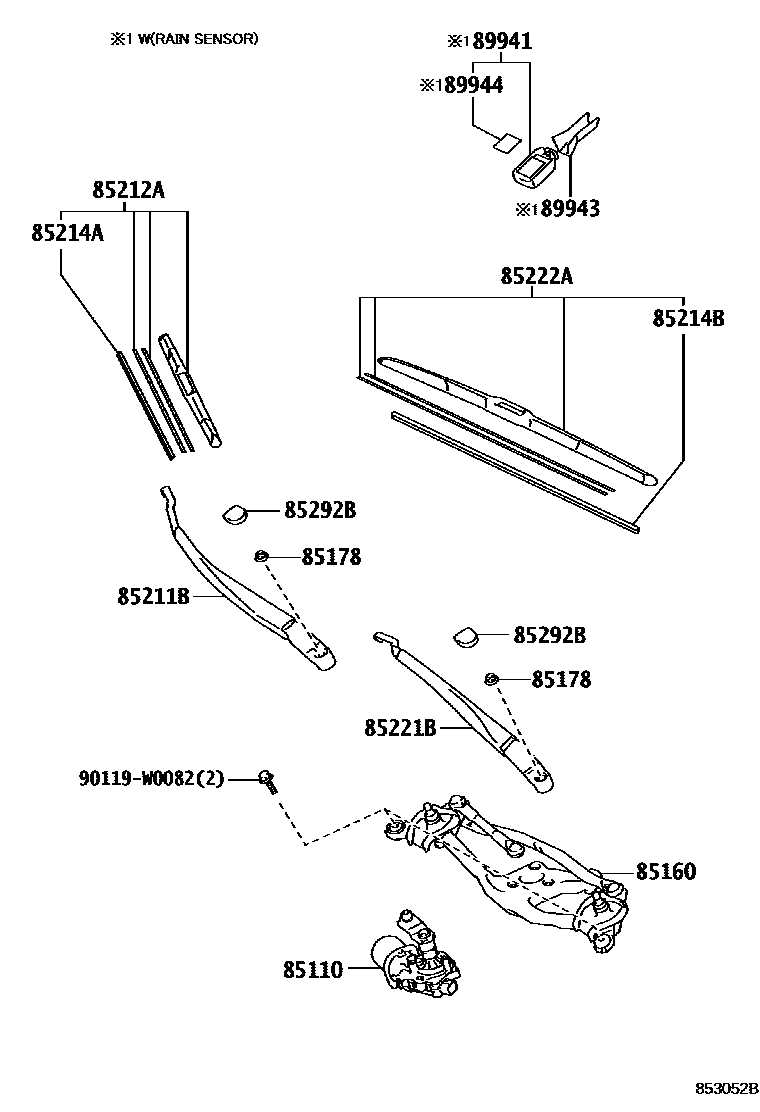

14 parts on this diagram · 2 diagrams in section
