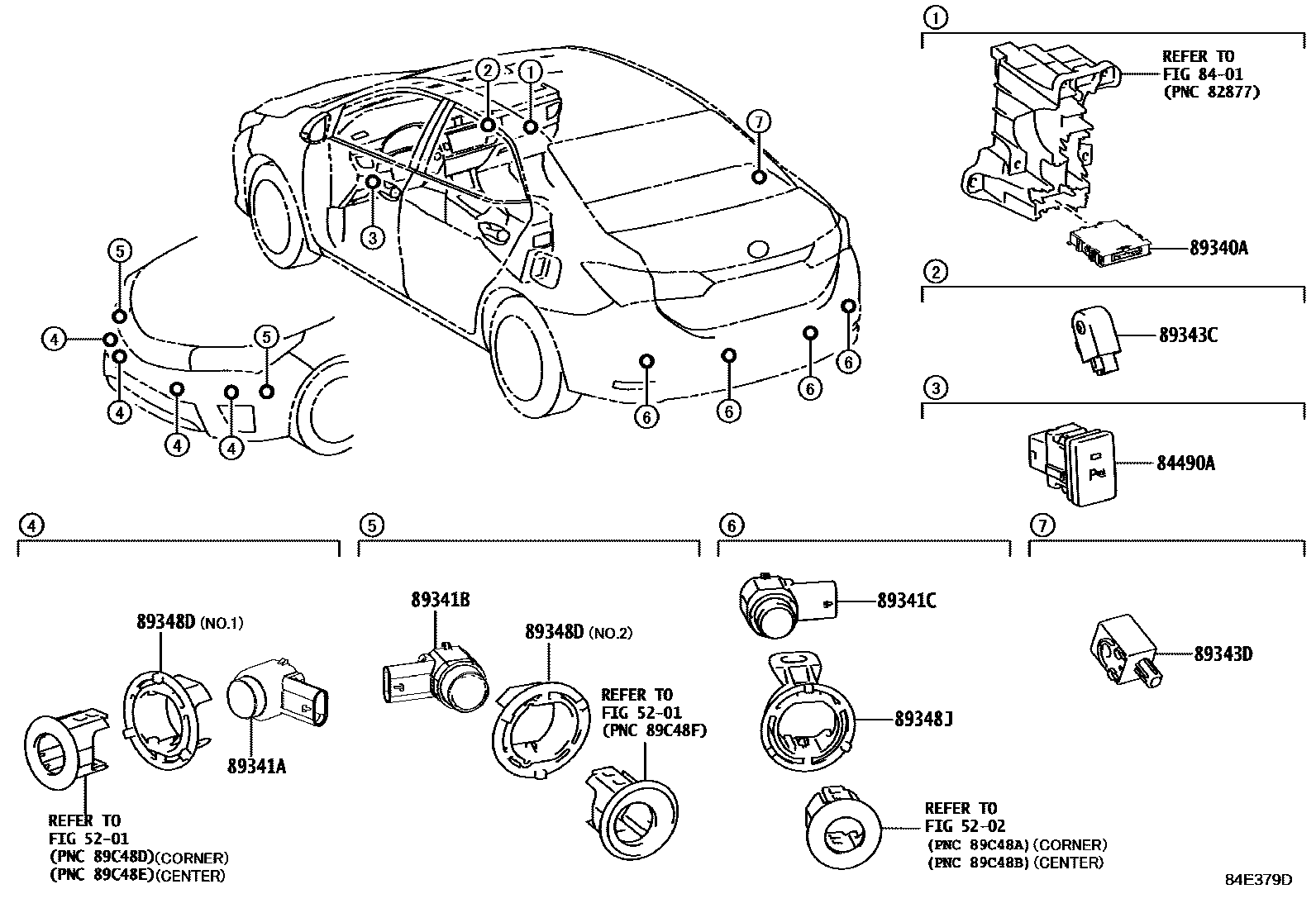

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
8401SWITCH & RELAY & COMPUTER
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITHOUT
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
89341ASENSOR, ULTRASONIC, NO.1
89341BSENSOR, ULTRASONIC, NO.2
89341CSENSOR, ULTRASONIC, NO.3
89343CBUZZER, CLEARANCE WARNING, NO.1
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
CLEARANCE & BACK SONAR-WITHOUT
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
89343DBUZZER, CLEARANCE WARNING, NO.2
CLEARANCE & BACK SONAR-WITHOUT
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
89348DCLIP, ULTRASONIC SENSOR
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
CLEARANCE & BACK SONAR-WITHOUT
89348JCLIP, ULTRASONIC SENSOR
12 parts on this diagram · 2 diagrams in section
