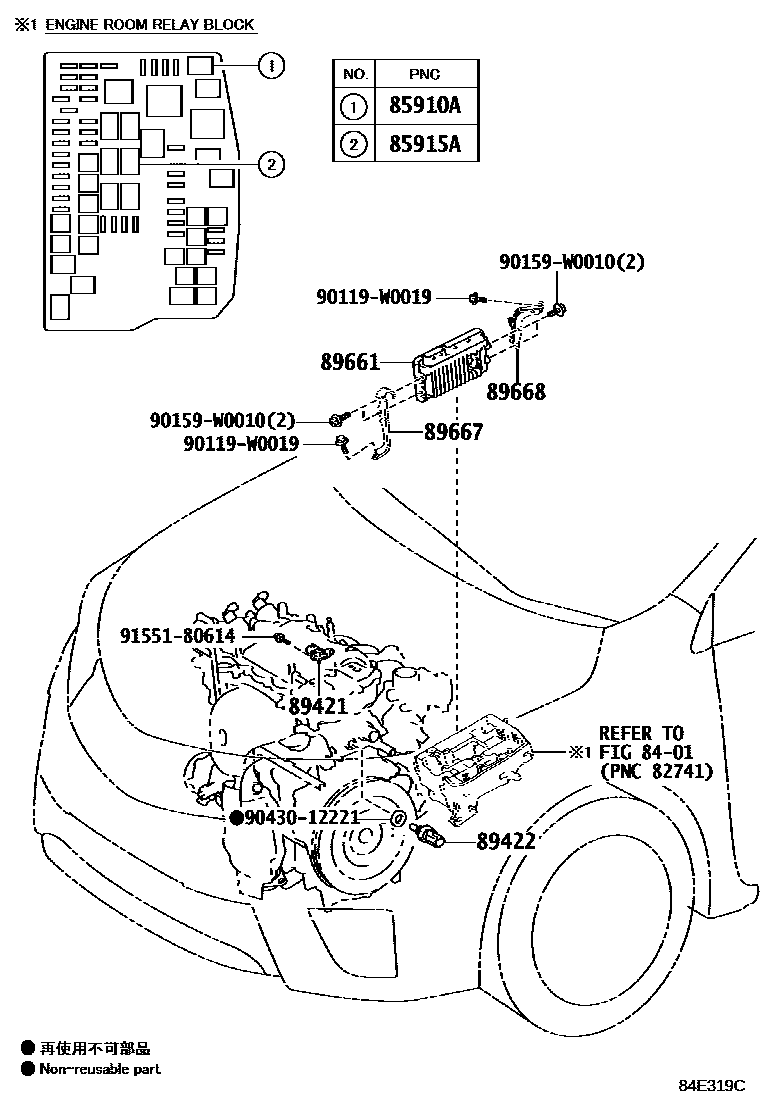

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87021iNRE180,ZRE18#..HTWC201306-201901

sub90987-02027

85915ARELAY, MAIN

main90080-87021iNRE180,ZRE18#201306-201901

sub90987-02027

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNRE180;ZRE181..HTWVM201306-201901

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNRE180,ZRE18#201306-201901

89661COMPUTER, ENGINE CONTROL

main89661-0Z730iZRE181..6F..HTWVM201505-201605

main89661-0Z810iNRE180201306-201309

sub89661-0Z811

main89661-0Z811iNRE180201310-201505

main89661-0Z840iZRE181..6F..HTWVM201306-201505

main89661-0Z870iZRE181..CVT..HTWVM201306-201412

sub89661-0Z871

main89661-0Z871iZRE181..CVT..HTWVM201412-201505

main89661-0ZC00iZRE181..6F..HTWC201306-201605

main89661-0ZC30iZRE181..CVT..HTWC201306-201405

sub89661-0ZC31

main89661-0ZC31iZRE181..CVT..HTWC201406-201605

main89661-0ZC70iZRE182201306-201405

main89661-0ZC71iZRE182201406-201506

sub89661-0ZC72

main89661-0ZC72iZRE182201507-201605

main89661-0ZL70iZRE181..CVT..HTWVM201505-201605

main89661-0ZM40iNRE180201505-201808

main89661-0ZP80iZRE181..6F..RUS201606-201901

main89661-0ZQ00iZRE181..CVT..RUS201606-201901

main89661-0ZQ20iZRE182201606-201901

main89661-0ZQ60iZRE181..6F..EUR201606-201806

main89661-0ZQ70iZRE181..RHD;ZRE181..CVT..(G,N)..EUR201606-201901

main89666-02860iZRE181..6F..EUR201806-201901

DENSO

sub89666-02861

main89666-02870iZRE181..RHD;ZRE181..CVT..(G,N)..EUR201806-201901

DENSO

sub89666-02871

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02300iNRE180,ZRE18#201306-201901

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02280iNRE180,ZRE18#201306-201901

90119W0019

main90119-W0019

90159W0010

main90159-W0010

9043012221

main90430-12221

9155180614

main91551-80614

12 parts on this diagram · 2 diagrams in section
