METER

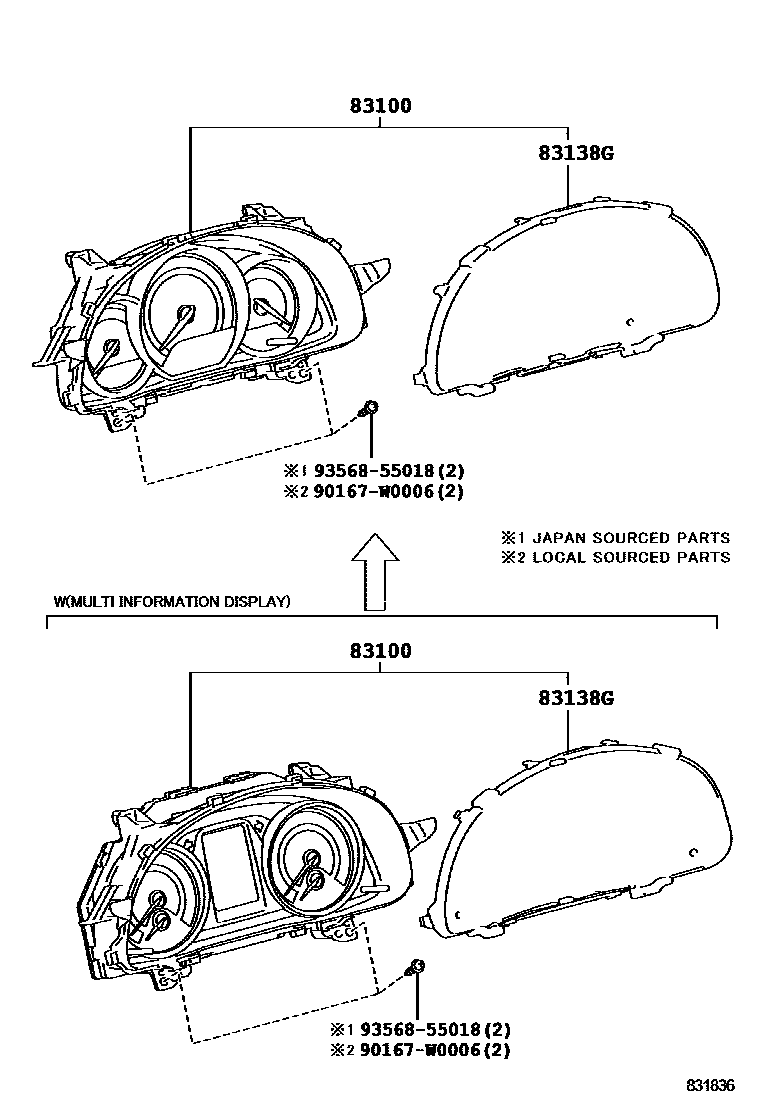

83100METER ASSY, COMBINATION

main83800-0ZM10i201306-201605

main83800-0ZM20supersedes 83800-F2290i201505-201605

main83800-0ZY70i201306-201605

main83800-F2220supersedes 83800-F2280i201505-201605

main83800-F2230i201306-201405

main83800-F2231i201406-201605

main83800-F2250i201306-201405

main83800-F2251i201406-201605

main83800-F2310i201306-201504

SPEEDOMETER-KM/H

main83800-F2311i201505-201605

main83800-F2340i201306-201505

main83800-F2780i201306-201405

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

main83800-F2781i201406-201605

main83800-F2790i201306-201605

main83800-F2L50i201606-201808

main83800-F2L60i201606-201808

main83800-F2L70i201606-201901

main83800-F2L80i201606-201710

main83800-F2L81i201711-201901

DENSO

main83800-F2L90i201606-201901

main83800-F2M60i201606-201808

main83800-F2M70i201606-201901

main83800-F2M80i201606-201901

main83800-F2N60supersedes 83800-F2M60i201606-201901

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2N70i201606-201901

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2N80i201606-201901

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2N90supersedes 83800-F2N00i201606-201901

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2261i201306-201402

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2262i201403-201505

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2271i201306-201402

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2272i201403-201605

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2331i201306-201406

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2333i201406-201504

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2334i201505-201605

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2361supersedes 83800-F2N00i201306-201402

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2362i201403-201505

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2380supersedes 83800-0ZM20i201306-201605

NON-NEW MAC SPEC COUNTRY&SPEED LIMITER CONTROL-WITH

main83800-F2390i201306-201605

NON-NEW MAC SPEC COUNTRY&SPEED LIMITER CONTROL-WITH

main83800-F2420i201306-201505

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SPEED LIMITER CONTROL-WITH

main83800-F2430i201306-201505

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SPEED LIMITER CONTROL-WITH

main83800-F2441i201306-201402

NON-NEW MAC SPEC COUNTRY&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEEDLIMITER CONTROL-WITH

main83800-F2442i201403-201605

NON-NEW MAC SPEC COUNTRY&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEEDLIMITER CONTROL-WITH

main83800-F2461supersedes 83800-F2M50i201306-201402

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEED LIMITER CONTROL-WIT

main83800-F2462i201403-201505

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEED LIMITER CONTROL-WIT

main83800-F2720i201306-201405

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SPEED LIMITER CONTROL-WITH

main83800-F2721i201406-201505

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&SPEED LIMITER CONTROL-WITH

main83800-F2740i201306-201505

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SPEED LIMITER CONTROL-WITH

main83800-F2871supersedes 83800-F2N00i201306-201402

TURKEY SPEC&SUB COLD AREA SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2872i201403-201505

TURKEY SPEC&SUB COLD AREA SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2881supersedes 83800-F2M90i201306-201406

TURKEY SPEC&SUB COLD AREA SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2883supersedes 83800-F2322i201505-201605

TURKEY SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2891supersedes 83800-F2M50i201306-201402

TURKEY SPEC&SUB COLD AREA SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2892i201505-201605

TURKEY SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2A31i201306-201402

TURKEY SPEC&SUB COLD AREA SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83800-F2A32i201505-201605

TURKEY SPEC&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

83138GGLASS, COMBINATION METER

main83852-0Z250i201606-201808

main83852-F2N60i201606-201901

SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)

main83852-0Z410i201306-201505

NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEED LIMITER CONTROL-WIT

90167W0006

main90167-W0006

9356855018

main93568-55018

4 parts on this diagram · 1 diagram in section
