FOG LAMP
5201
81210ALAMP ASSY, FOG, RH
main81210-02110iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH(WHITE) & COVER(GRAY ME. PAINTED)
FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)
81210BBULB, FOG LAMP
main90981-WD016iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
12V 19W,FRONT FOG LAMP-WITH
12V 19W,FRONT FOG LAMP-WITH(WHITE) & COVER(GRAY ME. PAINTED)
12V 19W
12V 19W,FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)
81220LAMP ASSY, FOG, LH
main81220-02110iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH(WHITE) & COVER(GRAY ME. PAINTED)
FRONT FOG LAMP-WITHOUT & FOG LAMP COVER(UNPAINTED)
9016750063
main90167-50063

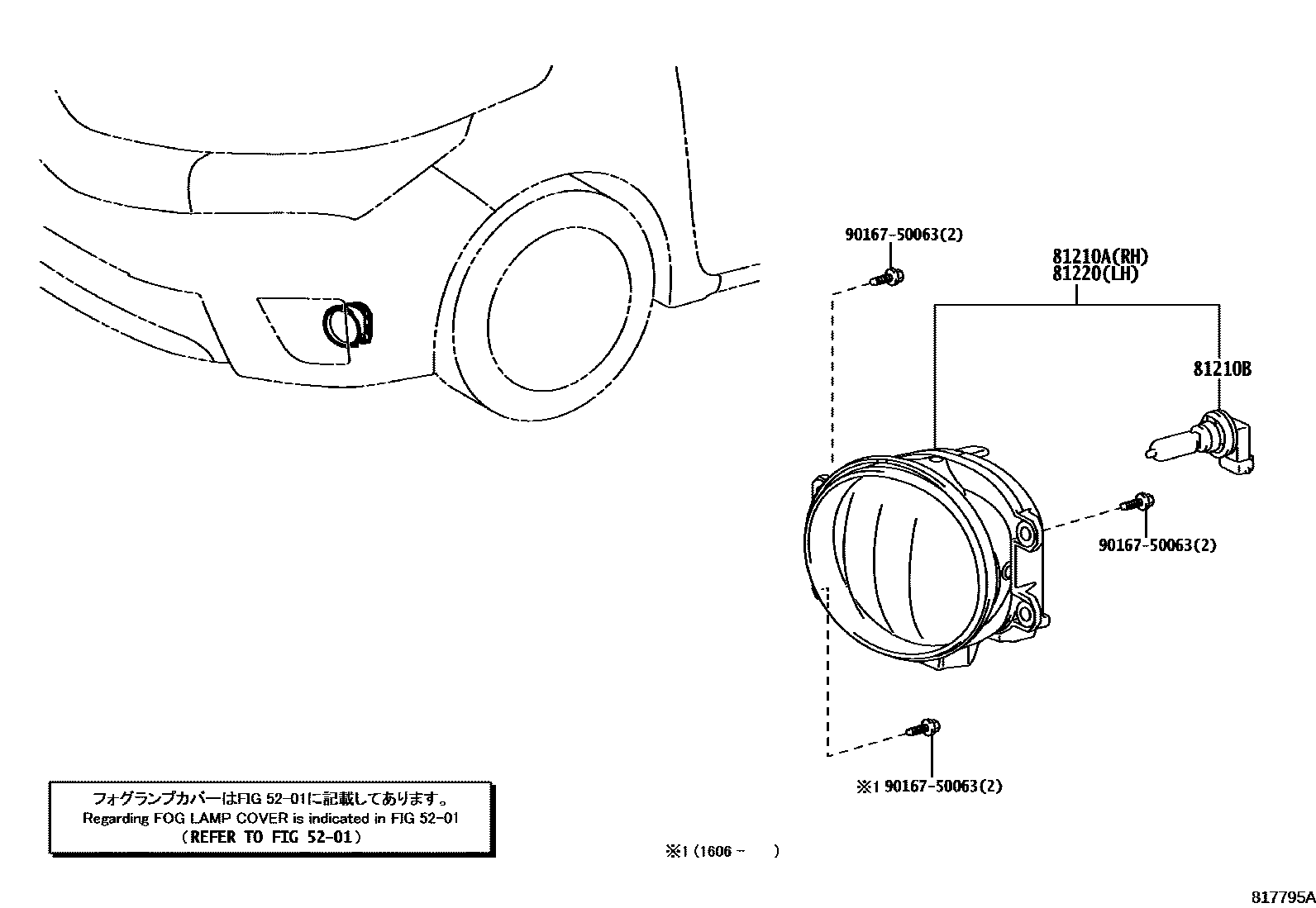

5 parts on this diagram · 1 diagram in section
