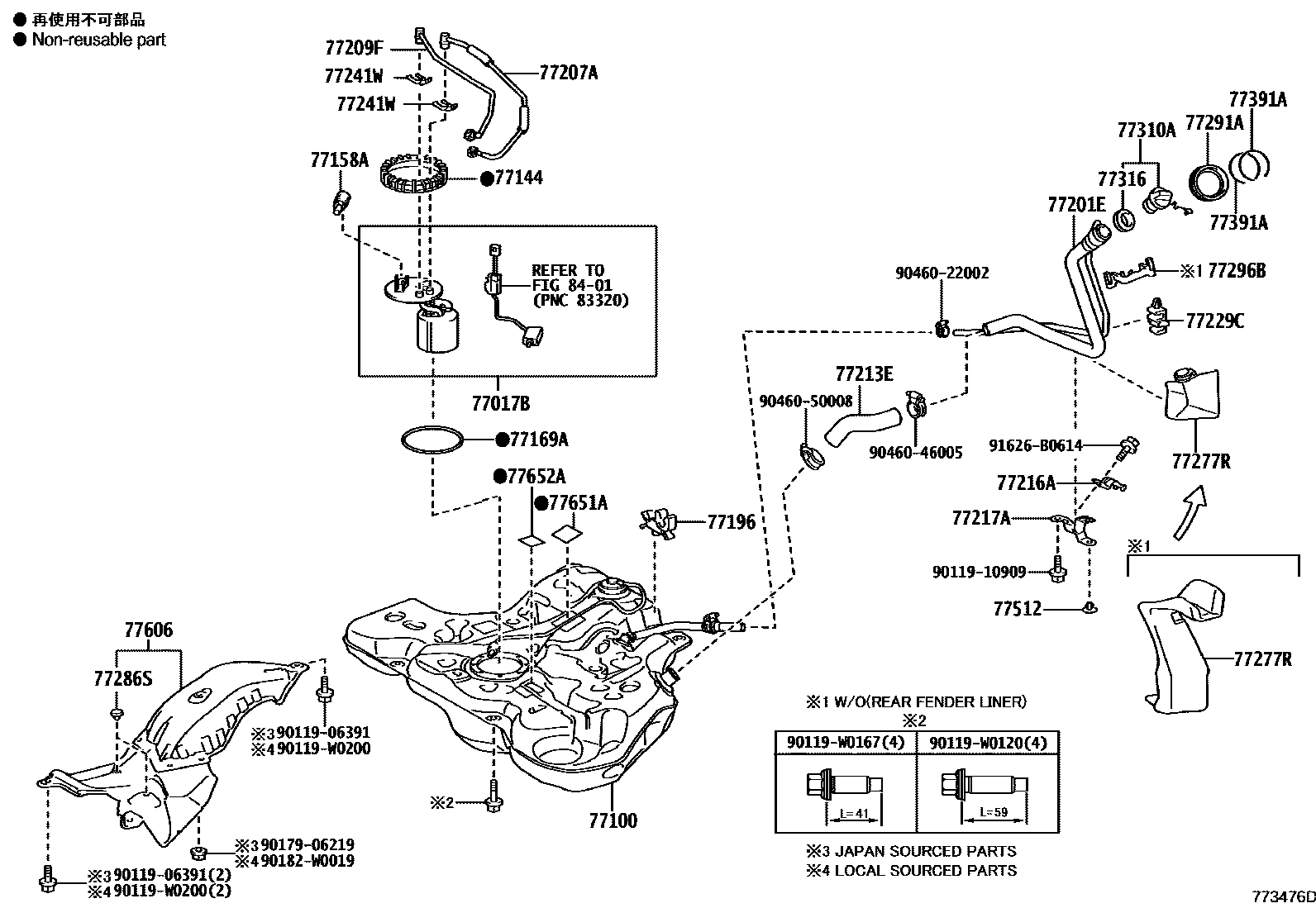

FUEL TANK & TUBE
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77169AGASKET, FUEL SUCTION TUBE SET
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77207ATUBE SUB-ASSY, FUEL RETURN
TURKEY SPEC
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
LIGHT GRADE
FENDER LINER-FRONT(WITH(FELT)) & REAR
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
LIGHT GRADE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
FENDER LINER-FRONT(WITH(FELT)) & REAR
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
8401
9011906391
main90119-06391
9011910909
main90119-10909
90119W0120
main90119-W0120
90119W0167
main90119-W0167
90119W0200
main90119-W0200
9017906219
main90179-06219
90182W0019
main90182-W0019
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
91626B0614
main91626-B0614
37 parts on this diagram · 5 diagrams in section
