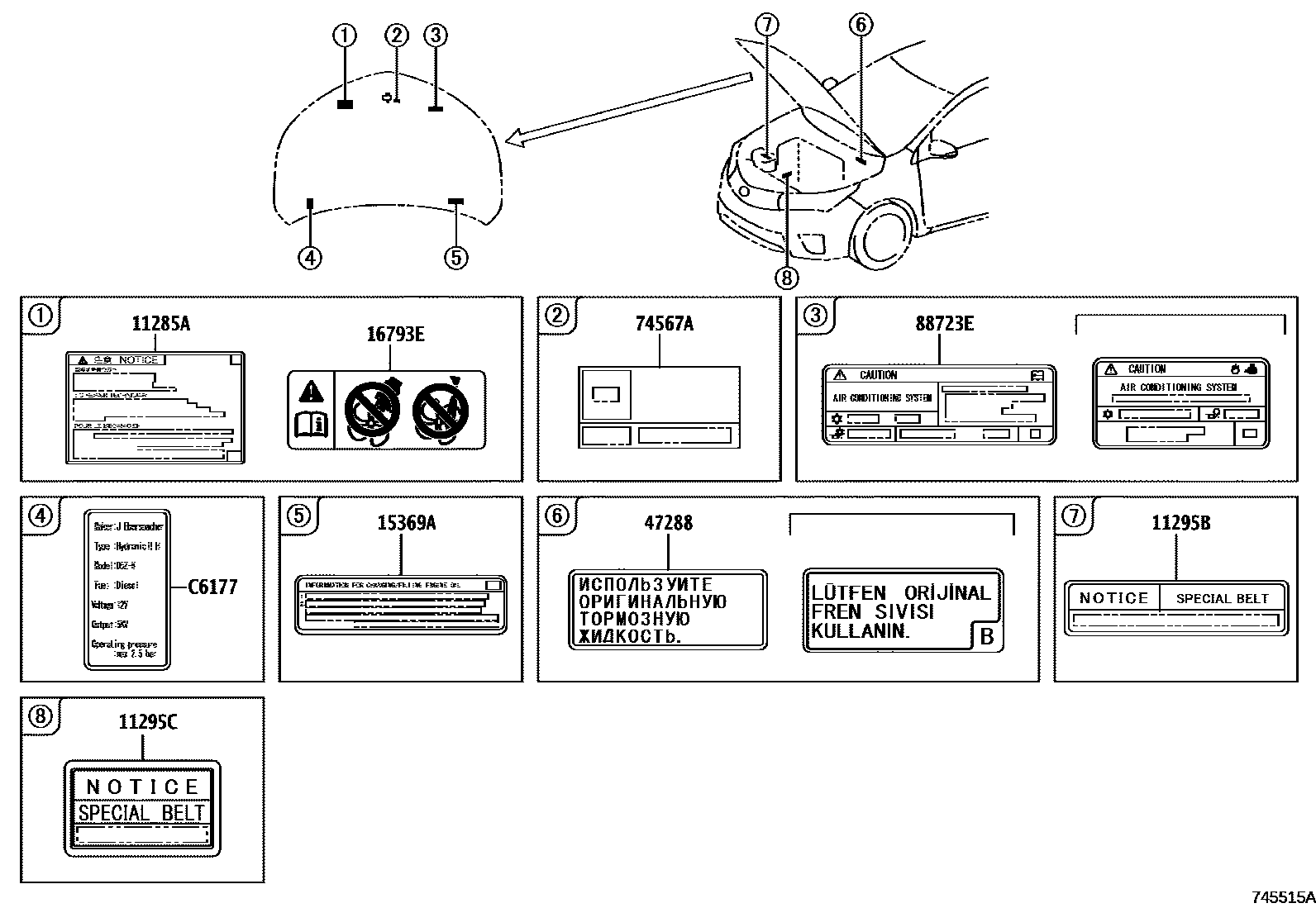

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR 0004 1TURKEY SPEC

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-33030i1N#..NDE180,NRE180201306-201605

main11285-33040i1NRFE..NRE180..LHD201306-201605

FINLAND SPEC&COLD AREA SPEC

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-33010i1NDTV..NDE180201306-201605

11295CLABEL, ENGINE SERVICE NOTICE, NO.2

main11295-33020i1NDTV..NDE180201606-201901

15369ALABEL, ENGINE OIL INFORMATION

main15369-0N010i1NDTV..NDE180201606-201901

(L)

main15369-33010i1NDTV..NDE180201306-201605

(J)

sub15369-11010

16793ELABEL, COOLING FAN CAUTION

47288LABEL, BRAKE FLUID NOTICE

main47288-52010iNRE180..RUS201606-201808

74567APLATE, E.C.E APPROVED NUMBER

main74567-25041iNDE180..LHD..6F201606-201711

TURKEY SPEC

main74567-52010iNDE180..6F201606-201901

88723ELABEL, COOLER SERVICE CAUTION

main88723-12190supersedes 88723-12190iNDE180,NRE180,ZRE181..LHD..D..EUR201606-201711

TURKEY SPEC

main88723-12270supersedes 88723-12270iNDE180..6FS201711-201901

AIR CONDITIONER-COOLER LESS

C6177LABEL, HEATER NOTICE

mainC617705010iNDE180..6FS201306-201505

COLD AREA SPEC

9 parts on this diagram · 4 diagrams in section
