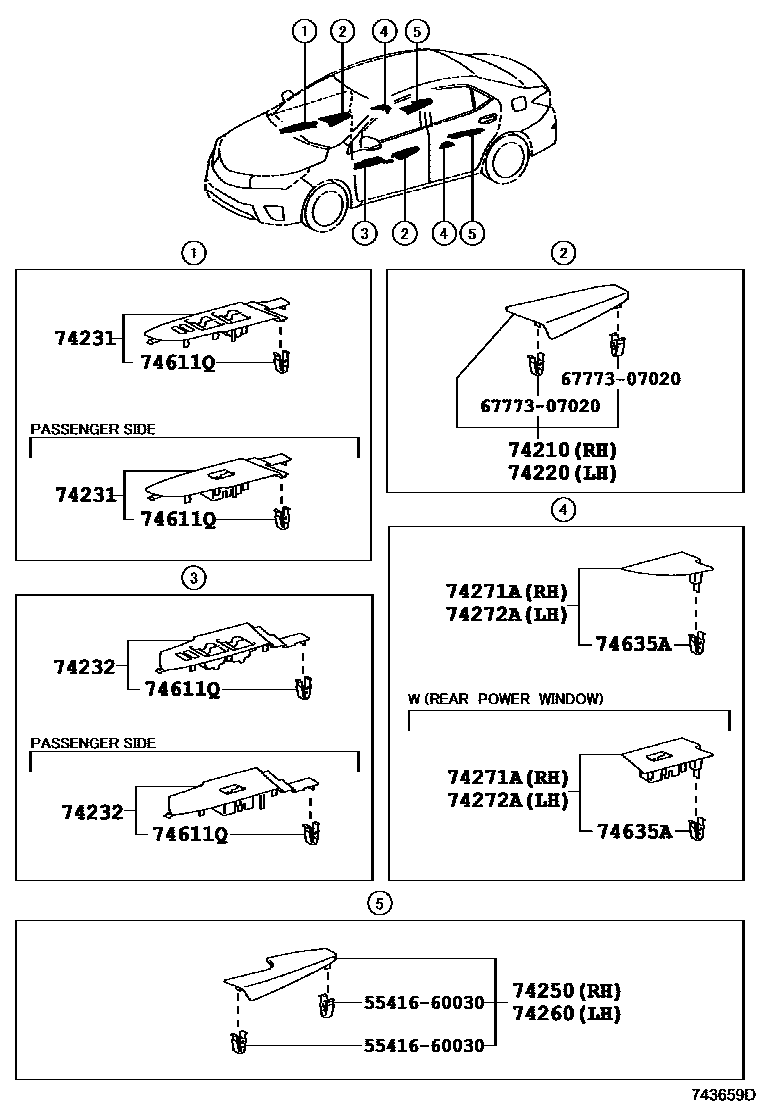

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21
EU BLACK,TRIM01,21
main74210-02300-C3iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
LIGHT GRADE&DOOR TRIM ORNAMENT PANEL-RESIN BLACK(LIGHT GRADE)&DOOR TRIM ORNAMENT-WITHOUT&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#,2#
DOOR TRIM ORNAMENT-SOFT LEATHER&SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#
74220ARMREST ASSY, FRONT, LH
SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21
EU BLACK,TRIM01,21
main74220-02270-C3iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
LIGHT GRADE&DOOR TRIM ORNAMENT PANEL-RESIN BLACK(LIGHT GRADE)&DOOR TRIM ORNAMENT-WITHOUT&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#,2#
DOOR TRIM ORNAMENT-SOFT LEATHER&SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
LIGHT GRADE&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM-RESIN BLACK(LIGHT GRADE)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#,2#
LIGHT GRADE&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM-RESIN BLACK(LIGHT GRADE)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),EU BLACK,TRIM0#,2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
EU BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
74250ARMREST ASSY, REAR RH
main74250-02250-C5iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
LIGHT GRADE&DOOR TRIM ORNAMENT PANEL-RESIN BLACK(LIGHT GRADE)&DOOR TRIM ORNAMENT-WITHOUT&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#,2#
EU BLACK,TRIM01,21
SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21
DOOR TRIM ORNAMENT-SOFT LEATHER&SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#
74260ARMREST ASSY, REAR LH
main74260-02220-C5iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201605
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
LIGHT GRADE&DOOR TRIM ORNAMENT PANEL-RESIN BLACK(LIGHT GRADE)&DOOR TRIM ORNAMENT-WITHOUT&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#,2#
EU BLACK,TRIM01,21
SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21
DOOR TRIM ORNAMENT-SOFT LEATHER&SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02620-C0supersedes 74271-02760-C0iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201505
BLACK,TRIM0#,2#
main74271-02620-C1supersedes 74271-02760-C1iNDE180,NRE180,ZRE18#..G,N;NDE180,NRE180,ZRE181..RHD201606-201901
EU BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02620-C0supersedes 74272-02760-C0iZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N201306-201505
BLACK,TRIM0#,2#
main74272-02620-C1supersedes 74272-02760-C1iNDE180,NRE180,ZRE18#..G,N;NDE180,NRE180,ZRE181..RHD201606-201901
EU BLACK,TRIM0#,2#
EU BLACK,TRIM0#,2#
74611QCLIP
74635ACLIP
5541660030STOPPER,LIGHT CONTROL SWITCH
main55416-60030
6777307020
main67773-07020
12 parts on this diagram · 2 diagrams in section
