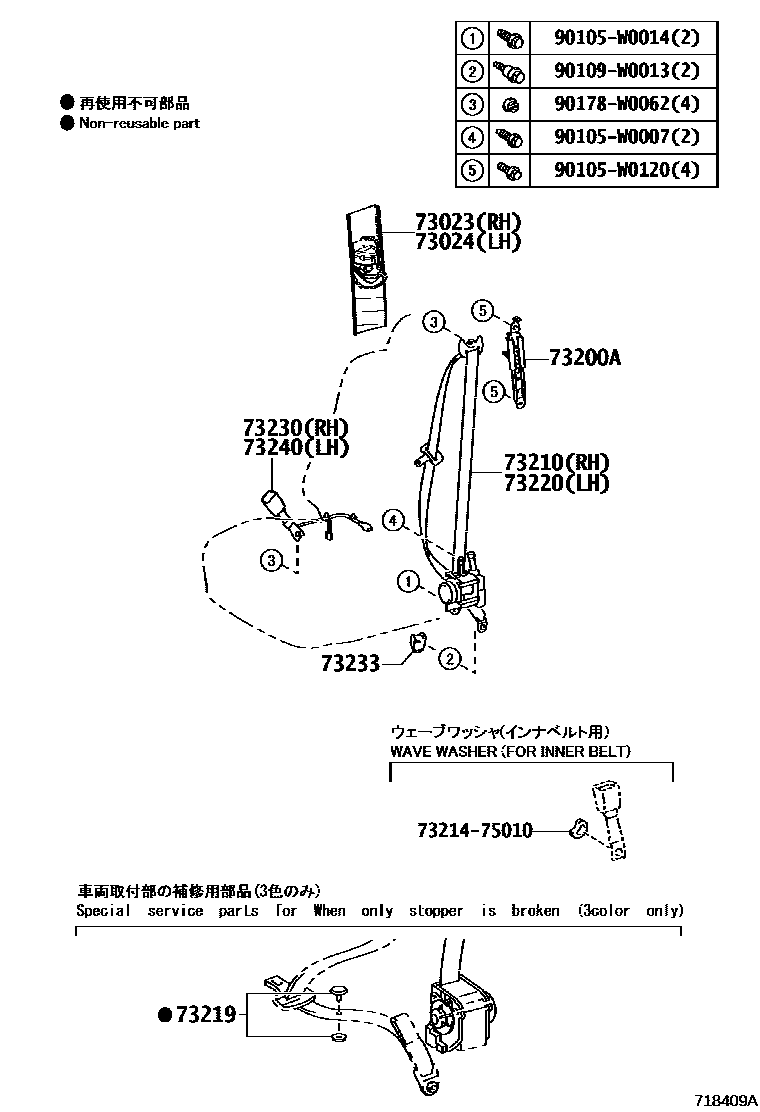

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02060-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

sub73023-02060

main73023-02060-A1iNDE180,NRE180,ZRE18#201606-201901

FLAXEN,TRIM0#

sub73023-02060

main73023-02060-B0iNDE180,NRE180,ZRE18#201306-201901

LT.GRAY,TRIM2#

sub73023-02060

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02060-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

sub73024-02060

main73024-02060-A1iNDE180,NRE180,ZRE18#201606-201901

FLAXEN,TRIM0#

sub73024-02060

main73024-02060-B0iNDE180,NRE180,ZRE18#201306-201901

LT.GRAY,TRIM2#

sub73024-02060

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100iNDE180,NRE180,ZRE18#201306-201605

main73200-F4010iNRE180201606-201901

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02590-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main73210-02590-A1iNDE180,ZRE18#201606-201901

FLAXEN,TRIM0#

main73210-02590-C0iNRE180201306-201901

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iNDE180,NRE180,ZRE18#201306-201901

BLACK

main73219-33020iNDE180,NRE180,ZRE18#201306-201901

GRAY

main73219-33030iNDE180,NRE180,ZRE18#201306-201901

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02540-A0iNDE180,NRE180,ZRE18#201306-201605

IVORY,TRIM0#

main73220-02540-A1iNRE180201606-201901

FLAXEN,TRIM0#

main73220-02540-C0iNRE180201306-201901

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02820-A0iNDE180,NRE180,ZRE18#..LHD201306-201605

IVORY,TRIM0#

main73230-02820-A1iNDE180,NRE180,ZRE18#..LHD201606-201901

FLAXEN,TRIM0#

main73230-02820-C0iNDE180,NRE180,ZRE18#..LHD201306-201901

BLACK,TRIM2#

main73230-02B10-A0iNDE180,NRE180,ZRE181..RHD201306-201605

IVORY,TRIM0#

main73230-02B10-A1iNDE180,NRE180,ZRE181..RHD201606-201901

FLAXEN,TRIM0#

main73230-02B10-C0iNDE180,NRE180,ZRE181..RHD201306-201901

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-C0iNDE180,NRE180,ZRE18#201306-201610

BLACK,TRIM0#,2#

main73233-02040-C1iNRE180201610-201901

EU BLACK,TRIM0#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02810-A0iNDE180,NRE180,ZRE18#..LHD201306-201605

IVORY,TRIM0#

main73230-02810-A1iNDE180,NRE180,ZRE18#..LHD201606-201901

FLAXEN,TRIM0#

main73230-02810-C0iNDE180,NRE180,ZRE18#..LHD201306-201901

BLACK,TRIM2#

main73230-02820-A0iNDE180,NRE180,ZRE181..RHD201306-201605

IVORY,TRIM0#

main73230-02820-A1iNDE180,NRE180,ZRE181..RHD201606-201901

FLAXEN,TRIM0#

main73230-02820-C0iNDE180,NRE180,ZRE181..RHD201306-201901

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

90109W0013

main90109-W0013

90178W0062

main90178-W0062

15 parts on this diagram · 2 diagrams in section
