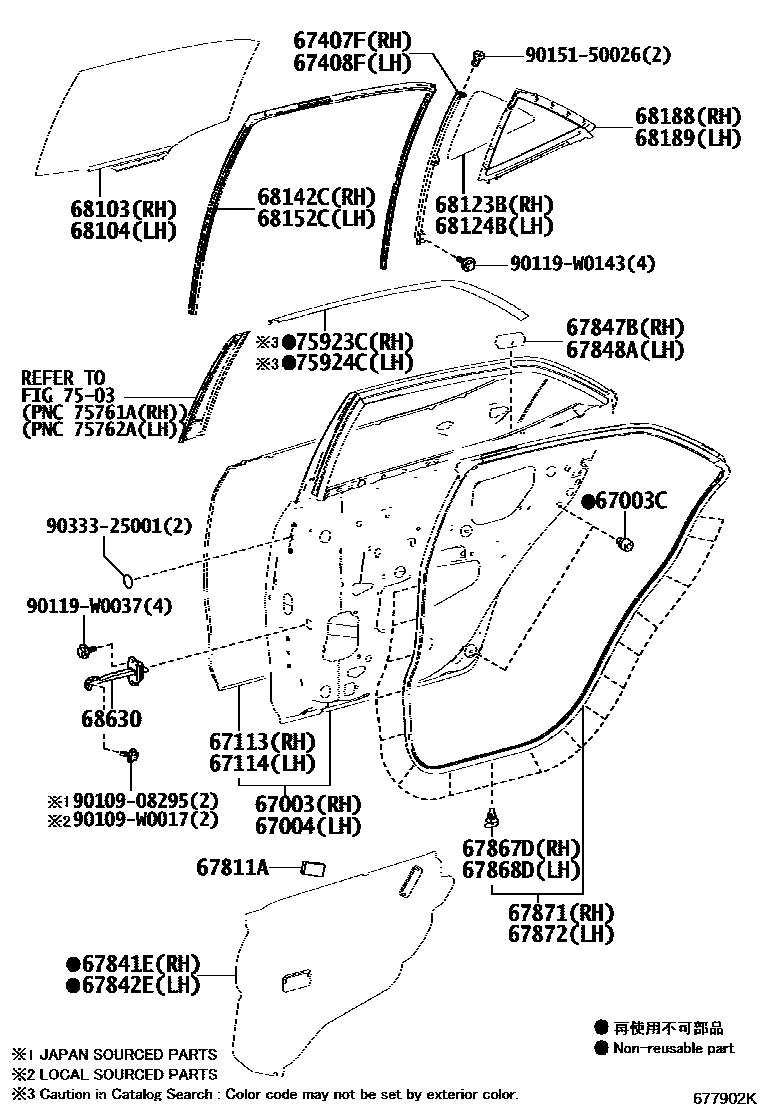

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02410iNRE180201306-201901

67003CCUSHION, REAR DOOR PANEL

main90541-09124iNDE180,NRE180,ZRE18#¥100201306-201901

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02410iNDE180,NRE180,ZRE18#201306-201901

67113PANEL, REAR DOOR, OUTER RH

main67113-02200iNDE180,NRE180,ZRE18#201306-201901

67114PANEL, REAR DOOR, OUTER LH

main67114-02200iNDE180,NRE180,ZRE18#201306-201901

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-12340iNDE180,NRE180,ZRE18#201306-201901

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-12340iNDE180,NRE180,ZRE18#201306-201901

67811APAD, REAR DOOR SILENCER

main67811-02300iNDE180,NRE180,ZRE18#201306-201901

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02270iNDE180,NRE180,ZRE18#201306-201901

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02250iNDE180,NRE180,ZRE18#201306-201901

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02040iNDE180,NRE180,ZRE18#201306-201901

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02040iNDE180,NRE180,ZRE18#201306-201901

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNDE180,NRE180,ZRE18#¥100201306-201901

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNDE180,NRE180,ZRE18#¥100201306-201901

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02240iNRE180201306-201901

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02240iNDE180,NRE180,ZRE18#201306-201901

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02380iZRE181..G..RUS;NDE180,ZRE181..N;NRE180,ZRE182..G,N;NDE180,NRE180,ZRE181..RHD201606-201901

BACK GLASS-PRIVACY

main68103-02410iZRE182;ZRE181..G..RUS;NDE180,NRE180,ZRE181..D,N201306-201901

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02380iNDE180,ZRE181..G..EUR201606-201901

BACK GLASS-PRIVACY

main68104-02410iNDE180,NRE180,ZRE18#201306-201901

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02300iNDE180,ZRE181..G..EUR201606-201901

BACK GLASS-PRIVACY

main68123-02330iNDE180,NRE180,ZRE18#201306-201901

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02300iZRE182;ZRE181..G..RUS;NDE180,ZRE181..N;NDE180,ZRE181..RHD201606-201901

BACK GLASS-PRIVACY

main68124-02330iNDE180,NRE180,ZRE18#201306-201901

68142CRUN, REAR DOOR GLASS, RH

main68142-02300iNDE180,NRE180,ZRE18#201306-201901

68152CRUN, REAR DOOR GLASS, LH

main68152-02300iNDE180,NRE180,ZRE18#201306-201901

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02170iNDE180,NRE180,ZRE18#201306-201901

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02170iNDE180,NRE180,ZRE18#201306-201901

68630CHECK ASSY, REAR DOOR

main68630-02250iNDE180,NRE180,ZRE18#201306-201712

sub68630-02251

main68630-02251iNRE180201801-201901

7503

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02230iNDE180,NRE180,ZRE18#201306-201901

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02230iNDE180,NRE180,ZRE18#201306-201901

9010908295

main90109-08295¥80

90109W0017

main90109-W0017¥60

90119W0037

main90119-W0037¥60

90119W0143

main90119-W0143

9015150026

main90151-50026¥60

9033325001

main90333-25001¥140

34 parts on this diagram · 2 diagrams in section
