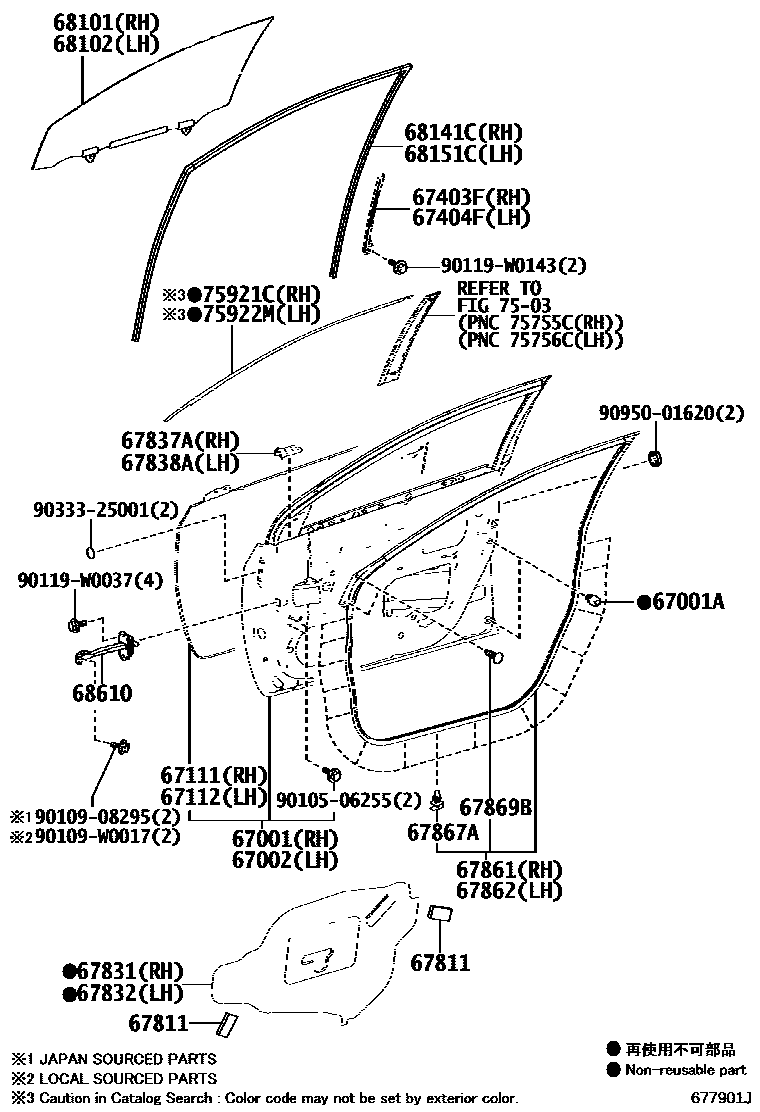

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02390iNRE180201606-201808

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNDE180,NRE180,ZRE18#201306-201605

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02390iNDE180,NRE180,ZRE18#201306-201605

67111PANEL, FRONT DOOR, OUTER RH

main67111-02230iNDE180,NRE180,ZRE18#201306-201605

67112PANEL, FRONT DOOR, OUTER LH

main67112-02230iNDE180,ZRE18#201606-201901

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12320iNDE180,NRE180,ZRE18#201306-201605

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12300iNRE180201606-201808

67811PAD, FRONT DOOR SILENCER

main67811-02300×4iNDE180,NRE180,ZRE18#201306-201605

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02330iNDE180,NRE180,ZRE18#201306-201605

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02330iNDE180,NRE180,ZRE18#201306-201605

67837ASEAL, FRONT DOOR VENT, RH

main67837-02050iNRE180201606-201808

67838ASEAL, FRONT DOOR VENT, LH

main67838-02020iNDE180,NRE180,ZRE18#201306-201605

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02270iNDE180,NRE180,ZRE18#201306-201605

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02270iNDE180,NRE180,ZRE18#201306-201605

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×30iNDE180,NRE180,ZRE18#201306-201605

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iNDE180,ZRE18#201606-201901

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02430iNDE180,NRE180,ZRE18#201306-201605

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02430iNDE180,NRE180,ZRE18#201606-201901

68141CRUN, FRONT DOOR GLASS, RH

main68141-02310iNDE180,NRE180,ZRE18#201306-201605

68151CRUN, FRONT DOOR GLASS, LH

main68151-02300iNDE180,NRE180,ZRE18#201306-201605

68610CHECK ASSY, FRONT DOOR

main68610-02240×2iNDE180,NRE180,ZRE18#201306-201605

main68610-02241×2iNDE180,NRE180,ZRE18#201609-201712

main68610-02242×2iNRE180201801-201808

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02160iNDE180,NRE180,ZRE18#201306-201605

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02160iNRE180201606-201808

9010506255

main90105-06255

9010908295

main90109-08295

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0143

main90119-W0143

9033325001

main90333-25001

9095001620

main90950-01620

31 parts on this diagram · 2 diagrams in section
