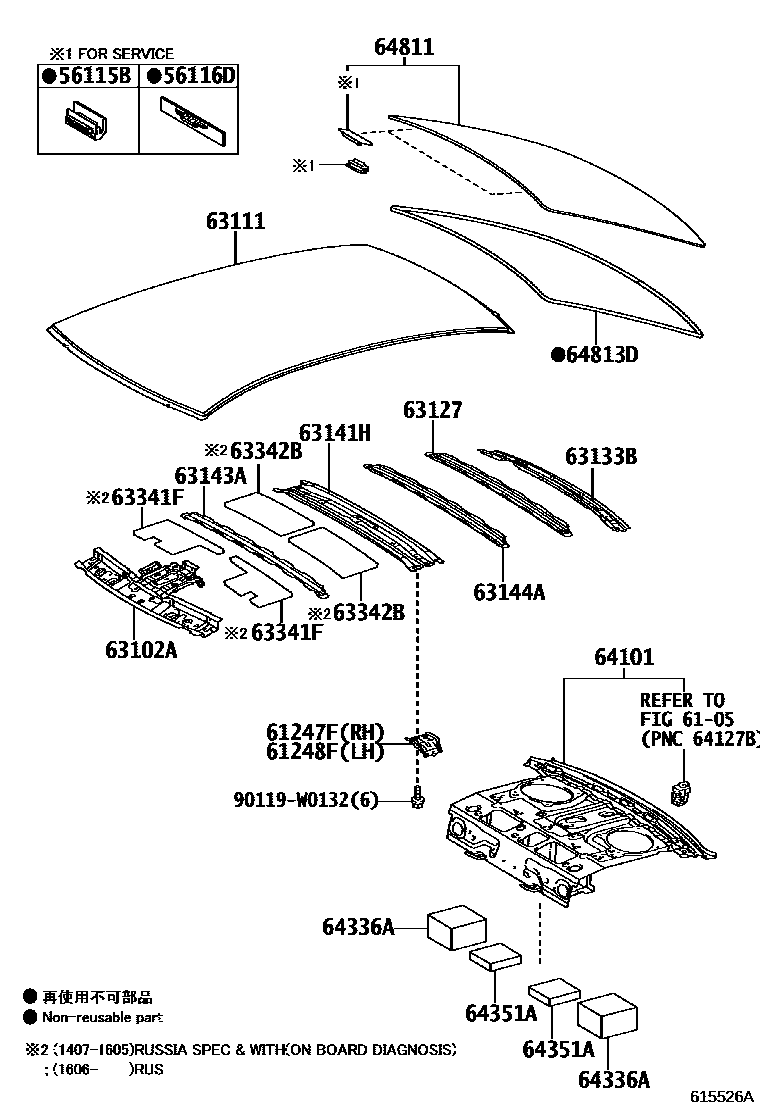

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
6105
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63111PANEL, ROOF
MAYDAY SYSTEM-WITHOUT
63127REINFORCEMENT, ROOF PANEL, NO.5
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143AREINFORCEMENT, ROOF PANEL
63144AREINFORCEMENT, ROOF PANEL, NO.4
63341FPAD, ROOF SILENCER, NO.1
LH
RH
63342BPAD, ROOF SILENCER, NO.2
64101PANEL SUB-ASSY, UPPER BACK
64336APAD, PACKAGE TRAY TRIM SILENCER, SIDE
64351APAD, PACKAGE TRAY TRIM, NO.1
64811GLASS, BACK WINDOW
COLD AREA SPEC
BACK GLASS-PRIVACY
64813DDAM, BACK WINDOW GLASS ADHESIVE
*P,L=3691
90119W0132
main90119-W0132
20 parts on this diagram · 1 diagram in section
