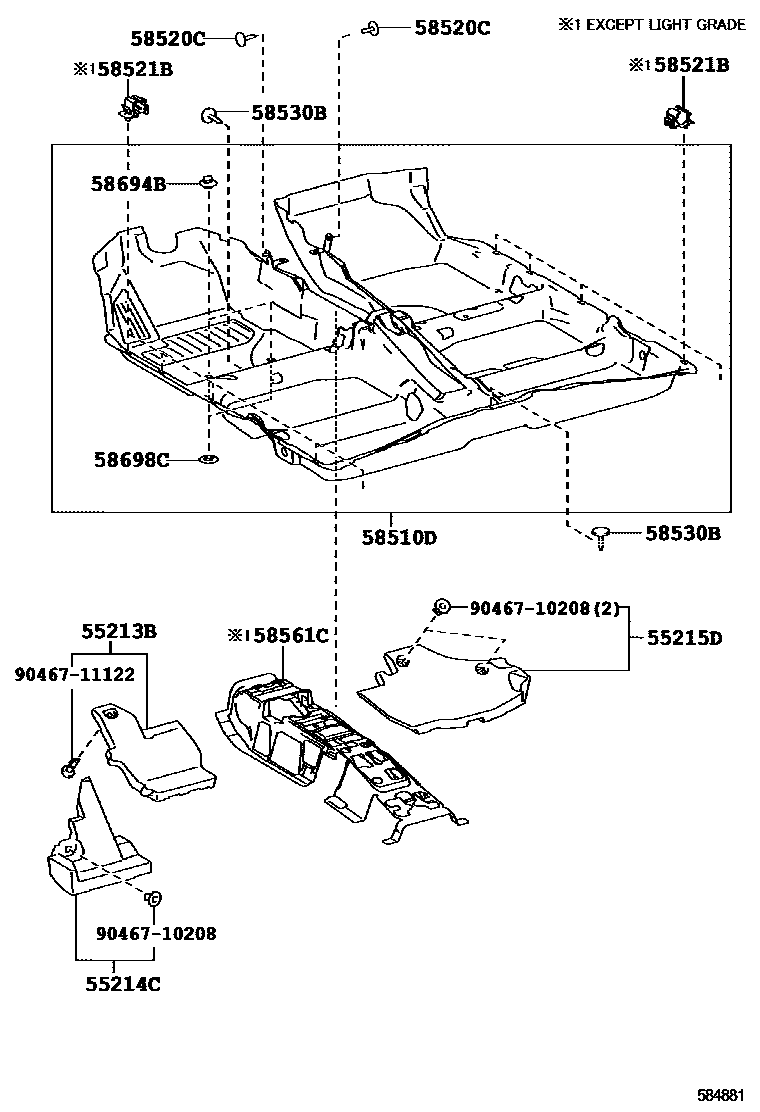

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT 0003 1FLOOR CARPET 0004 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02220iNRE180..RHD201606-201808

main55213-02250iNDE180,NRE180,ZRE18#..LHD201306-201605

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02010iNRE180..LHD201606-201808

main55214-02020iNRE180..RHD201606-201808

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02010iNDE180,NRE180,ZRE18#..LHD201306-201605

main55215-02020iNRE180..RHD201606-201808

58510DCARPET ASSY, FLOOR, FRONT

main58510-02J80-C3iNDE180,NRE180,ZRE18#..LHD201505-201605

EU BLACK,TRIM0#,2#

main58510-02K00-C1iNDE180,NRE180,ZRE181..RHD201306-201403

BLACK,TRIM0#,2#

main58510-02K00-C2iNDE180,NRE180,ZRE181..RHD201403-201505

BLACK,TRIM0#,2#

main58510-02K00-C3iNRE180..RHD201606-201808

EU BLACK,TRIM0#,2#

main58510-02L30-C3supersedes 58510-02J80-C3iNRE180..LHD..EUR201606-201808

COLD AREA SPEC,EU BLACK,TRIM0#,2#

main58510-02L30-C1supersedes 58510-02J80-C1iNDE180,NRE180,ZRE18#..LHD201306-201403

COLD AREA SPEC,BLACK,TRIM0#,2#

main58510-02L30-C2supersedes 58510-02J80-C2iNDE180,NRE180,ZRE18#..LHD201403-201505

COLD AREA SPEC,BLACK,TRIM0#,2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-B3×2iNDE180,NRE180,ZRE18#201606-201701

DK.GRAY

main90467-W0006-C2×2iNRE180201701-201808

EU BLACK

58521BHOOK, FLOOR CARPET

main58521-02110×10iNDE180,ZRE18#201606-201901

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×2iNDE180,NRE180,ZRE18#201306-201605

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02230iNDE180,ZRE181..EUR201606-201901

main58561-02240iNRE180..LHD..EUR201606-201808

COLD AREA SPEC

58694BPLATE, MAT SET, UPPER

main58694-76010×2iNDE180,NRE180,ZRE18#201306-201605

58698CPLATE, MAT SET, LOWER

main58698-76010×2iNDE180,NRE180,ZRE18#201306-201605

9046710208

main90467-10208

9046711122

main90467-11122

12 parts on this diagram · 4 diagrams in section
