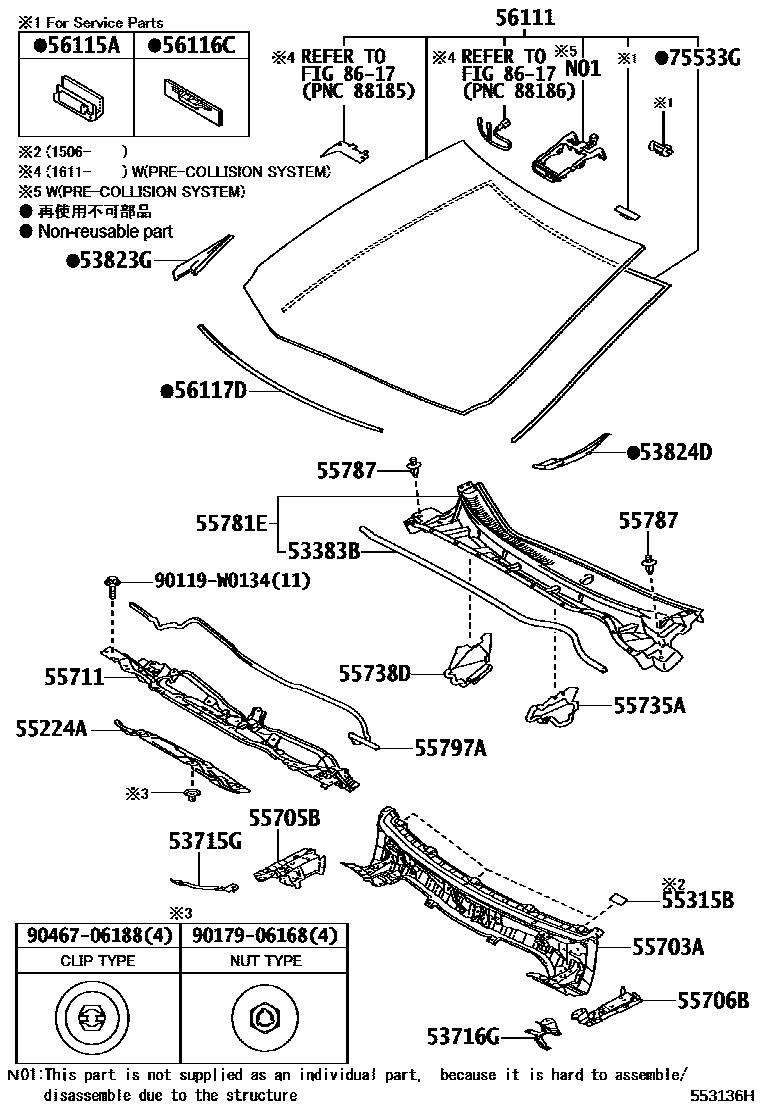

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02200iNDE180,ZRE18#201606-201901

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-02030iNDE180,ZRE18#201606-201901

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-02040iNRE180201606-201808

53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02090iNDE180,ZRE18#..LHD201606-201901

main53823-02120iNDE180,NRE180,ZRE181..RHD201306-201605

53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02090iNDE180,NRE180,ZRE181..RHD201306-201605

main53824-02120iNDE180,ZRE18#..LHD201606-201901

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02080supersedes 55224-02080iNDE180..6F201306-201505

LIGHT GRADE

main55224-02120iNDE180..6FS201711-201901

55315BSPACER, INSTRUMENT PANEL, NO.1

main55315-02450×3iNRE180201611-201808

main55315-05050×3iNDE180,NRE180,ZRE18#201506-201605

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-02390iNDE180,ZRE18#..LHD201606-201901

main55703-02470iNDE180,NRE180,ZRE181..RHD201306-201605

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02140iNDE180,NRE180,ZRE18#201306-201605

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02140iNRE180201606-201808

55711PANEL, COWL TOP, OUTER

main55701-02390iNDE180,NRE180,ZRE18#..LHD201306-201409

main55701-02391iNRE180..LHD201606-201808

main55701-02400iNDE180,NRE180,ZRE181..RHD201306-201409

main55701-02401iNRE180..RHD201606-201808

main55701-02410iZRE18#..HTWC201306-201409

COLD AREA SPEC&WINDSHIELD DEICER-WITH

main55701-02411iZRE181..G..EUR201606-201901

WINDSHIELD DEICER-WITH

55735APLATE, WATER GUARD, LH

main55734-02260iNRE180201606-201808

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-02150iNDE180,NRE180,ZRE18#..LHD201306-201605

main55737-02160iNRE180..RHD201606-201808

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02590iNDE180,ZRE181..LHD..EUR201606-201901

main55708-02600iNRE180..RHD201606-201808

main55708-02610supersedes 55708-02590iNRE180..RUS201606-201808

COLD AREA SPEC

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0×2iNDE180,NRE180,ZRE18#201606-201703

BLACK

sub90467-07041

sub90467-A0016

main90467-07076-C7×2iNRE180201703-201808

BLACK

sub90467-07041

sub90467-A0016

55797ASEAL, COWL WATER EXTRACT

main55797-02120iNDE180,ZRE18#201606-201901

56111GLASS, WINDSHIELD

main56101-02D10iNDE180,NRE180,ZRE18#..LHD..(D,N)201606-201901

main56101-02D20iZRE181..G..EUR201606-201901

INTERMITTENT WIPER-WITH(AUTO)

main56101-02D70iNRE180,ZRE18#..N..RUS201606-201901

WINDSHIELD DEICER-WITH

main56101-02D80iZRE181..HTWC201508-201605

REGULATION COMPLIANCE LABEL & NAME PLATE-ALGERIA LABEL&WINDSHIELD DEICER-WITH

main56101-02K90iZRE181..G..EUR201606-201901

LIGHT GRADE&COLD AREA SPEC&HEADLAMP-HALOGEN&AIR CONDITIONER-COOLER LESS

main56101-02L00iZRE181..N..EUR201606-201610

PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(*AHB)

sub56101-0Z030

main56101-02L10iZRE181..G..EUR201606-201610

PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(*AHB)

sub56101-0Z040

main56101-02L20supersedes 56101-02D30iNDE180,NRE180,ZRE181..RHD201606-201610

PRE-COLLISION SYSTEM-WITH

main56101-02S00iZRE181..N..EUR201611-201901

PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(*AHB)

main56101-02S10iZRE181..G..EUR201611-201901

PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(*AHB)

main56101-02S20supersedes 56101-02D30iNDE180,NRE180,ZRE181..RHD201611-201901

PRE-COLLISION SYSTEM-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iNDE180,NRE180,ZRE18#201306-201605

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNDE180,NRE180,ZRE18#201306-201605

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-50140iZRE182201306-201605

*D,L=1262.5,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-WITH(AUTO)

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02150iNDE180,NRE180,ZRE18#201306-201605

8617

90119W0134

main90119-W0134

9017906168

main90179-06168

9046706188

main90467-06188

25 parts on this diagram · 2 diagrams in section
