HOOD & FRONT FENDER

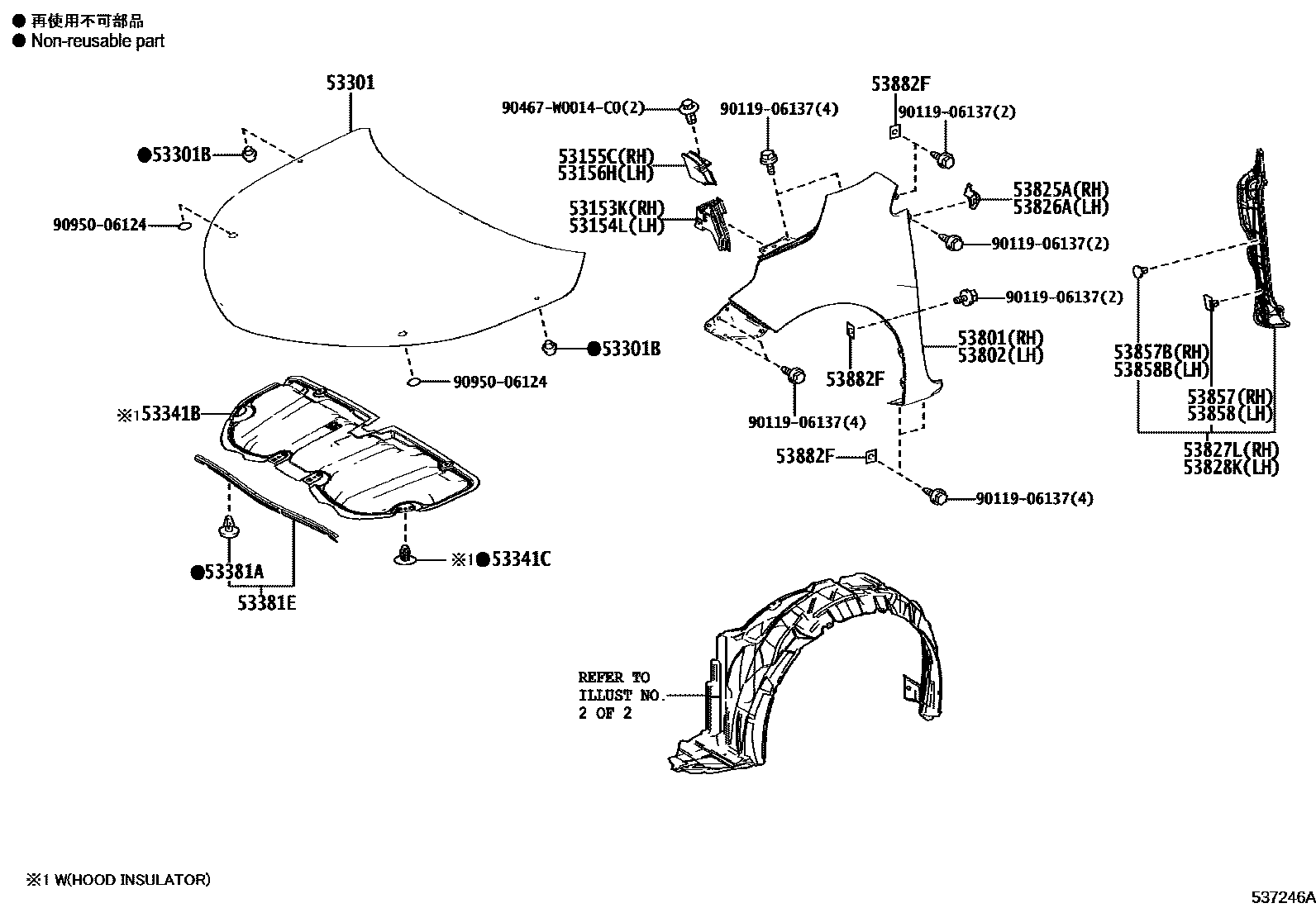

Parts diagram

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02040i201306-201605

LIGHT GRADE

main53153-02040i201606-201901

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02040i201306-201605

LIGHT GRADE

main53154-02040i201606-201901

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-02060i201306-201605

LIGHT GRADE

main53155-02060i201606-201901

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-02050i201306-201605

LIGHT GRADE

main53156-02050i201606-201901

53301HOOD SUB-ASSY

main53301-02300i201306-201901

53301BCUSHION, HOOD BUMPER

main90541-09117i¥100201306-201901

53341BINSULATOR, HOOD

main53341-02280i201306-201901

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050i¥120201306-201901

(J)

main90467-W0003i¥130201306-201901

(L)

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011i¥100201606-201901

main90467-A0009i201306-201605

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-02200i201306-201901

53801FENDER SUB-ASSY, FRONT RH

main53801-02200i201306-201901

53802FENDER SUB-ASSY, FRONT LH

main53802-02190i201306-201901

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02120i201306-201901

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02120i¥270201306-201901

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02210i201306-201901

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02200i201306-201901

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010i¥100201306-201901

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011i¥60201306-201901

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010i¥100201306-201901

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011i¥60201306-201901

53882FSEAL, FRONT FENDER

main53882-33060i¥60201306-201901

9011906137

main90119-06137¥70

90467W0014C0

main90467-W0014C0

9095006124

main90950-06124¥90

24 parts on this diagram · 2 diagrams in section
