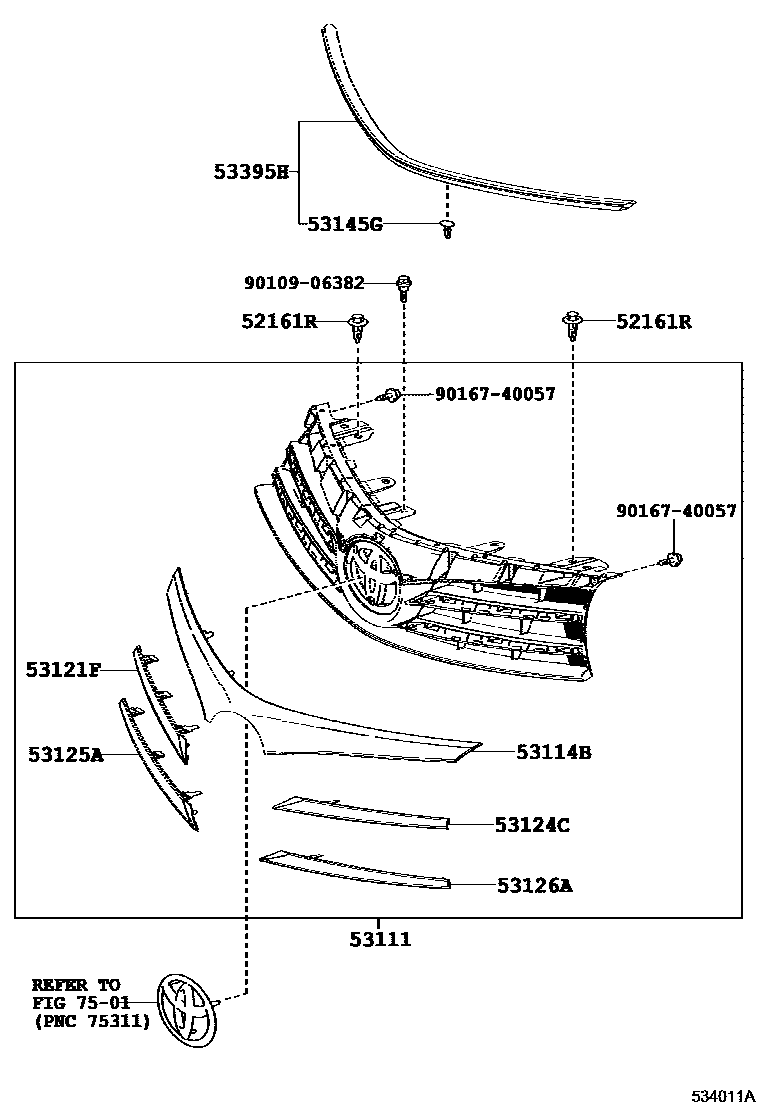

RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-02030×2iNRE180201606-201808

53111GRILLE, RADIATOR

main53100-02590iNDE180,NRE180,ZRE18#201306-201605

PLATED

sub53111-02790

sub90167-40057

main53100-02690iNRE180..EUR201606-201808

PLATED

main53100-02700iNRE180..RUS201606-201808

PLATED

main53100-02610iZRE182..N;NRE180,ZRE181..LHD..HTWC201306-201605

PLATED,RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)

sub53111-02790

sub90167-40057

53114BGRILLE, RADIATOR, UPPER

main53114-02270iNDE180,NRE180,ZRE18#201306-201605

main53114-02290iZRE182..N;NRE180,ZRE181..LHD..HTWC201306-201605

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02180iNDE180,NRE180,ZRE18#201306-201605

main53121-02330iNDE180,ZRE18#201606-201901

main53121-02190iZRE182..N;NRE180,ZRE181..LHD..HTWC201306-201605

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02170iNDE180,NRE180,ZRE18#201306-201605

main53124-02320iNRE180201606-201808

main53124-02180iZRE182..N;NRE180,ZRE181..LHD..HTWC201306-201605

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-02040iNDE180,NRE180,ZRE18#201306-201605

main53125-02050iZRE182..N;NRE180,ZRE181..LHD..HTWC201306-201605

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-02060iNDE180,NRE180,ZRE18#201306-201605

main53126-02070iZRE182..N;NRE180,ZRE181..LHD..HTWC201306-201605

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)

53145GCLIP, RADIATOR GRILLE

main53145-60030×9iNDE180,NRE180,ZRE18#201306-201605

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-02100iNDE180,NRE180,ZRE18#201306-201605

7501

9010906382

main90109-06382

9016740057

main90167-40057

12 parts on this diagram · 2 diagrams in section
