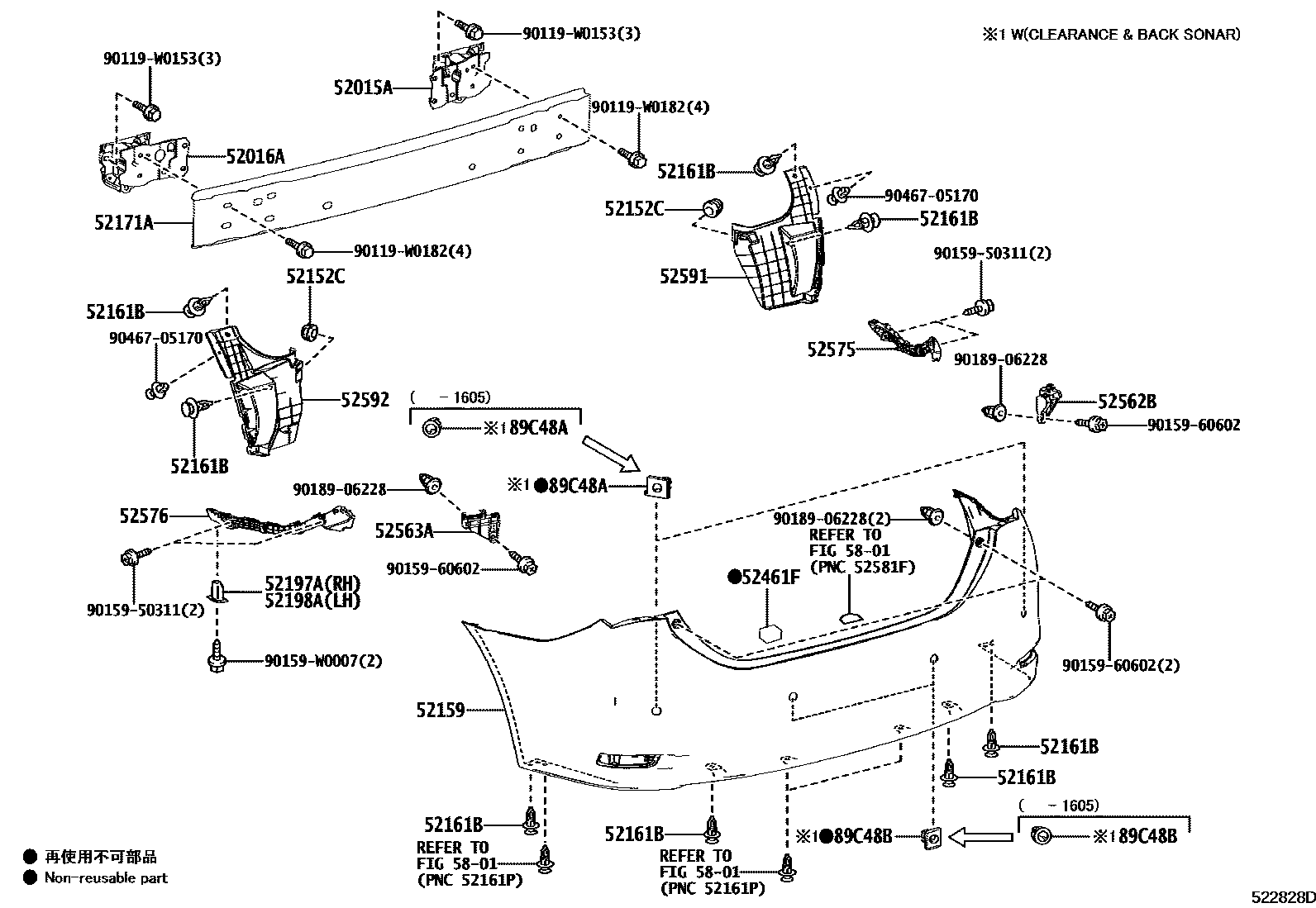

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52152CCLIP, REAR BUMPER SIDE
BLACK
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,MUD GUARD-WITH&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.
PAINT REQ.,MUD GUARD-WITH&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
PAINT REQ.,MUD GUARD-WITH&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52461FPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
5801
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
CLEARANCE & BACK SONAR-WITHOUT
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
CLEARANCE & BACK SONAR-WITHOUT
90119W0153
main90119-W0153
90119W0182
main90119-W0182
9015950311
9015960602
90159W0007
9018906228
9046705170
25 parts on this diagram · 1 diagram in section
