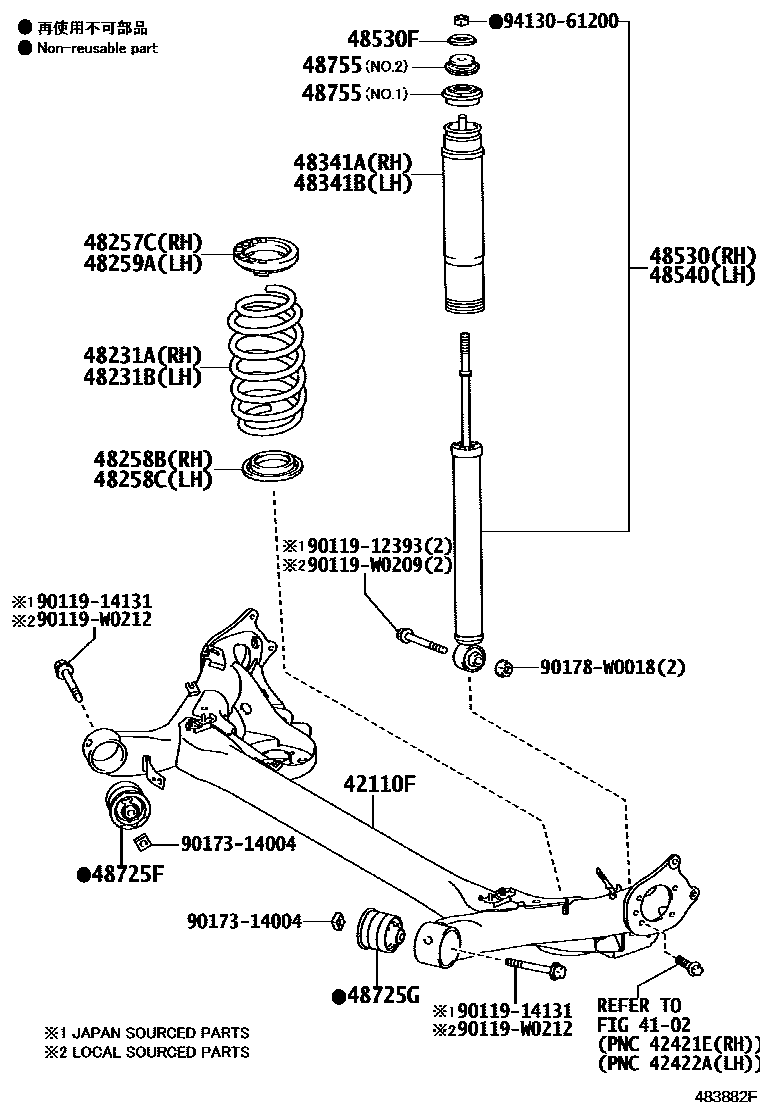

REAR SPRING & SHOCK ABSORBER

4102

42110FBEAM ASSY, REAR AXLE

main42101-02270iNRE180201606-201808

main42101-02480iNDE180,NRE180,ZRE18#201306-201605

48231ASPRING, COIL, REAR RH

main48231-02D70iNDE180,NRE180,ZRE18#201306-201406

main48231-02J50iNDE180,NRE180,ZRE181..EUR201606-201706

main48231-02J51iNDE180,ZRE181..EUR201707-201901

main48231-02J60iZRE181..6F..D..EUR;ZRE181..LHD..CVT..EUR201606-201706

ROUGH ROAD AREA SPEC

main48231-02J61iZRE18#..RUS201707-201901

ROUGH ROAD AREA SPEC

main48231-02C20iZRE181..6F..D..EUR;ZRE181..LHD..CVT..EUR201606-201703

LIGHT GRADE&ROUGH ROAD AREA SPEC

main48231-02C21iZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR201704-201901

LIGHT GRADE&ROUGH ROAD AREA SPEC

main48231-02D80iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201405

ROUGH ROAD AREA SPEC

48231BSPRING, COIL, REAR LH

main48231-02D70iNDE180,NRE180,ZRE18#201306-201406

main48231-02J50iNDE180,NRE180,ZRE18#201406-201605

main48231-02J51iNDE180,ZRE181..EUR201707-201901

main48231-02J60iZRE181..6F..D..EUR;ZRE181..LHD..CVT..EUR201606-201706

ROUGH ROAD AREA SPEC

main48231-02J61iNRE180..RUS201707-201808

main48231-02C20iZRE181..6F..D..EUR;ZRE181..LHD..CVT..EUR201606-201703

LIGHT GRADE&ROUGH ROAD AREA SPEC

main48231-02C21iZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR201704-201901

LIGHT GRADE&ROUGH ROAD AREA SPEC

main48231-02D80iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201405

ROUGH ROAD AREA SPEC

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D010iNDE180,NRE180,ZRE18#201306-201605

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D050iNDE180,NRE180,ZRE18#201306-201605

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D050iNDE180,NRE180,ZRE18#201306-201605

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D010iNDE180,ZRE18#201606-201901

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-02080iNDE180,NRE180,ZRE18#201306-201605

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-02080iNDE180,ZRE18#201606-201901

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09Y20iNDE180,NRE180,ZRE18#201306-201605

MARK 48530-02B90

main48530-8Z044iNRE180..EUR201606-201808

MARK 48530-02F70

main48530-8Z045iZRE18#..RUS201606-201901

MARK 48530-02F80,ROUGH ROAD AREA SPEC

main48530-09W70iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201412

MARK 48530-02A70,ROUGH ROAD AREA SPEC

sub48530-09W72

main48530-09W71iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201412-201605

MARK 48530-02F50,ROUGH ROAD AREA SPEC

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90948-02159×2iNDE180,NRE180,ZRE18#201306-201605

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09Y20iNDE180,NRE180,ZRE18#201306-201605

MARK 48530-02B90

main48530-8Z044iNDE180,ZRE181..EUR201606-201901

MARK 48530-02F70

main48530-8Z045iZRE18#..RUS201606-201901

MARK 48530-02F80,ROUGH ROAD AREA SPEC

main48530-09W70iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201412

MARK 48530-02A70,ROUGH ROAD AREA SPEC

sub48530-09W72

main48530-09W71iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201412-201605

MARK 48530-02F50,ROUGH ROAD AREA SPEC

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02200iNDE180,NRE180,ZRE18#201306-201605

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02200iNDE180,ZRE18#201606-201901

48755SUPPORT, REAR SUSPENSION

main48755-02080×2iNDE180,ZRE18#201606-201901

NO.1

main48755-02090×2iNDE180,ZRE18#201606-201901

NO.2

9011912393

main90119-12393

9011914131

main90119-14131

90119W0209

main90119-W0209

90119W0212

main90119-W0212

9017314004

main90173-14004

90178W0018

main90178-W0018

9413061200

main94130-61200

23 parts on this diagram · 1 diagram in section
