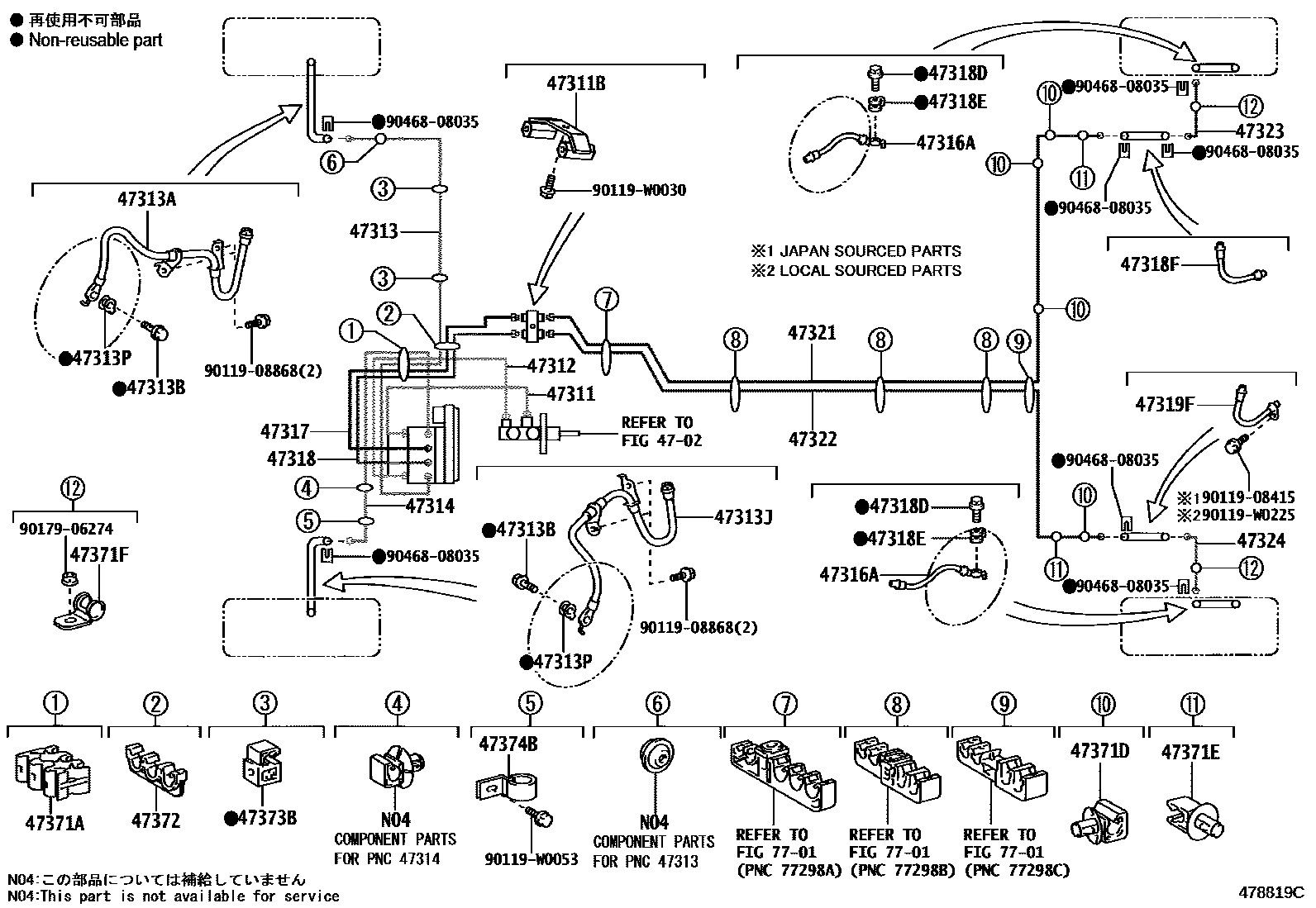

BRAKE TUBE & CLAMP
4702
47311TUBE, FRONT BRAKE, NO.1
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
VSC-WITHOUT
ABS-WITH (WITHOUT VSC))
VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
47312TUBE, FRONT BRAKE, NO.2
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
VSC-WITHOUT
ABS-WITH (WITHOUT VSC))
VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
47313TUBE, FRONT BRAKE, NO.3
VSC-WITHOUT
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
VSC-WITHOUT
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47317TUBE, FRONT BRAKE, NO.7
VSC-WITHOUT
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47318TUBE, FRONT BRAKE, NO.8
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
VSC-WITHOUT
VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
ABS-WITH (WITHOUT VSC))
VSC-WITH(W/CUT OFF SWITCH)
VSC-WITHOUT
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))&VSC-WITHOUT
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47373BCLAMP, BRAKE TUBE, NO.3
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
47374BCLAMP, BRAKE TUBE, NO.4
ABS-WITH (WITHOUT VSC))
ABS-WITH (WITHOUT VSC))&VSC-WITH(W/CUT OFF SWITCH)
7701
9011908415
main90119-08415
9011908868
main90119-08868
90119W0030
main90119-W0030
90119W0053
main90119-W0053
90119W0225
main90119-W0225
9017906274
main90179-06274
9046808035
main90468-08035
36 parts on this diagram · 10 diagrams in section
