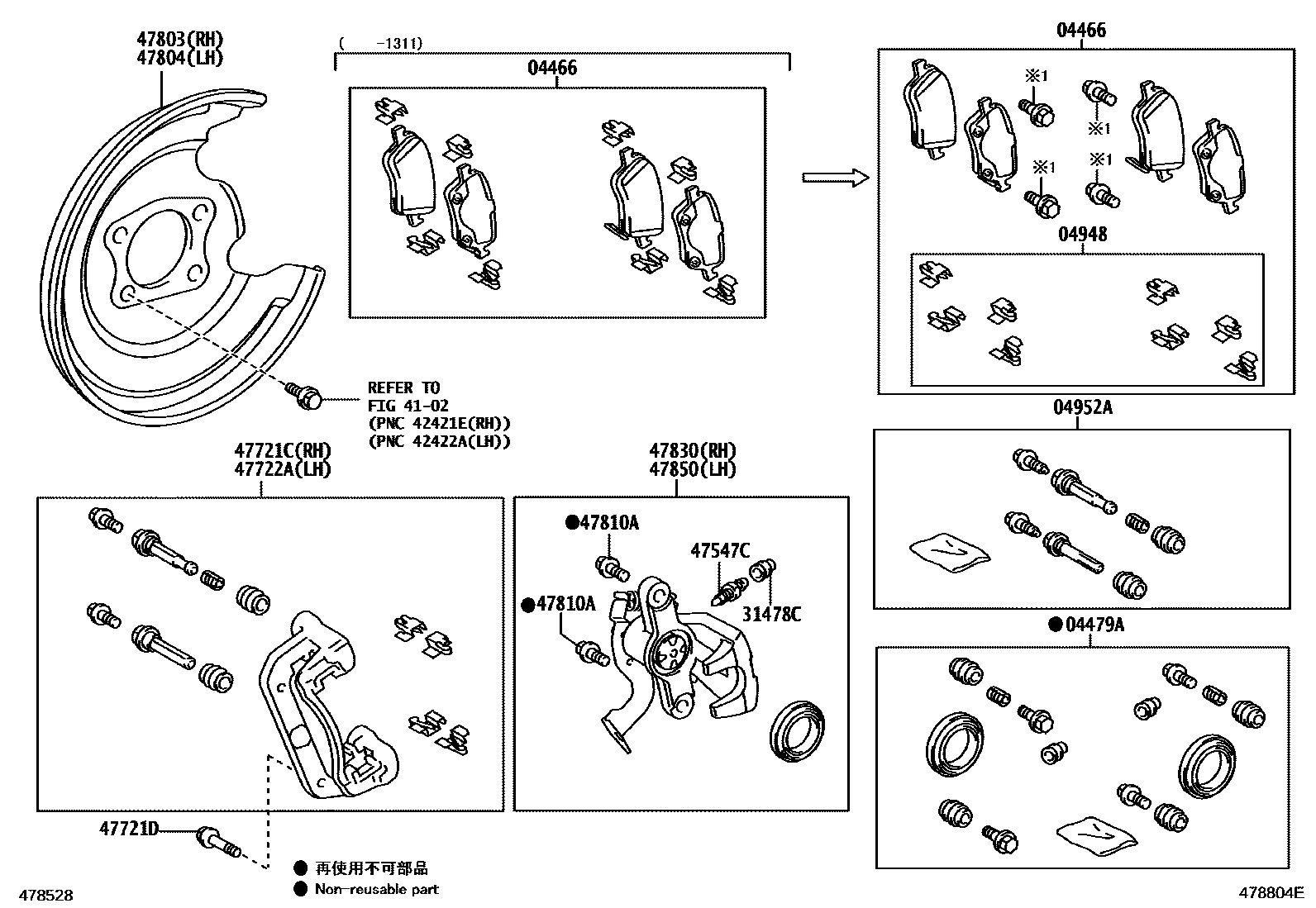

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W(ABS)

04466PAD KIT, DISC BRAKE, REAR

main04466-02181iNDE180,NRE180,ZRE18#¥6,700201306-201310

MARK GALFER G3409

main04466-02290iNDE180,NRE180,ZRE18#201311-201506

MARK GALFER G3409

sub04466-02291

main04466-02291iNDE180,NRE180,ZRE18#201506-201701

MARK GALFER G3409

sub04466-02292¥7,100

main04466-02292iNRE180¥7,100201702-201901

MARK GALFER G3409

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iNDE180,NRE180,ZRE18#¥1,800201306-201901

04948FITTING KIT, DISC BRAKE, REAR

main04948-02130iNDE180,NRE180,ZRE18#¥1,390201311-201901

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iNDE180,NRE180,ZRE18#¥2,240201306-201901

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001iNDE180,NRE180,ZRE18#¥170201306-201901

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000iNDE180,NRE180,ZRE18#¥310201306-201901

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09020iNDE180,NRE180,ZRE18#¥5,800201306-201506

main47821-09081iNDE180,NRE180,ZRE18#201506-201602

main47821-09082iNDE180,NRE180,ZRE18#201602-201901

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10576iNDE180,NRE180,ZRE18#¥100201306-201901

*10-1.25PX19-15.25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09020iNDE180,NRE180,ZRE18#¥5,800201306-201506

main47822-09081iNDE180,NRE180,ZRE18#201506-201602

main47822-09082iNDE180,NRE180,ZRE18#201602-201901

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02120iNDE180,NRE180,ZRE18#201306-201901

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02120iNDE180,NRE180,ZRE18#201306-201901

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main47715-05060iNDE180,NRE180,ZRE18#¥750201306-201901

sub47715-28060¥620

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iNDE180,NRE180,ZRE18#201306-201506

main47830-02101iNDE180,NRE180,ZRE18#¥34,600201506-201901

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iNDE180,NRE180,ZRE18#201306-201506

sub47850-02101¥34,600

main47850-02101iNDE180,NRE180,ZRE18#¥34,600201506-201901

15 parts on this diagram · 2 diagrams in section
