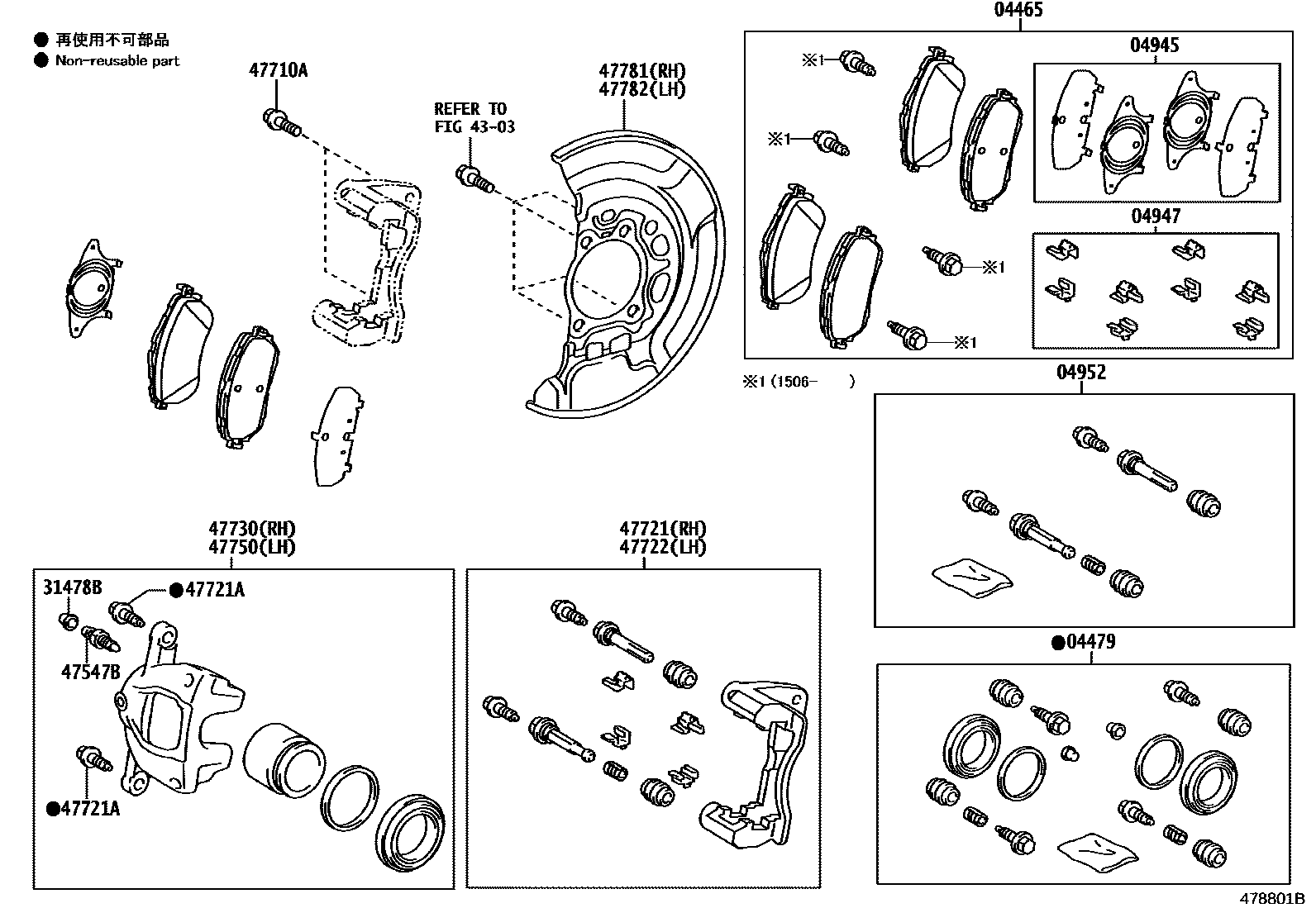

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W(ABS)

04465PAD KIT, DISC BRAKE, FRONT

main04465-02390iNDE180,NRE180,ZRE18#201306-201506

MARK TEXTAR T4146

sub04465-02391¥10,500

main04465-02391iNDE180,NRE180,ZRE18#¥10,500201506-201901

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02320iNDE180,NRE180,ZRE18#201306-201901

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02210iNDE180,NRE180,ZRE18#¥690201306-201901

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iNDE180,NRE180,ZRE18#¥2,080201306-201901

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02310iNDE180,NRE180,ZRE18#201306-201702

sub04952-02311

main04952-02311iNRE180201702-201901

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001iNDE180,NRE180,ZRE18#¥170201306-201901

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iNDE180,NRE180,ZRE18#¥310201306-201901

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNDE180,NRE180,ZRE18#¥160201306-201901

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09540iNDE180,NRE180,ZRE18#201306-201702

sub47721-09541

main47721-09541iNRE180201702-201901

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iNDE180,NRE180,ZRE18#¥750201306-201901

sub47715-28060¥620

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09240iNDE180,NRE180,ZRE18#201306-201702

sub47722-09241

main47722-09241iNRE180201702-201901

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02510iNDE180,NRE180,ZRE18#201306-201901

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02250iNDE180,NRE180,ZRE18#201306-201901

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02200iNDE180,NRE180,ZRE18#201306-201901

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02200iNDE180,NRE180,ZRE18#201306-201901

16 parts on this diagram · 2 diagrams in section
