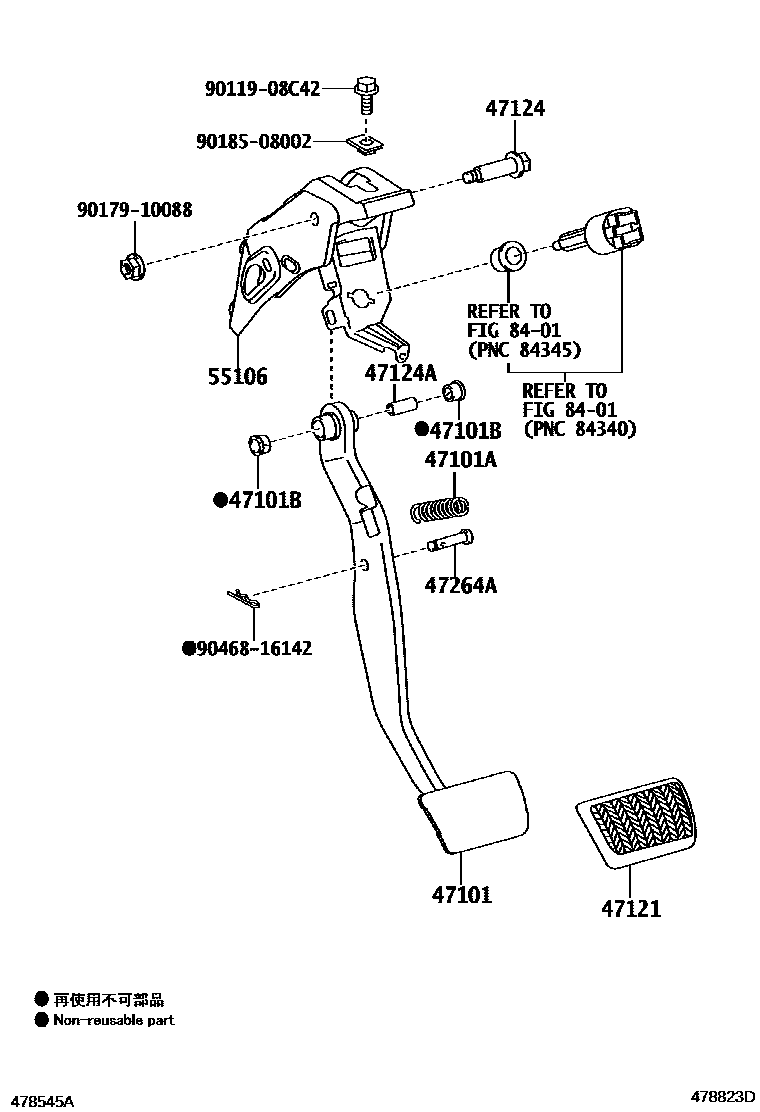

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-02450iNDE180,NRE180,ZRE181..LHD..6F201306-201901

main47101-02460iNDE180..6FS;ZRE18#..LHD..CVT201306-201901

main47101-12710iNDE180..RHD201306-201901

main47101-12720iZRE181..CVT..D..HTWVM201306-201901

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15007iNDE180,NRE180,ZRE18#201306-201901

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNDE180,NRE180,ZRE18#201306-201901

47121PAD, BRAKE PEDAL

main31321-42010iNDE180,ZRE181..6F201306-201901

main47121-42010iZRE18#..CVT;NDE180..6FS201306-201901

47124SHAFT, BRAKE PEDAL

main90101-10039iNRE180..LHD201306-201901

main90109-10174iNRE180..RHD201306-201901

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNDE180,ZRE18#..LHD201306-201901

47264APIN(FOR PUSH ROD)

main47148-33011iNDE180,ZRE18#201306-201901

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02160iNDE180,ZRE18#..LHD201306-201901

main55106-12680iNDE180,ZRE181..RHD201306-201901

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

13 parts on this diagram · 2 diagrams in section
