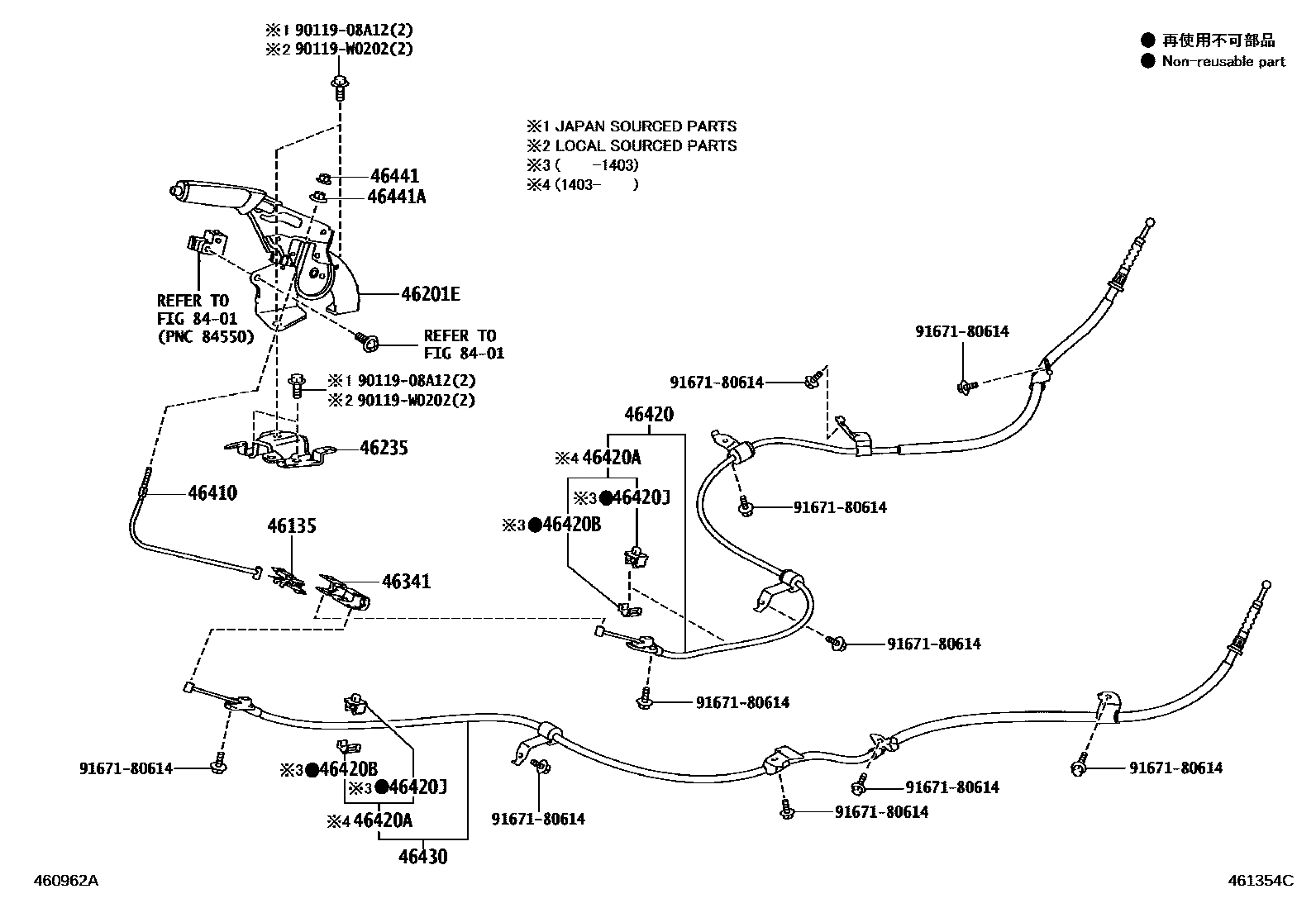

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-02040iNDE180,NRE180,ZRE18#201306-201901

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02200-C0iNDE180,NRE180,ZRE18#..N201306-201505

BLACK,TRIM0#,2#

main46201-02200-C1iNDE180,ZRE18#..G,N201505-201901

EU BLACK,TRIM0#,2#

main46201-02350-C0iNDE180,NRE180,ZRE181..RHD201306-201505

BLACK,TRIM0#,2#

main46201-02350-C1iNRE180..RHD201505-201901

EU BLACK,TRIM0#,2#

main46201-02460-C0iNDE180,NRE180,ZRE18#..LHD..D201306-201505

BLACK,TRIM0#,2#

sub46201-02460

main46201-02460-C1iNRE180..LHD..D201505-201901

EU BLACK,TRIM0#,2#

sub46201-02460

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-02030iNDE180,NRE180,ZRE18#201306-201901

46341EQUALIZER, PARKING BRAKE

main46341-02110iNDE180,NRE180,ZRE18#201306-201901

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02140iNDE180,NRE180,ZRE18#201306-201901

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02300iNDE180,NRE180,ZRE18#201306-201901

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iNDE180,NRE180,ZRE18#201403-201901

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-12040iNDE180,NRE180,ZRE18#201306-201403

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-12030iNDE180,NRE180,ZRE18#201306-201403

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02300iNDE180,NRE180,ZRE18#201306-201901

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNDE180,NRE180,ZRE18#201306-201901

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNDE180,NRE180,ZRE18#201306-201901

8401

9011908A12

main90119-08A12

90119W0202

main90119-W0202

9167180614

main91671-80614

16 parts on this diagram · 1 diagram in section
