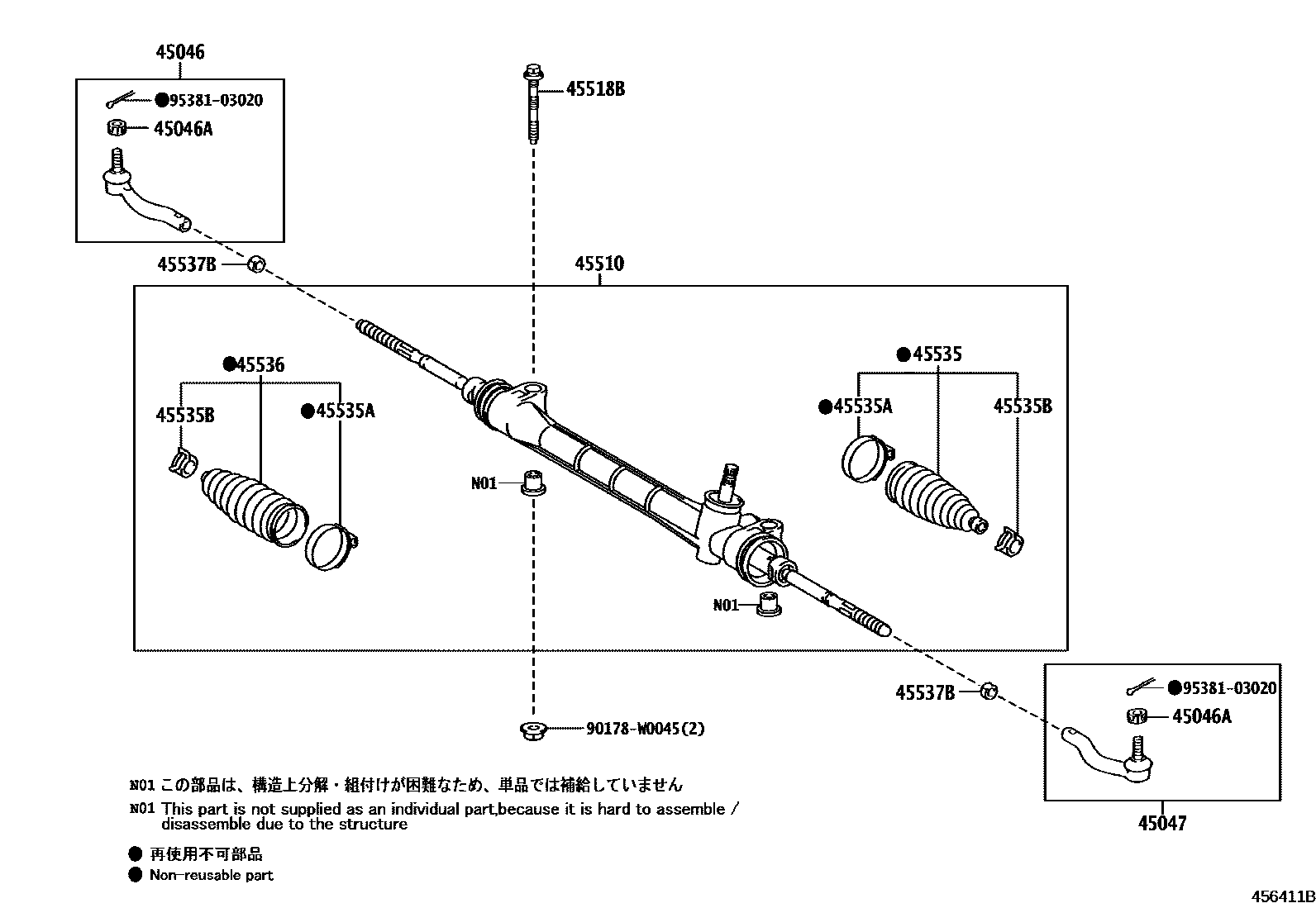

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09570iNDE180,NRE180,ZRE18#201306-201901

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNDE180,NRE180,ZRE18#201306-201901

45047END SUB-ASSY, TIE ROD, LH

main45047-09270iNDE180,NRE180,ZRE18#201306-201901

45510GEAR ASSY, STEERING

main45510-02700iNDE180,NRE180,ZRE181..RHD201306-201901

main45510-02710iNRE180..LHD201306-201901

45518BBOLT, STEERING RACK HOUSING

main90119-14129iNDE180,NRE180,ZRE18#201306-201605

main90119-14156iNDE180,ZRE18#201606-201901

45535BOOT, STEERING RACK, NO.1

main45535-09120iNDE180,NRE180,ZRE18#201306-201502

main45535-09440iNDE180,NRE180,ZRE18#201503-201901

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-05010iNDE180,ZRE18#201505-201901

main45538-47010iNDE180,NRE180,ZRE18#201306-201504

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iNRE180201306-201901

45536BOOT, STEERING RACK, NO.2

main45535-09120iNDE180,NRE180,ZRE18#201306-201502

main45535-09440iNDE180,NRE180,ZRE18#201503-201901

45537BNUT, RACK END LOCK

main90179-15006iNDE180,NRE180,ZRE18#201306-201901

90178W0045

main90178-W0045

9538103020

main95381-03020

12 parts on this diagram · 2 diagrams in section
