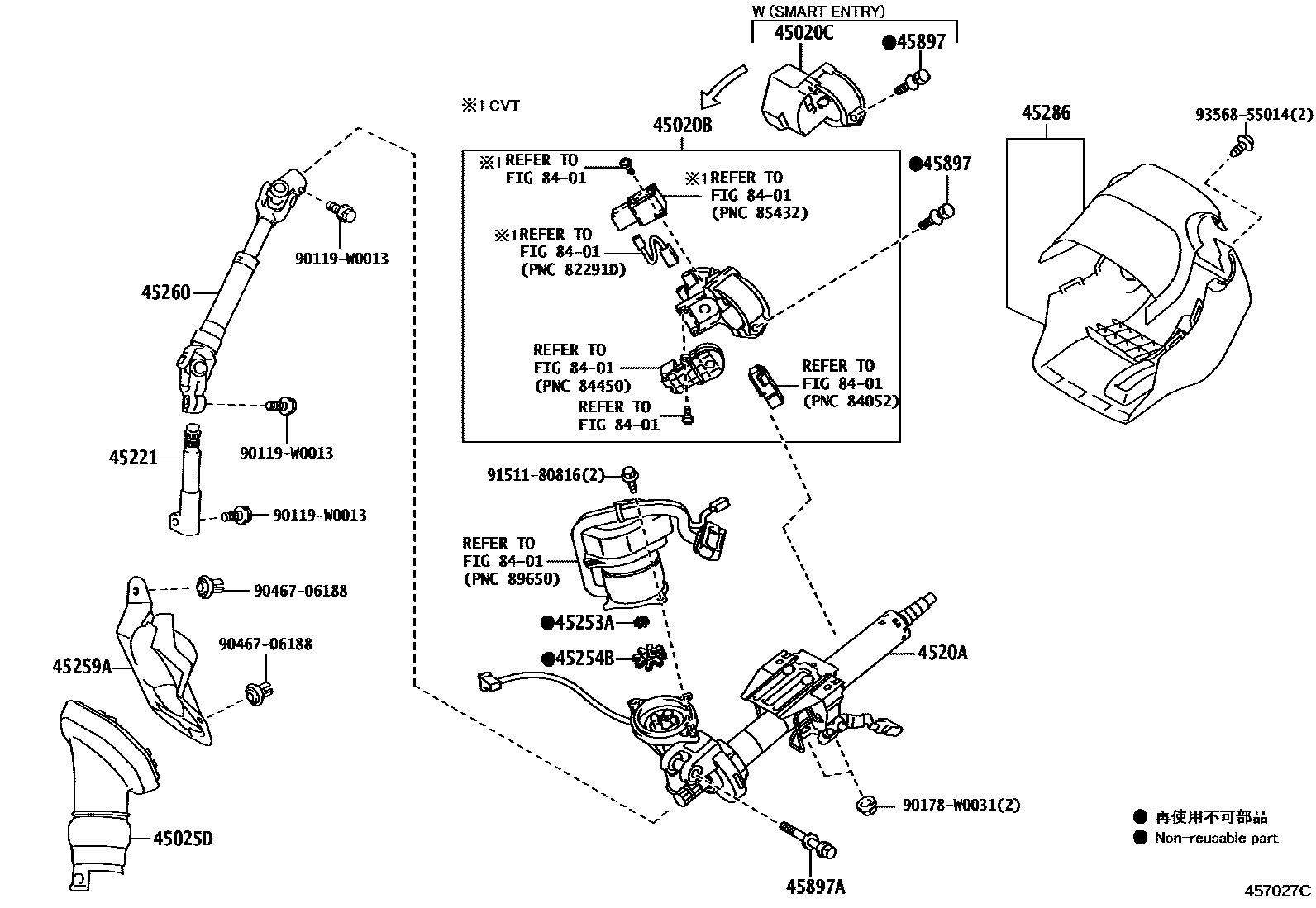

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45020-02460iZRE18#..CVT..G201807-201901

WIRELESS DOOR LOCK-WITH

main45020-02460iZRE18#..CVT201306-201512

main45020-02480iNDE180,NRE180,ZRE181..MTM..(D,N)201807-201901

WIRELESS DOOR LOCK-WITH

sub45020-02760

main45020-02480iNDE180,NRE180,ZRE181..MTM201306-201512

sub45020-02760

main45020-02650iZRE18#..CVT201512-201605

sub45020-02460

main45020-02650iZRE18#..CVT..(D,N)201606-201806

WIRELESS DOOR LOCK-WITH

sub45020-02460

main45020-02760iNDE180,ZRE181..MTM..G201606-201806

WIRELESS DOOR LOCK-WITH

main45020-02760iNDE180,NRE180,ZRE181..MTM201512-201605

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iNDE180,ZRE18#..G201606-201901

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iNDE180,NRE180,ZRE181..RHD201306-201901

main45025-02090iNDE180,ZRE18#..LHD201306-201901

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02140iNDE180,NRE180,ZRE181..RHD201306-201403

sub4520A-02141

main4520A-02141iNDE180,NRE180,ZRE181..RHD201404-201411

sub4520A-02142

main4520A-02142iNDE180,NRE180,ZRE181..RHD201412-201508

sub4520A-02143

main4520A-02143iNDE180,NRE180,ZRE181..RHD201509-201901

main4520A-02153iNDE180,ZRE18#..G201606-201901

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

main4520A-02160iNDE180,NRE180,ZRE18#..LHD201306-201403

sub4520A-02161

main4520A-02161iNDE180,NRE180,ZRE18#..LHD201404-201411

sub4520A-02162

main4520A-02162iNDE180,NRE180,ZRE18#..LHD201412-201508

sub4520A-02163

main4520A-02163iNRE180..LHD201509-201808

main4520A-02163iNDE180,ZRE18#..LHD..(D,N)201606-201901

WIRELESS DOOR LOCK-WITH

45221SHAFT, STEERING INTERMEDIATE

main45221-02100iNDE180,NRE180,ZRE18#201306-201901

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iNDE180,NRE180,ZRE18#201306-201901

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iNRE180201306-201901

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iNDE180,ZRE181..RHD201306-201901

main45259-02080iNRE180..LHD201306-201901

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02160iNDE180,NRE180,ZRE18#201306-201901

45286COVER, STEERING COLUMN

main45286-02942-C0iNDE180,NRE180,ZRE18#201306-201505

BLACK,TRIM0#,2#

sub45286-02942

main45286-02942-C1iNDE180,NRE180,ZRE18#201505-201605

EU BLACK,TRIM0#,2#

sub45286-02942

main45286-02949-C1iNDE180,ZRE18#..N201606-201901

EU BLACK,TRIM0#,2#

main45286-02949-C1iNDE180,ZRE18#..G201606-201901

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM0#,2#

main45286-02950-C0iNRE180201606-201901

EU BLACK,TRIM0#,2#

main45286-02950-C0iNDE180,ZRE18#..D,N201606-201901

WIRELESS DOOR LOCK-WITH,EU BLACK,TRIM0#,2#

45897BOLT, STEERING LOCK SET

main45897-12050iNDE180,NRE180,ZRE18#201306-201901

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iNDE180,NRE180,ZRE18#201306-201607

main90119-10981iNRE180201607-201901

(J)

main90119-W0215iNRE180201607-201901

(L)

8401

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

9151180816

main91511-80816

9356855014

main93568-55014

18 parts on this diagram · 2 diagrams in section
