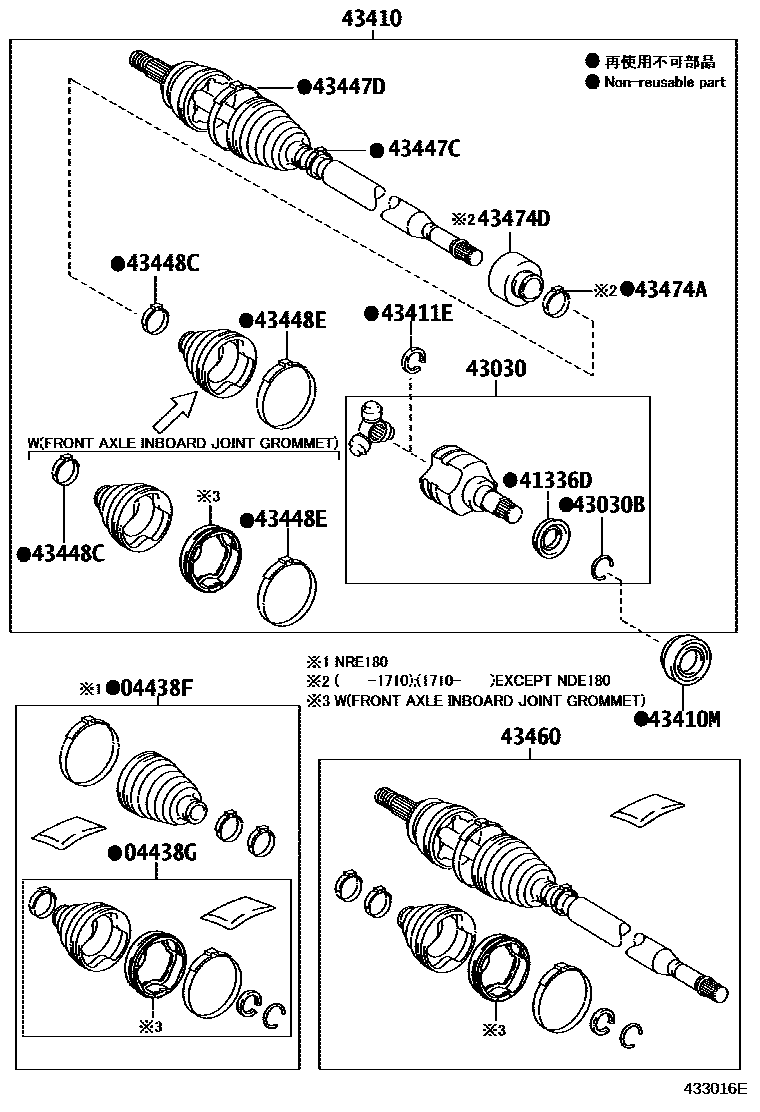

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02580iNRE180201306-201808

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02420iNRE180201306-201808

main04437-02430iZRE18#201306-201901

main04437-0F010iNDE180201306-201901

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05010iNRE180201306-201808

main41336-05140iNDE180,ZRE18#¥380201306-201901

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-02030iNRE180¥10,000201306-201808

main43040-05150iZRE18#201306-201901

main43040-0F020iNDE180201306-201901

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52055iNDE180,ZRE18#¥90201306-201901

main90080-52056iNRE180¥100201306-201808

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02820iNRE180201505-201808

main43410-02B40iNRE180201306-201505

sub43410-02820

main43410-02B50iZRE18#201306-201901

main43410-0F042iNDE180201710-201901

main43410-0F090iNDE180201306-201710

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34041iNRE180¥350201306-201808

sub90311-34054¥350

main90311-35055iZRE18#..CVT¥400201306-201504

sub90311-35069¥400

main90311-35065iNDE180,ZRE181..6F¥270201306-201605

*201

main90311-35065iNDE180..6FS¥270201602-201605

*206

main90311-35065iNDE180,ZRE181..MTM¥270201606-201901

main90311-35069iZRE18#..CVT¥400201505-201808

main90311-35076iZRE18#..CVT¥400201808-201901

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05080iZRE18#¥60201306-201901

main43425-05120iNDE180¥60201306-201901

main90080-52093iNRE180¥120201306-201808

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iNDE180,ZRE18#¥310201306-201901

main42345-05140iNRE180¥250201306-201808

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iNDE180,ZRE18#¥440201306-201901

main42345-05130iNRE180¥260201306-201808

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNRE180¥260201306-201808

main42345-05340iZRE18#¥270201306-201901

main42345-0F060iNDE180201306-201901

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05030iNRE180201306-201808

main42345-05320iZRE18#¥400201306-201901

main42345-0F050iNDE180201306-201901

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09X30iNDE180201306-201901

sub43460-09U11

main43460-09X50iNRE180201306-201808

main43460-09X60iZRE18#201306-201901

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02230iNDE180201306-201901

main42345-05370iNRE180201306-201808

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02150iNDE180201306-201710

main43474-02400iNRE180201306-201808

main43474-02420iZRE18#201306-201901

15 parts on this diagram · 3 diagrams in section
