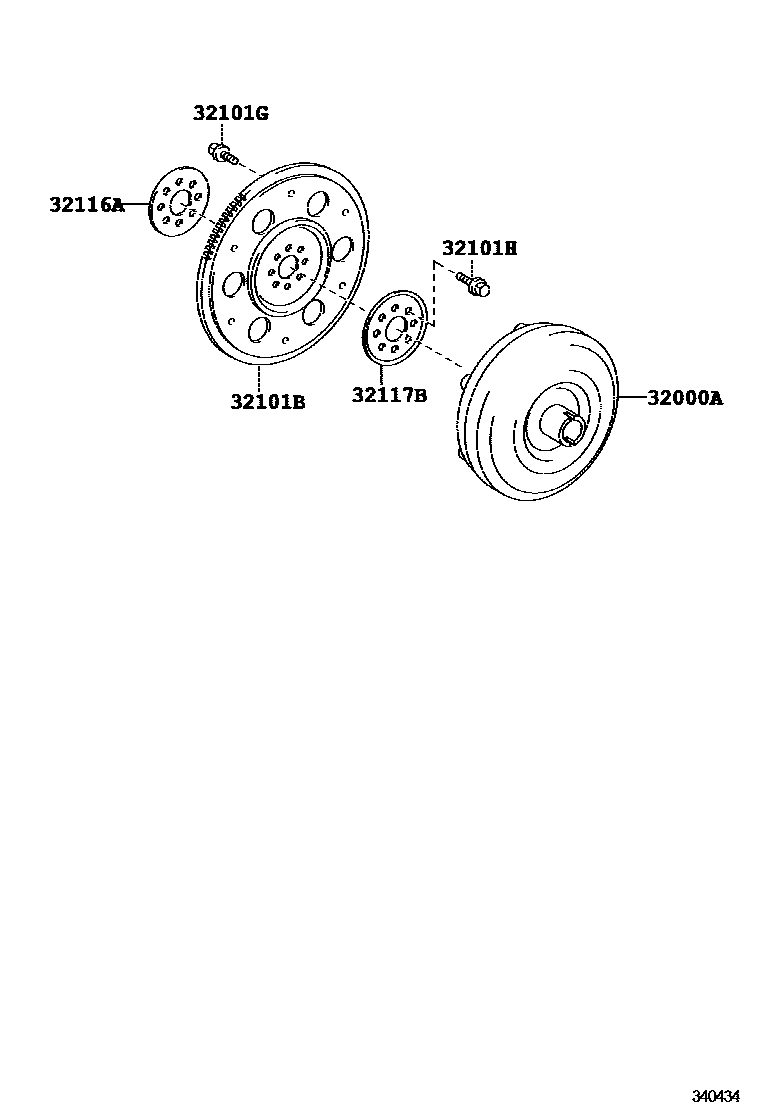

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313 0002 1K311

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRE18#..CVT..HTWC¥72,300201306-201901

main32000-12490iZRE181..CVT..HTWVM¥72,300201505-201901

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE18#..CVT¥11,600201306-201901

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE18#..CVT¥80201306-201901

*8-1.25PX12-8.4,BLACK

main90119-08498iZRE18#..CVT¥80201306-201901

*8-1.25PX12-8,YELLOW OR SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE18#..CVT¥130201306-201901

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE18#..CVT¥610201306-201901

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE18#..CVT¥800201306-201901

6 parts on this diagram · 2 diagrams in section
