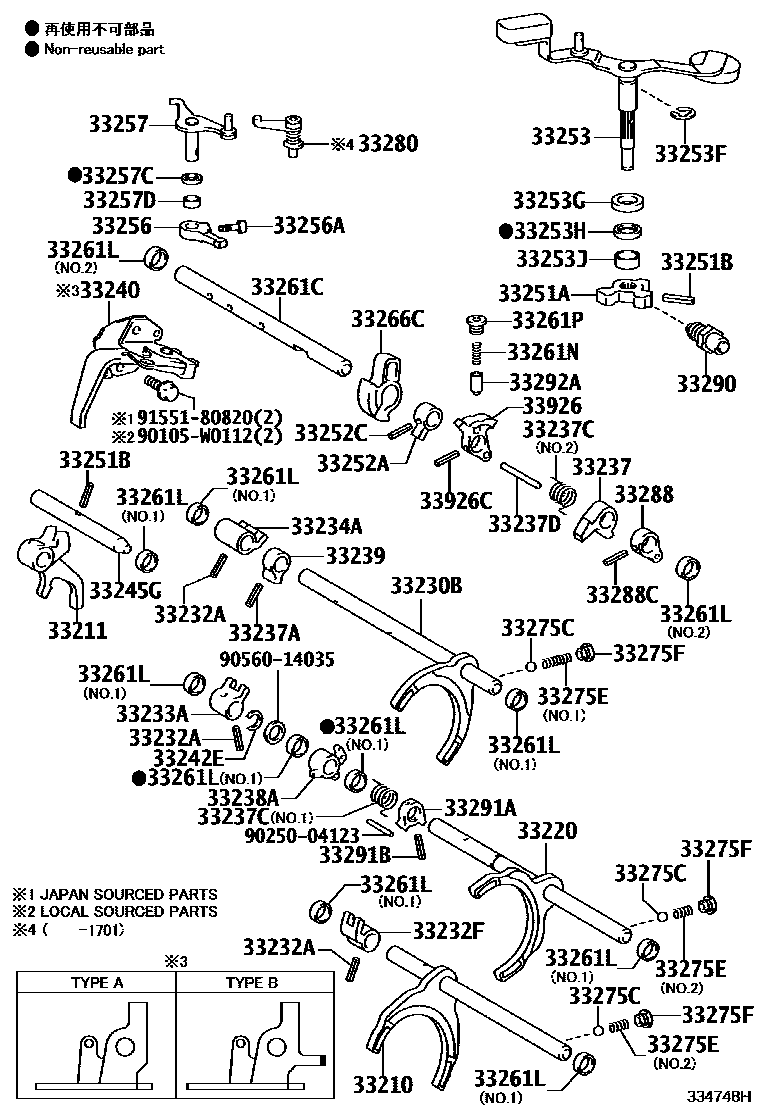

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33210FORK ASSY, GEAR SHIFT, NO.1
33211FORK, REVERSE SHIFT
33220FORK ASSY, GEAR SHIFT, NO.2
33230BFORK ASSY, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33237HEAD, RELEASE
*201
*206
33237APIN, SLOTTED SPRING (FOR RELEASE HEAD)
*201
*206
33237CSPRING, TORSION(FOR RELEASE HEAD)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33237DPIN, STRAIGHT(FOR RELEASE HEAD)
33238AHEAD, REVERSE PRE-BALK, NO.2
33239HEAD, REVERSE PRE-BALK, NO.3
33240BRACKET ASSY, REVERSE SHIFT ARM
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
*206
*201
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251ALEVER, SHIFT, INNER NO.1
PNC 33240=TYPE A
PNC 33240=TYPE B
(L)
(J)
*201
*206
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=22,*201
L=22
L=22,*206
L=28.0
33252ALEVER, SHIFT, INNER NO.2
*201
*206
33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
*201
*206
33253LEVER, SHIFT OUTER, NO.1
33253FRING, E(FOR SHIFT OUTER LEVER)
33253GSPACER(FOR SHIFT OUTER LEVER)
33253HSEAL, OIL(FOR SHIFT OUTER LEVER)
33253JBUSH(FOR SHIFT OUTER LEVER)
33256LEVER, SELECT INNER
*201
*206
33256ABOLT, SET (FOR SELECT INNER LEVER)
33257LEVER, SELECT OUTER
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33257DBUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
*206
*201
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
NO.1:REFER ILLUST.
*201,NO.1:REFER ILL.
*206,NO.1:REFER ILL.
*201,NO.2:REFER ILL.
NO.2:REFER ILLUST.
*206,NO.2:REFER ILL.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33261NSPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)
33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
*201
*206
33275CBALL (FOR SHIFT DETENT)
*201
*206
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
NO.2:REFER ILLUST.
NO.2,PNC 33240=TYPEA
*206,NO.2:REFER ILL.
*201,NO.2:REFER ILL.
*201,NO.1:REFER ILL.
NO.1:REFER ILLUST.
*206,NO.1:REFER ILL.
33275FPLUG (FOR SHIFT DETENT BALL)
*201
*206
33280PIN ASSY, REVERSE RESTRICT
33288BLOCK, SELECT STOPPER
33288CPIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK)
33290BALL ASSY, LOCK, NO.1
PNC 33240=TYPE A
PNC 33240=TYPE B
33291ASTOPPER, SHIFT FORK SHAFT
33291BPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER)
33292APIN, LOCK BALL
33926LEVER, SHIFT INNER, FRONT
*206
*201
33926CPIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)
*201
*206
90105W0112
main90105-W0112
9025004123
9056014035
9155180820
52 parts on this diagram · 2 diagrams in section
