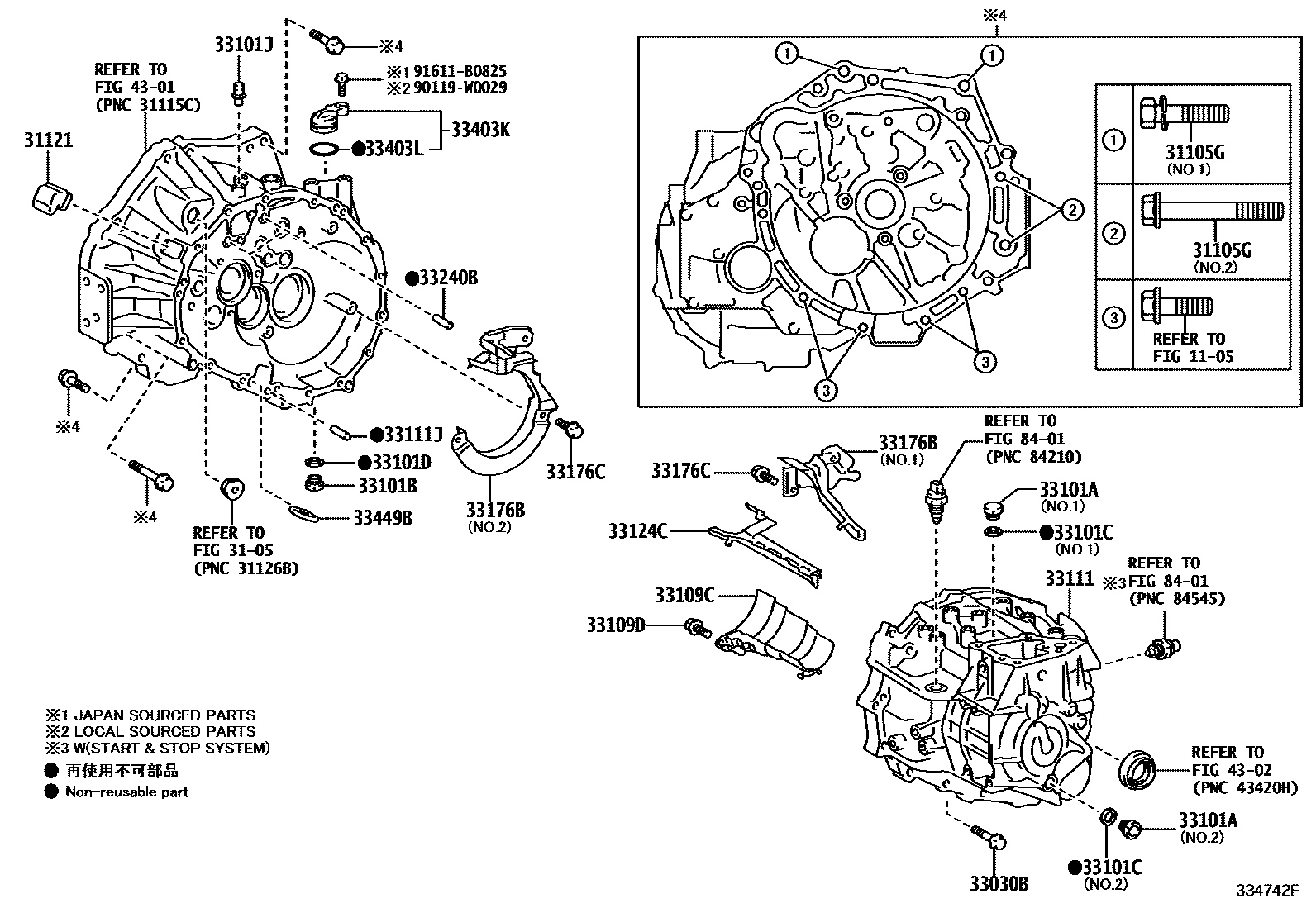

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
1105
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX80-26,(L),NO.2:SEE ILLUST
*12-1.25PX45-30,(L),NO.1:SEE ILLUST
*10-1.25PX45-30,(L),NO.1:SEE ILLUST
*10-1.25PX45-30,(L)
*10-1.25PX80-26,NO.2:REFER ILLUST.
*10-1.25PX80-26,(J),NO.2:SEE ILLUST
*12-1.25PX80-30,NO.2:REFER ILLUST.
*10-1.25PX45-30,(J),NO.1:SEE ILLUST
*10-1.25PX45-30,(J)
*12-1.25PX45-30,(J),NO.1:SEE ILLUST
31121COVER, CLUTCH HOUSING, NO.1
*201
*206
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX40-22,(L)
*8-1.25PX40-22,*201
*8-1.25PX40-22,(J)
*8-1.25PX40-22
*8-1.25PX40-22,*206
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
*201,NO.1:REFER ILL.
NO.1:REFER ILLUST.
*206,NO.1:REFER ILL.
*201,NO.2:REFER ILL.
NO.2:REFER ILLUST.
*206,NO.2:REFER ILL.
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
*201
*206
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
*201,NO.2:REFER ILL.
NO.2:REFER ILLUST.
*206,NO.2:REFER ILL.
*201,NO.1:REFER ILL.
NO.1:REFER ILLUST.
*206,NO.1:REFER ILL.
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
*201
*206
33101JPLUG, BREATHER
*201
*206
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
(L)
(J)
*201
*206
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=23,OD=8,*206
L=23,OD=8,*201
33124CPIPE, OIL RECEIVER, NO.1(MTM)
*201
*206
33176BSEPARATOR, TRANSMISSION OIL(MTM)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
*206,NO.1:REFER ILL.
*201,NO.1:REFER ILL.
NO.1:REFER ILLUST.
*206,NO.2:REFER ILL.
NO.2:REFER ILLUST.
*201,NO.2:REFER ILL.
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
(L)
*201
(J)
*206
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
*201
*206
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
33449BMAGNET, TRANSMISSION
*201
*206
4301
4302
8401
90119W0029
91611B0825
26 parts on this diagram · 4 diagrams in section
