TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

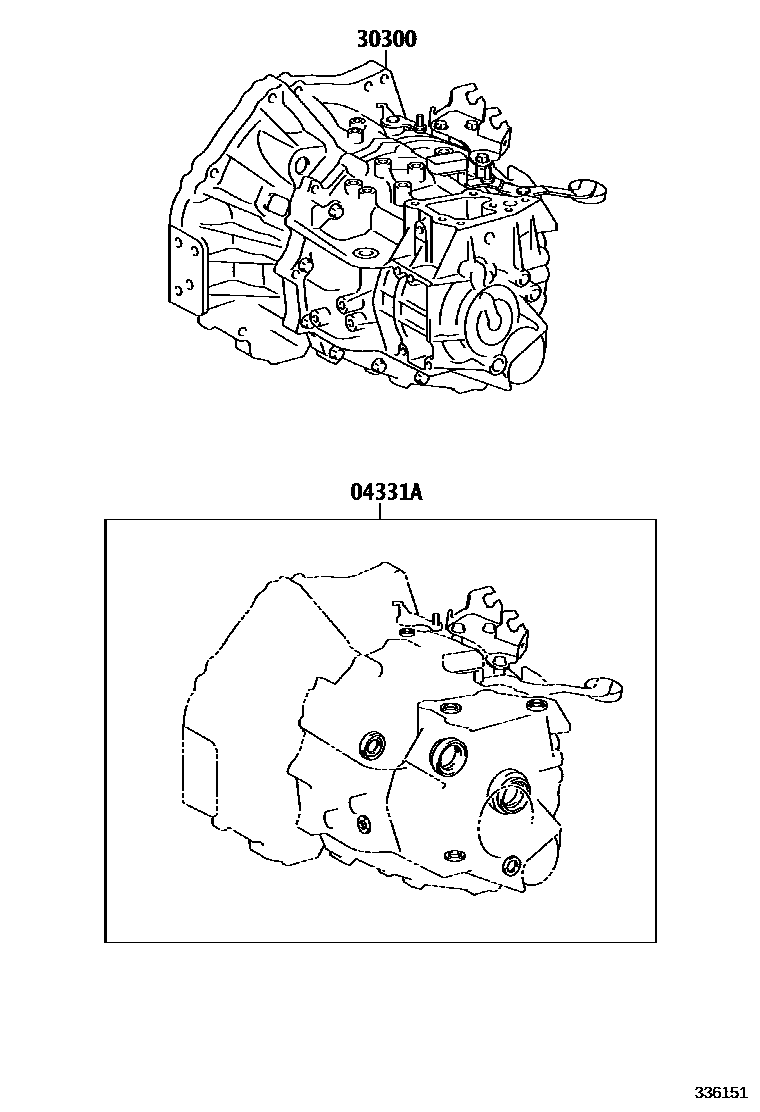

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-05230i201306-201808
sub04331-05231
main04331-0F010i201306-201612
sub04331-0F011
main04331-0F011i201612-201901
main04331-12830i201612-201901
main04331-52612i201602-201605
*205
sub04331-12830
main04331-52612i201606-201612
sub04331-12830
main04331-52612i201306-201605
*199
sub04331-12830
30300TRANSAXLE ASSY, MANUAL
main30300-02150i201306-201503
EC69
sub30300-02151
main30300-02151i201504-201901
EC69
main30300-02290i201306-201406
EC69
sub30300-02291
main30300-02330i201306-201503
EC61
sub30300-02331
main30300-02331i201504-201808
EC61
sub30300-02333
sub35150-44010
main30300-02350i201306-201901
EC60
sub30300-02352
sub35150-44010
main30300-02360i201306-201503
EC60
sub30300-02361
main30300-02361i201504-201901
EC60
sub30300-02363
sub35150-44010
main30330-12052i201306-201602
EC65A,*199
sub30330-12080
main30330-12080i201602-201605
EC65A,*199,*205
main30330-12080i201606-201901
EC65A

2 parts on this diagram · 2 diagrams in section
