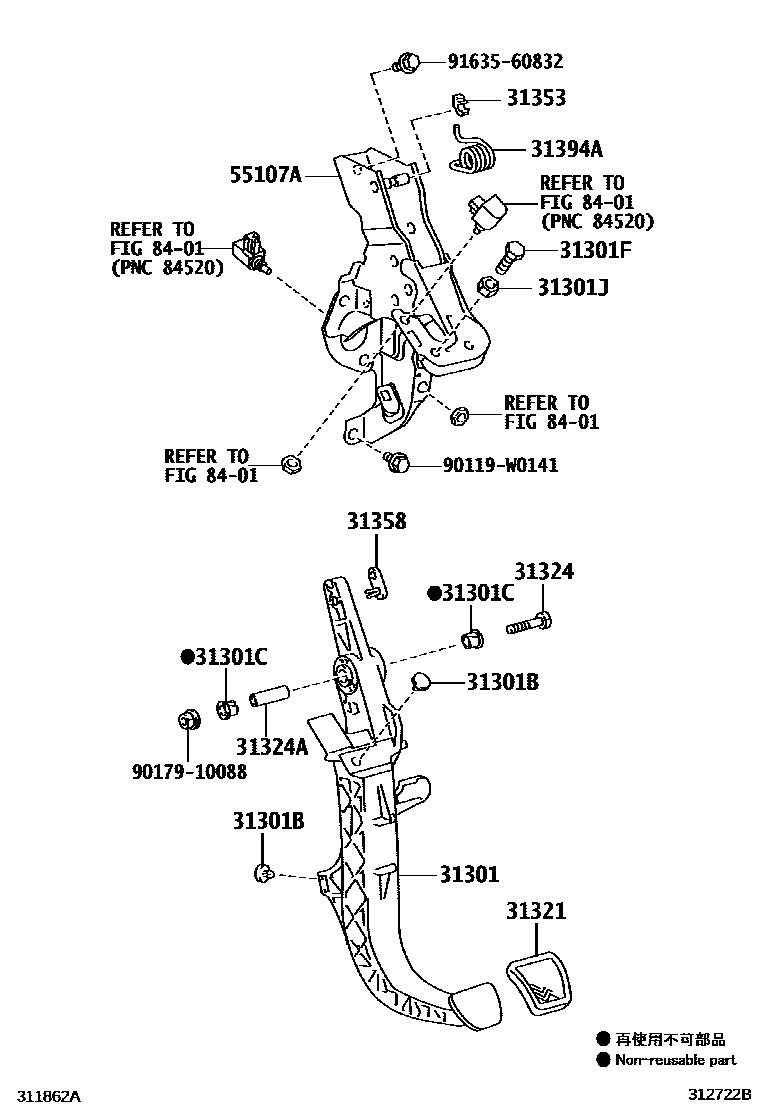

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02500iNRE180..LHD201306-201407

main31301-0F081iNRE180..LHD201407-201808

main31301-0F141iNDE180,ZRE181..LHD..6F201306-201901

main31311-12371iNRE180..RHD201306-201901

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNRE180..RHD201306-201901

main90541-W0002iNRE180..LHD201306-201901

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNDE180,NRE180,ZRE181..6F201306-201901

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNDE180,NRE180,ZRE181..6F201306-201901

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iNDE180,NRE180,ZRE181..6F201306-201901

31321PAD, CLUTCH PEDAL

main31321-42010iNDE180,NRE180,ZRE181..6F201306-201901

31324SHAFT, CLUTCH PEDAL

main90101-10039iNDE180..RHD201306-201901

main90109-10167iNDE180,ZRE181..LHD..6F201306-201901

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNDE180..RHD201306-201901

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0F010iNRE180..LHD201306-201901

main31353-26010iNDE180..RHD201306-201901

31358CAP, OVER CENTER SPRING

main31358-42010iNRE180..LHD201306-201901

31394ASPRING, PEDAL W/HOOK

main31394-02020iNRE180..LHD201306-201407

main31394-0F020iNDE180,ZRE181..LHD..6F201306-201901

main31394-12060iNDE180..RHD201306-201901

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0F061iNRE180..LHD201407-201808

main55107-0F071iNDE180,ZRE181..LHD..6F201306-201901

main55107-12271iNRE180..RHD201306-201808

main55107-12291iNDE180..RHD201306-201901

8401

90119W0141

main90119-W0141

9017910088

main90179-10088

9163560832

main91635-60832

16 parts on this diagram · 9 diagrams in section
