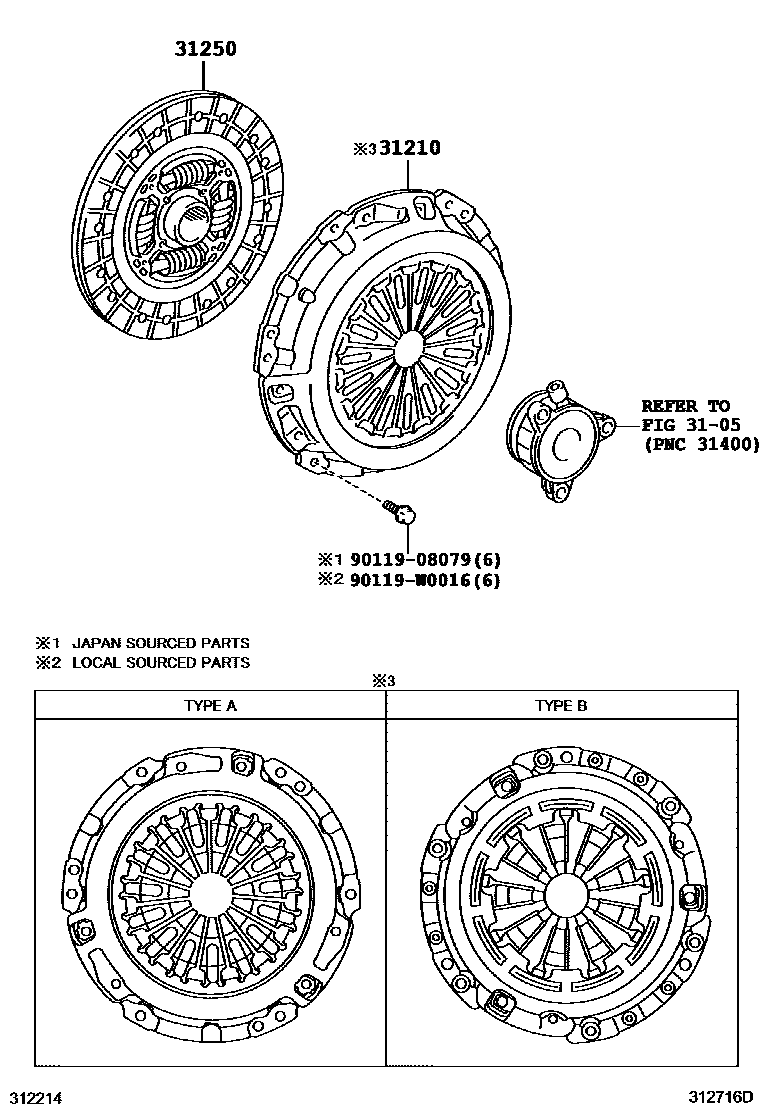

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

3105

31210COVER ASSY, CLUTCH

main31210-02350iNDE180..6F201505-201901

TYPE B:REFER ILLUST.

main31210-05130iZRE181..6F201306-201504

sub31210-05131

main31210-05131iZRE181..6F201505-201705

sub31210-05132

main31210-05132iZRE181..6F201706-201901

main31210-12350iNDE180..6FS201606-201901

main31210-12350iNDE180..6FS201306-201605

TYPE A:REFER ILLUST.

main31210-52100iNDE180..6F201306-201505

TYPE A:REFER ILLUST.

main31210-52130iNRE180201306-201407

main31210-52170iNRE180201407-201808

31250DISC ASSY, CLUTCH

main31250-02310iNDE180..6F201505-201605

PNC 31210=TYPE B

main31250-02310iNDE180..6F201606-201901

main31250-05140iZRE181..6F201306-201504

sub31250-05141

main31250-05141iZRE181..6F201505-201901

main31250-12620iNDE180..6FS201306-201706

sub31250-12621

main31250-12621iNDE180..6FS201707-201802

sub31250-12622

main31250-12622iNDE180..6FS201803-201901

main31250-52131iNDE180..6F201306-201505

PNC 31210=TYPE A

sub31250-52132

main31250-52210iNRE180201306-201603

sub31250-52211

main31250-52211iNRE180201604-201612

sub31250-52212

main31250-52212iNRE180201701-201808

9011908079

main90119-08079

90119W0016

main90119-W0016

5 parts on this diagram · 3 diagrams in section
