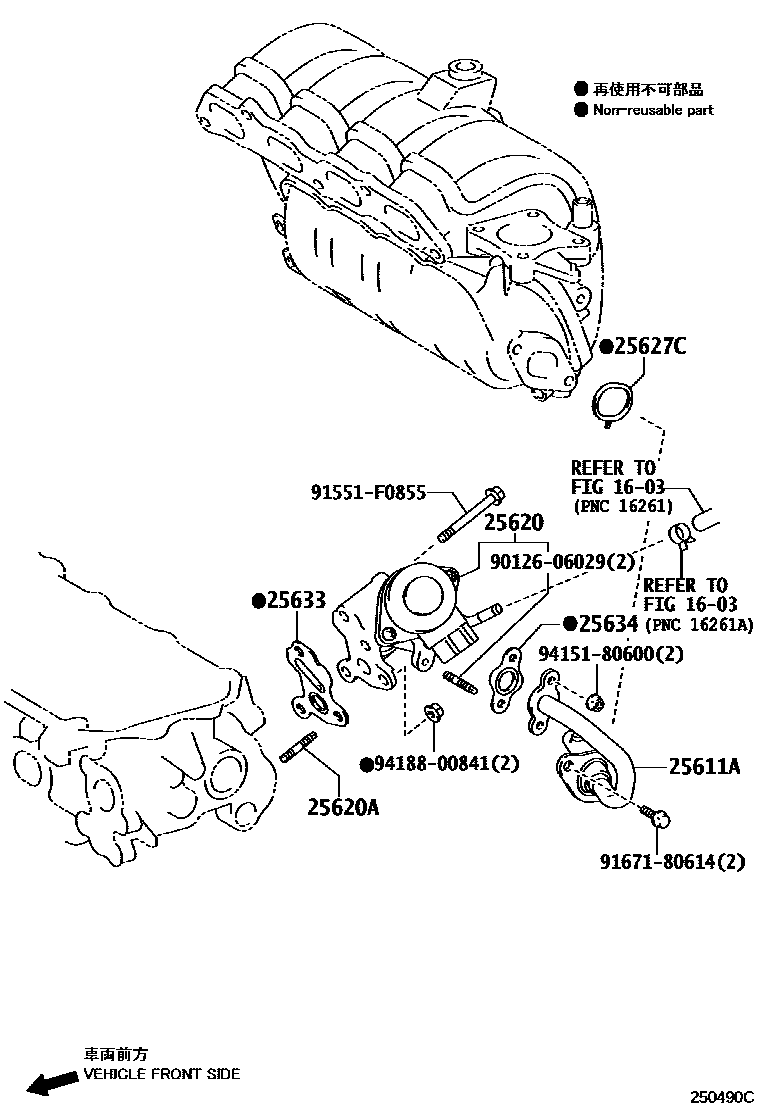

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

25611CONNECTOR, EGR PIPE

main25611-33020i1NDTV..NDE180201306-201609

main25611-33021i1NDTV..NDE180201609-201901

25611APIPE, EGR, NO.1

main25611-47011i1NRFE..NRE180201306-201808

25620VALVE ASSY, EGR

main25620-47020i1NRFE..NRE180201306-201808

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08063i1NRFE..NRE180201306-201808

25627GASKET, EGR VALVE

main25627-33010i1NDTV..NDE180201306-201901

25627CGASKET(FOR EGR PIPE NO.2)

main25629-47010i1NRFE..NRE180201306-201808

25633GASKET, EGR VALVE

main25633-47010i1NRFE..NRE180201306-201808

25634GASKET, EGR PIPE

main25634-33010i1NDTV..NDE180201306-201502

main25634-33020i1NDTV..NDE180..6FS201606-201901

main25634-33020i1NDTV..NDE180..6F201505-201605

PNC 25687=TYPE B

main25634-33030i1NDTV..NDE180..6F201503-201505

PNC 25687=TYPE A

main25634-33030i1NDTV..NDE180..6FS201606-201711

TURKEY SPEC

main25634-33030i1NDTV..NDE180..6FS201503-201605

main25634-47010i1NRFE..NRE180201306-201808

9012606029

main90126-06029

91551F0855

main91551-F0855

9167180614

main91671-80614

9415180600

main94151-80600

9418800841

main94188-00841

14 parts on this diagram · 3 diagrams in section
