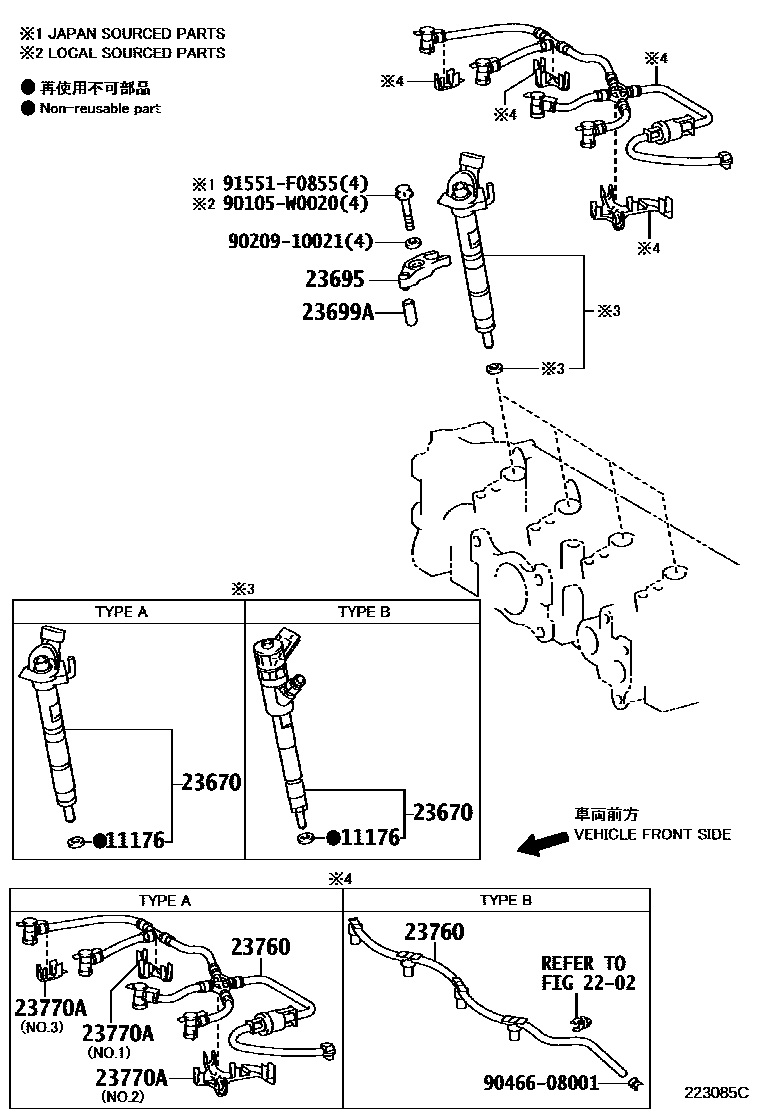

INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
2202
23670INJECTOR ASSY
TYPE A:REFER ILLUST.
TURKEY SPEC,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23695CLAMP, NOZZLE HOLDER, NO.1
23699ASEAT, NOZZLE HOLDER CLAMP
23760PIPE ASSY, NOZZLE LEAKAGE
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TURKEY SPEC,TYPE A:REFER ILLUST.
23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
NO.1:REFER ILLUST.
TURKEY SPEC,NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
TURKEY SPEC,NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
TURKEY SPEC,NO.3:REFER ILLUST.
90105W0020
main90105-W0020
9020910021
main90209-10021
9046608001
main90466-08001
91551F0855
main91551-F0855
11 parts on this diagram · 1 diagram in section
