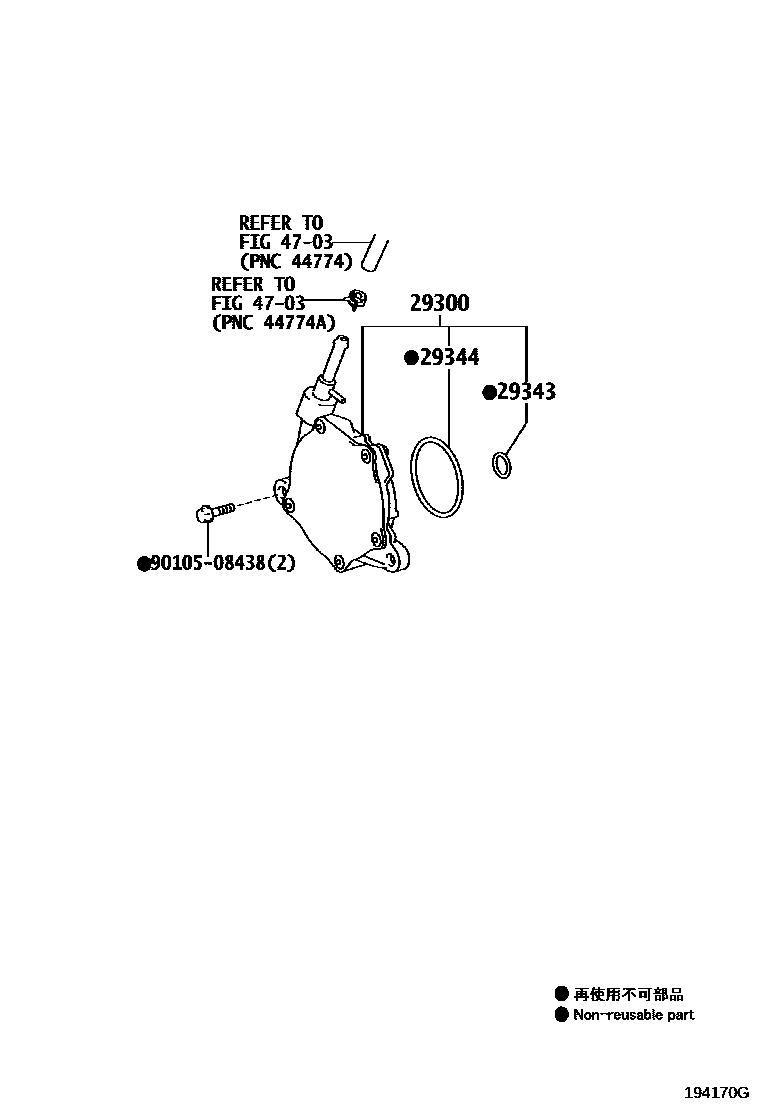

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-0T020i1ZRFAE..ZRE181201306-201901

main29300-0W072i1NDTV..NDE180201306-201502

sub29300-0W120

main29300-0W120i1NDTV..NDE180201503-201901

29343RING, O VACUUM PUMP, NO.1

main29343-0N010i1ZRFAE..ZRE181201306-201707

main29343-0W050i1ZRFAE..ZRE181201707-201901

main29343-0W060i1NDTV..NDE180201306-201901

29344RING, O VACUUM PUMP, NO.2

main29344-0W022i1ZRFAE..ZRE181201306-201707

main29344-0W050i1ZRFAE..ZRE181201707-201901

main29344-0W060i1NDTV..NDE180201306-201503

main29344-0W100i1NDTV..NDE180201503-201901

4703

9010508438

main90105-08438

5 parts on this diagram · 2 diagrams in section
