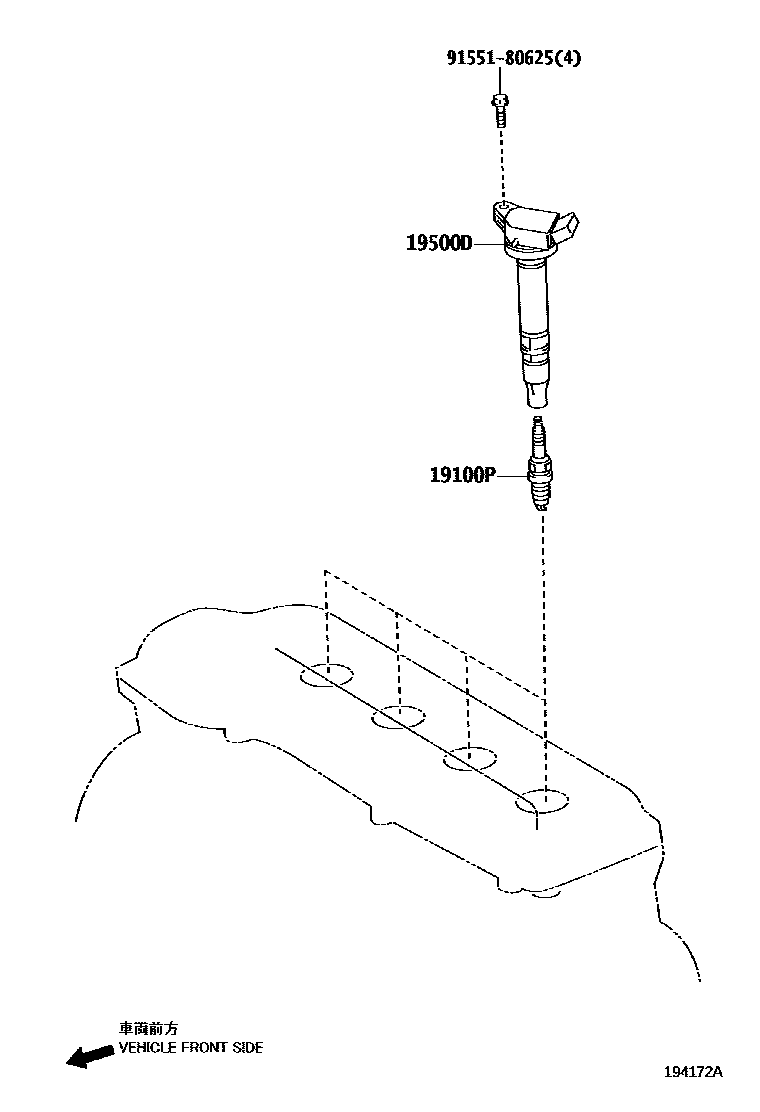

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01253×4i1ZR#,2ZRFE..ZRE18#201306-201406

SC20HR11

main90919-01275×4i1NRFE..NRE180201606-201808

SC16HR11

main90919-W1006×4i1ZR#,2ZRFE..ZRE18#201406-201605

SC20HR11,(L)

main90919-W1007×4i1ZR#,2ZRFE..ZRE18#201606-201901

SC16HR11,(L)

19500COIL ASSY, IGNITION

main90919-02258×4i1ZR#,2ZRFE..ZRE18#201306-201605

19500DCOIL, IGNITION, NO.1

main90919-02257×4i1NRFE..NRE180201606-201808

9155180625

main91551-80625

4 parts on this diagram · 3 diagrams in section
