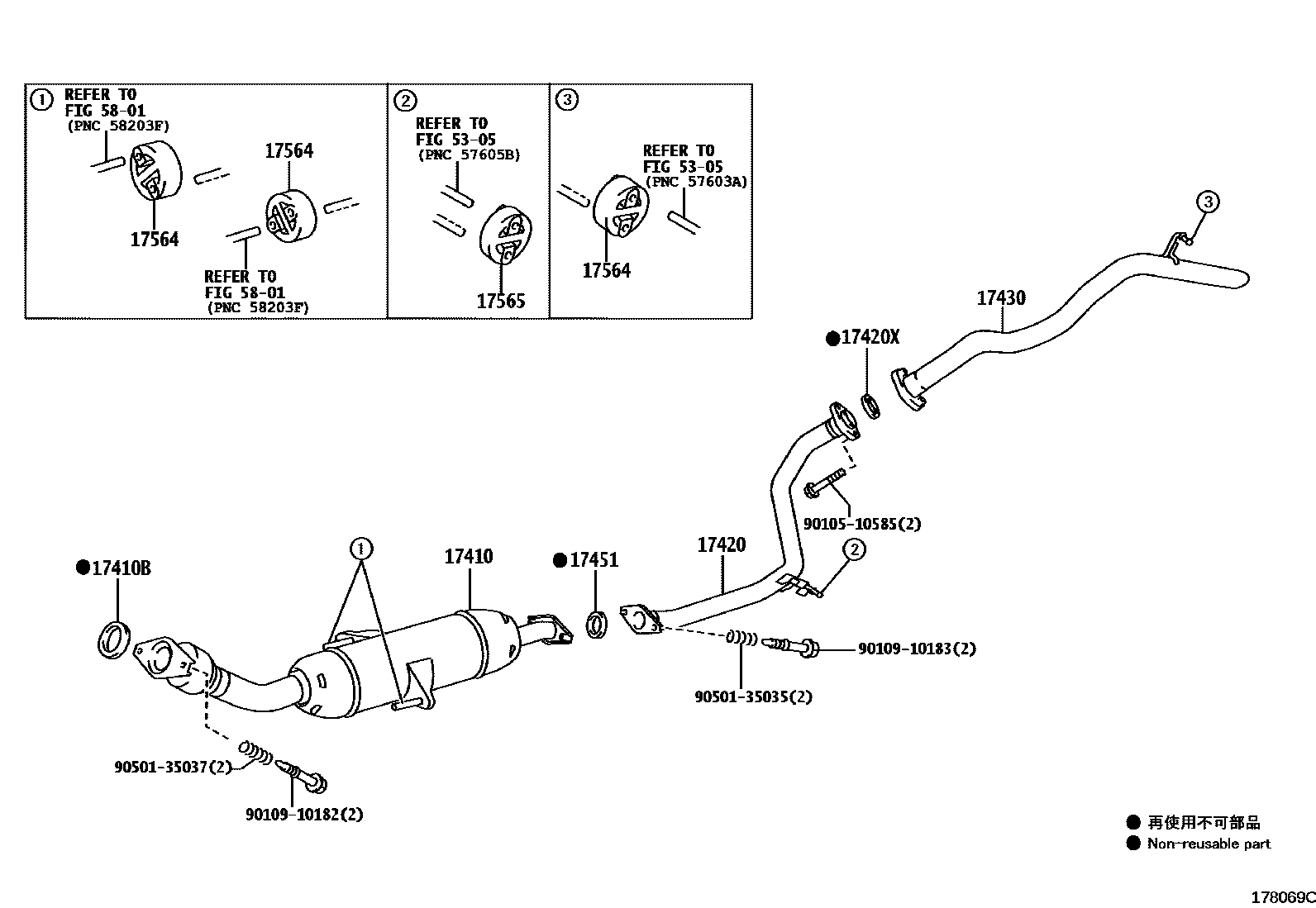

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0N080i1NDTV..NDE180..6F201306-201605

main17410-0N080i1NDTV..NDE180..LHD..6F201606-201711

TURKEY SPEC

main17410-0N200i1NDTV..NDE180..6F201505-201901

*114=TOYOTA/X86/Y

main17410-0T110i1ZRFAE..ZRE181201306-201505

*114=*387

main17410-0T450i1ZRFE,2ZRFE..ZRE18#201306-201901

*114=*387

main17410-0TA80i1ZRFAE..ZRE181201505-201901

*114=*409

main17410-0Y080i1NRFE..NRE180201306-201808

*114=TOYOTA/EU CE8/Y

17410BGASKET, EXHAUST PIPE

main17451-0R010i1NDTV,1ZR#,2ZRFE..NDE180,ZRE18#201306-201901

main17451-47020i1NRFE..NRE180201306-201808

sub17451-21070

17420PIPE ASSY, EXHAUST, CENTER

main17420-0N010i1NDTV..NDE180201306-201901

main17420-0T030i1ZR#,2ZRFE..ZRE18#201306-201901

main17420-0Y010i1NRFE..NRE180201306-201808

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1N#,1ZR#,2ZRFE..NDE180,NRE180,ZRE18#201306-201901

17430PIPE ASSY, EXHAUST, TAIL

main17430-0N120i1NDTV..NDE180201306-201901

main17430-0T270i1NRFE..NRE180201306-201901

17451GASKET, EXHAUST PIPE

main17451-0D112i1N#,1ZR#,2ZRFE..NDE180,NRE180,ZRE18#201306-201901

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0J031i1N#,1ZR#,2ZRFE..NDE180,NRE180,ZRE18#201306-201901

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D100i1N#,1ZR#,2ZRFE..NDE180,NRE180,ZRE18#201306-201901

5305

5801

9010510585

main90105-10585

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

15 parts on this diagram · 3 diagrams in section
