WATER PUMP

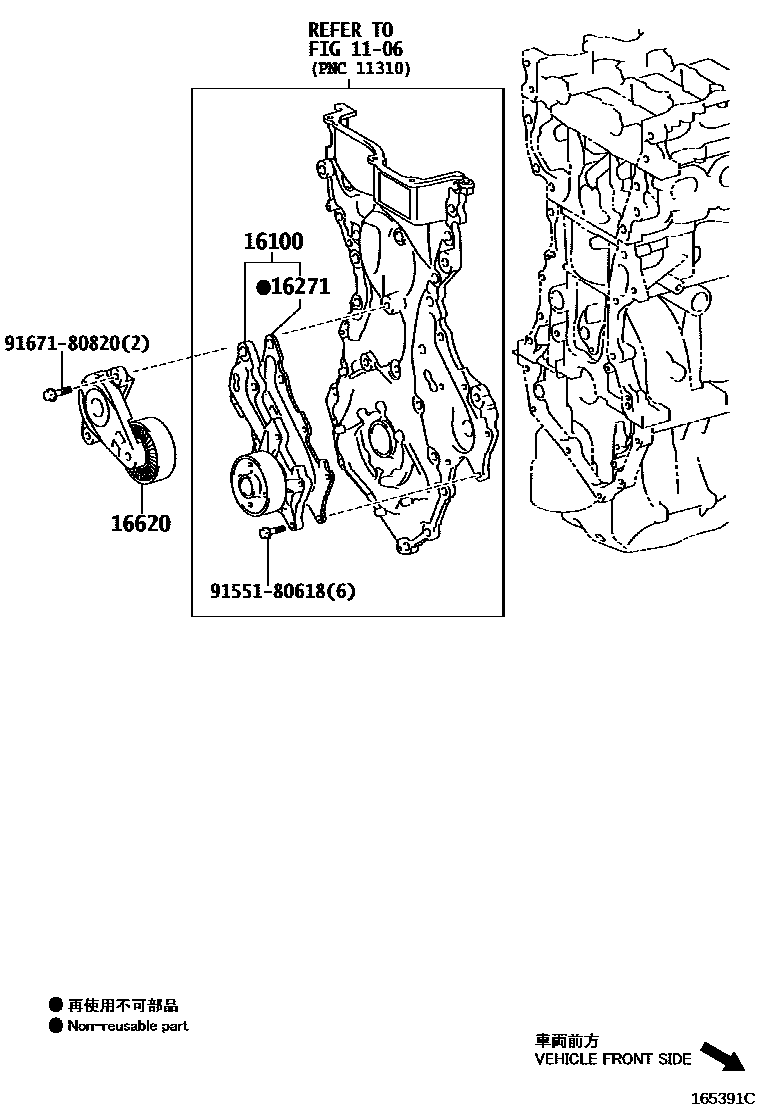

Parts diagram
1106
16100PUMP ASSY, ENGINE WATER
main16100-09501i201306-201901
(L)
sub16100-09502
main16100-09610i201606-201711
TURKEY SPEC
main16100-09610i201306-201605
main16100-09610i201306-201505
TYPE A:REFER 19-01
main16100-09680i201606-201901
main16100-09680i201505-201605
TYPE B:REFER 19-01
main16100-39466i201306-201901
(J)
main16100-80004i201306-201308
sub16100-80010
sub91552-81050
main16100-80010i201308-201808
sub16100-80019
16271GASKET, WATER PUMP
main16271-33030i201306-201901
main16271-37010i201306-201901
main16271-47031i201306-201808
16620TENSIONER ASSY, V-RIBBED BELT
main16620-0N010i201606-201901
main16620-0N010i201504-201605
(L)
main16620-33040i201306-201411
sub16620-33041
main16620-33041i201412-201601
(J)
sub16620-0N010
main16620-47030i201306-201808
sub16620-47031
9155180618
main91551-80618
9167180820
main91671-80820

6 parts on this diagram · 3 diagrams in section
