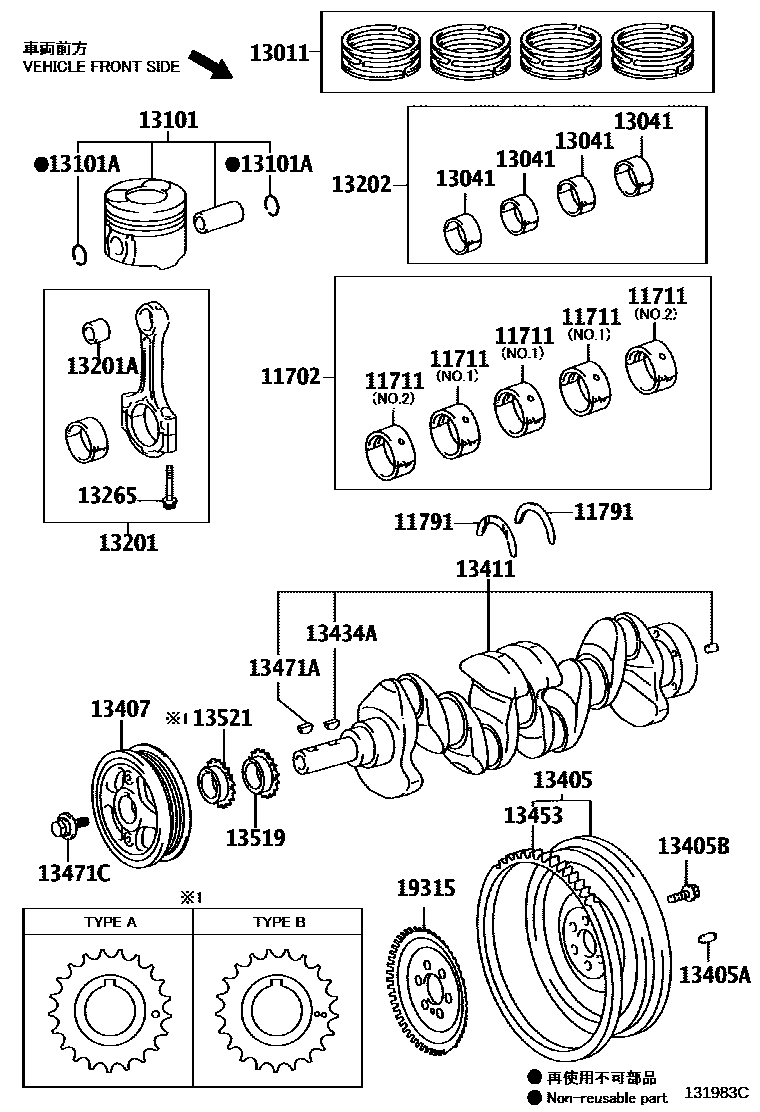

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25,START & STOP SYSTEM PACKAGE
11711BEARING, CRANKSHAFT
START & STOP SYSTEM PACKAGE,MARK 1,NO.1,(L):REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
MARK 3,(L),NO.1,2 REFER R/M
START & STOP SYSTEM PACKAGE,MARK 4,NO.1,(L):REFER R/M
START & STOP SYSTEM PACKAGE,MARK 1,NO.1,(L):REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
START & STOP SYSTEM PACKAGE,MARK 3,NO.1,(L),REFER R/M
START & STOP SYSTEM PACKAGE,MARK 4,NO.1,(L):REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
START & STOP SYSTEM PACKAGE,MARK1,NO.1,(J):REFER R/M
sub11701-21032
START & STOP SYSTEM PACKAGE,MARK4,NO.1,(J):REFER R/M
sub11701-21032
START & STOP SYSTEM PACKAGE,MARK 1,NO.1,(J):REFER R/M
MARK 2,(J),NO.1,2 REFER R/M
START & STOP SYSTEM PACKAGE,MARK 3,NO.1,(J):REFER R/M
START & STOP SYSTEM PACKAGE,MARK 4,NO.1,(J):REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
START & STOP SYSTEM PACKAGE,MARK 1,NO.2,REFER R/M
START & STOP SYSTEM PACKAGE,MARK 2,NO.2,REFER R/M
START & STOP SYSTEM PACKAGE,MARK 3,NO.2,REFER R/M
START & STOP SYSTEM PACKAGE,MARK 4,NO.2,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,NO.1,NO PAINTED
STD
STD
STD
STD
O/S 0.125
O/S 0.25
13011RING SET, PISTON
STD,PNC 13521=TYPE B
STD,(L)
STD,(L)
STD,(L)
STD
STD,TURKEY SPEC,PNC 13521=TYPE A
STD,(J)
STD,(J)
STD,(J)
STD
STD
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK A,*RRM,PNC 13521=T/P A
STD,MARK B,*RRM,PNC 13521=T/P A
STD,TURKEY SPEC,MARK C,*RRM,PNC 13521=T/P A
STD,MARK A,*RRM,PNC 13521=T/P B
STD,MARK B,*RRM,PNC 13521=T/P B
STD,MARK C,*RRM,PNC 13521=T/P B
STD
STD
STD
STD
STD,(J)
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
PNC 13521=TYPE A
PNC 13521=TYPE B
13201ROD SUB-ASSY, CONNECTING
(L)
(L)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
13405FLYWHEEL SUB-ASSY
(L)
(L)
(J)
(J)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13407DAMPER SUB-ASSY, CRANKSHAFT
(L)
13411CRANKSHAFT
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13453GEAR, FLYWHEEL RING
(L)
(L)
(J)
(J)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
PNC 13521=TYPE A
PNC 13521=TYPE B
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L),MADE IN TMMNA
(L),MADE IN EUROPE
TURKEY SPEC,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
(J)
(J)
19315PLATE, CRANK ANGLE SENSOR, NO.1
