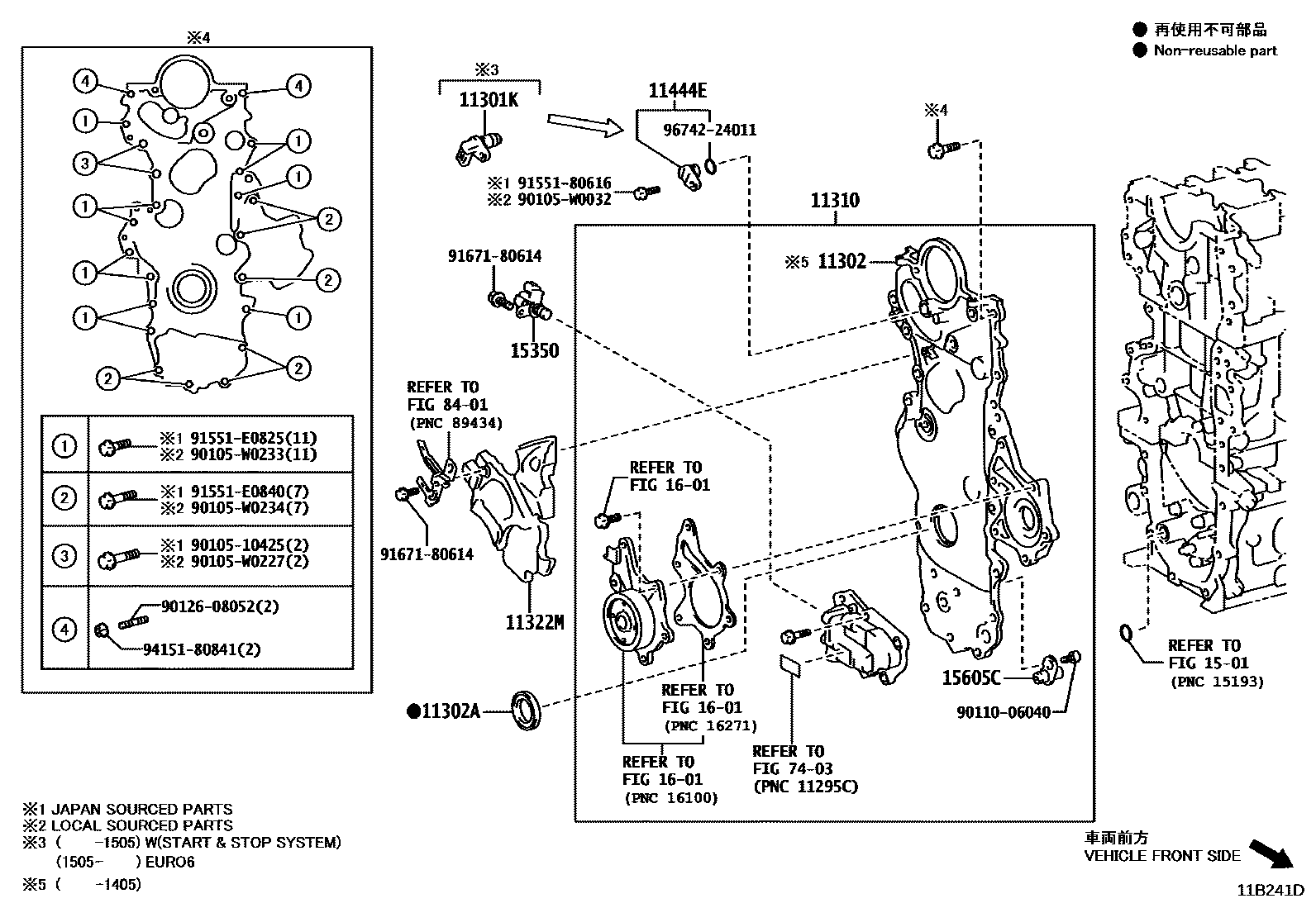

TIMING GEAR COVER & REAR END PLATE
11301KSENSOR, CRANK POSITION
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
(L)
(J)
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
(J)
(L)
11310COVER ASSY, TIMING CHAIN
TYPE A:REFER 19-01
TURKEY SPEC,TYPE A:REFER 19-01
TYPE B:REFER 19-01
sub11310-47042
sub11310-47043
11322MCOVER, TIMING CHAIN, NO.2
(L)
(J)
11444EPLUG, HOLE
TURKEY SPEC
1501
15350VALVE ASSY, OIL PRESSURE SWITCHING
15605CVALVE SUB-ASSY, OIL CHECK
1601
7403
8401
9010510425
main90105-10425
90105W0032
main90105-W0032
90105W0227
main90105-W0227
90105W0233
main90105-W0233
90105W0234
main90105-W0234
9011006040
main90110-06040
9012608052
main90126-08052
9155180616
main91551-80616
91551E0825
main91551-E0825
91551E0840
main91551-E0840
9167180614
main91671-80614
9415180841
main94151-80841
9674224011
main96742-24011
25 parts on this diagram · 3 diagrams in section
