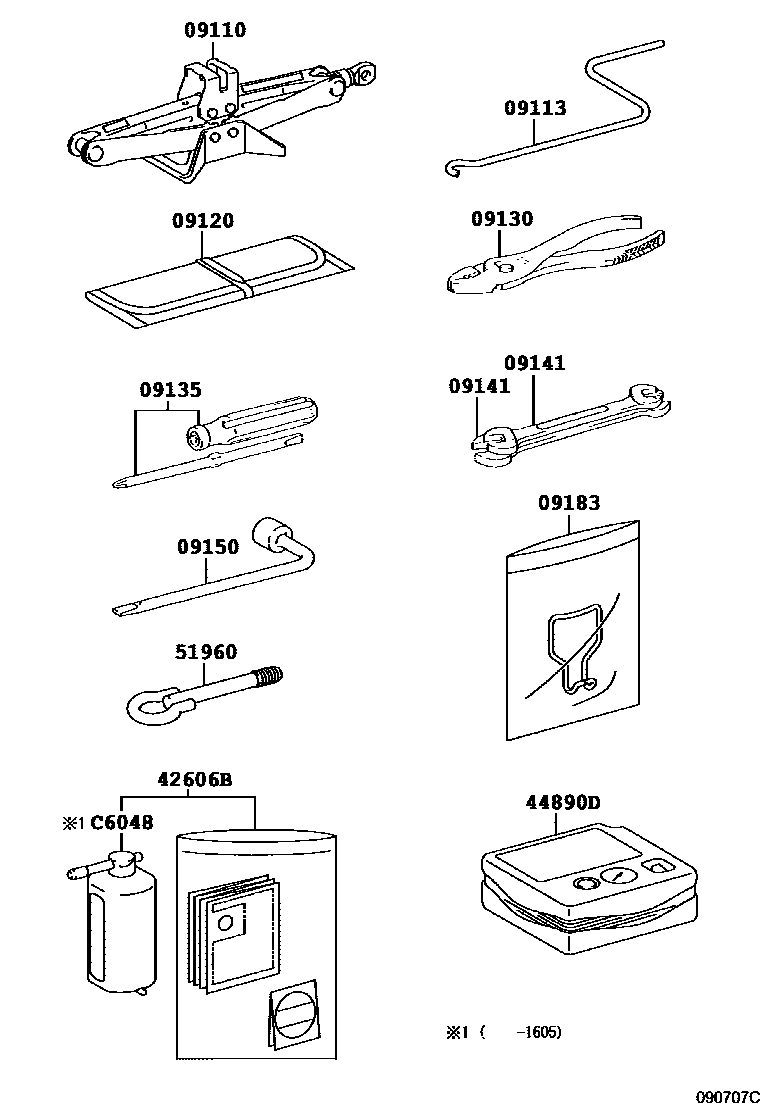

STANDARD TOOL
09110JACK ASSY
TOOL(PLANT INSTALL)-*HJDSP & CASE
sub09111-05052
09113HANDLE, JACK
TOOL(PLANT INSTALL)-*HJDSP & CASE&SPARE TIRE-TEMPORARY(T125/70D17)
09120BAG, TOOL
TOOL(PLANT INSTALL)-*HJDSP & CASE&SPARE TIRE-GROUND TIRE(STEEL WHEEL)
09130PLIERS
TOOL(PLANT INSTALL)-*HJDSP & CASE&SPARE TIRE-GROUND TIRE(STEEL WHEEL)
09135DRIVER, SCREW
TOOL(PLANT INSTALL)-*HJDSP & CASE&SPARE TIRE-GROUND TIRE(STEEL WHEEL)
09141SPANNER
8 X 10,TOOL(PLANT INSTALL)-*HJDSP & CASE&SPARE TIRE-GROUND TIRE(STEEL WHEEL)
12 X 14,TOOL(PLANT INSTALL)-*HJDSP & CASE&SPARE TIRE-TEMPORARY(T125/70D17)
09150WRENCH, HUB NUT BOX
TOOL(PLANT INSTALL)-WITHOUT
TIRE & DISC WHEEL-205/55R16 ATHENA(C&A) ECO&SPARE TIRE-GROUND TIRE(STEEL WHEEL)
09183WRENCH, WHEEL CAP
TIRE & DISC WHEEL-205/55R16 6.5J,ALUMINUM
42606BREPAIR KIT, TUBELESS TIRE
44890DCOMPRESSOR ASSY, AIR
51960HOOK ASSY, FRONT
C6048REPAIR SET, TIRE
mainC6048-02010
12 parts on this diagram · 1 diagram in section
