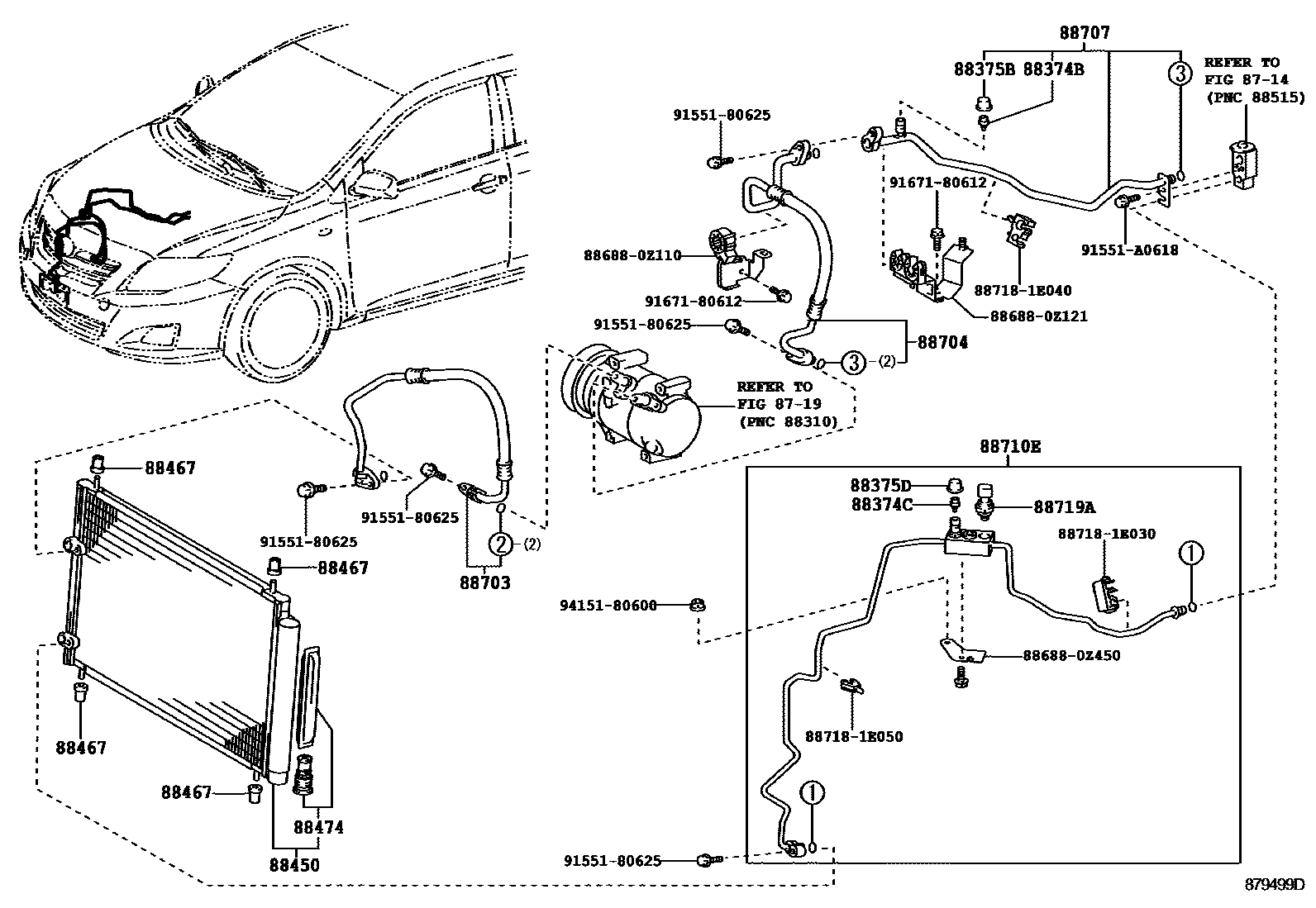

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-02020iADE150..LHD..DCR¥260200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

WITHOUT(AIR CONDITIONER)

main88374-02020iNDE150..N..DCR;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)¥260200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88374CVALVE, SERVICE, NO.2

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

WITHOUT(AIR CONDITIONER)

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88374-02020iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N¥260200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88374-02020iNDE150..N..DCR;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)¥260200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88375BCAP, SERVICE VALVE, NO.1

main88375-02140iADE150..LHD..DCR200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88375-02140iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903

WITHOUT(AIR CONDITIONER)

main88375-02140iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88375-02140iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88375-02140iNDE150..N..DCR;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88375DCAP, SERVICE VALVE, NO.2

main88375-02150iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88375-02150iADE150..LHD..DCR200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88375-02150iADE150..LHD..DCR200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88375-02150iNDE150..6FS..DCR;ADE150,NRE150,ZRE151..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88375-02150iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903

WITHOUT(AIR CONDITIONER)

88450CONDENSER ASSY, W/RECEIVER

main88450-02300iNDE150..LHD..N;NRE150,ZRE151..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88450-02300iNDE150,ZRE151,ZZE150..D200802-200902

MANUAL AIR CONDITIONER

main88450-02310iADE150200802-200903

WITHOUT(AIR CONDITIONER)

main88450-02310iADE150200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88450-02310iADE150200903-201306

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iADE150¥220200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main16716-28010iADE150..LHD..DCR¥220200802-200903

WITHOUT(AIR CONDITIONER)

main16716-28010iNDE150,ZRE151,ZZE150..N¥220200802-200902

MANUAL AIR CONDITIONER

main16716-28010iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)¥220200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88474DRYER, COOLER

main88474-02220iADE150,NDE150,NRE150,ZRE151..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88474-02220iADE150..LHD..DCR200802-200903

WITHOUT(AIR CONDITIONER)

main88474-02220iNDE150,ZRE151,ZZE150..N200802-200902

MANUAL AIR CONDITIONER

main88474-02220iADE150200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

88703HOSE SUB-ASSY, DISCHARGE

main88703-02410iZRE151..N200802-200902

MANUAL AIR CONDITIONER

main88703-02410iZRE151..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-02420iZZE150..N200802-200902

MANUAL AIR CONDITIONER

main88703-02430iNDE150..N200802-200902

MANUAL AIR CONDITIONER

main88703-02440iADE150200802-200903

WITHOUT(AIR CONDITIONER)

main88703-02440iADE150200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88703-02620iNRE150..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-02630iNDE150..N200902-201211

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-02640iADE150200903-201306

main88703-02A90iNDE150..D201211-201305

AIR CONDITIONER-MANUAL AIR CONDITIONER

88704HOSE SUB-ASSY, SUCTION

main88704-02640iZRE151..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-02640iZRE151..N200802-200902

MANUAL AIR CONDITIONER

main88704-02650iZZE150..D200802-200902

MANUAL AIR CONDITIONER

main88704-02660iNDE150..D200802-200902

MANUAL AIR CONDITIONER

main88704-02670iADE150200802-200903

WITHOUT(AIR CONDITIONER)

main88704-02670iADE150..LHD..DCR200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88704-02860iNRE150..D200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-02870iNDE150..N..DCRL200902-201211

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-02880iADE150200903-201306

main88704-02B20iNDE150..D201211-201305

AIR CONDITIONER-MANUAL AIR CONDITIONER

88707PIPE SUB-ASSY, SUCTION

main88707-02040iADE150..LHD..DCR200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88707-02040iNDE150,ZRE151,ZZE150..N200802-200902

MANUAL AIR CONDITIONER

main88707-02040iADE150200802-200903

WITHOUT(AIR CONDITIONER)

main88707-02040iADE150200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88707-02040iADE150200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88707-02040iNDE150..N..DCR;ADE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88707-02160iNRE150..D200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-02840iZRE151..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88710-02840iZRE151,ZZE150..N200802-200902

MANUAL AIR CONDITIONER

main88710-02850iNDE150..D200902-201305

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88710-02850iNDE150..D200802-200902

MANUAL AIR CONDITIONER

main88710-02860iADE150..LHD..DCR200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88710-02860iADE150..LHD..DCR200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88710-02860iADE150200903-201306

main88710-02860iADE150200802-200903

WITHOUT(AIR CONDITIONER)

main88710-02860iADE150200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88710-0Z190iNRE150..N200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNDE150,ZRE151,ZZE150..N¥0200802-200902

MANUAL AIR CONDITIONER

main88719-33020iADE150¥0200802-200903

WITHOUT(AIR CONDITIONER)

main88719-33020iADE150¥0200802-200903

AFRICA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

main88719-33020iADE150¥0200802-200903

AFRICA SPEC&WITHOUT(AIR CONDITIONER)

main88719-33020iADE150¥0200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88719-33020iNDE150..N..DCR;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)¥0200902-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

886880Z110BRACKET, COOLER DIAPHRAGM

main88688-0Z110

886880Z121BRACKET, COOLER DIAPHRAGM

main88688-0Z121

886880Z450BRACKET, COOLER DIAPHRAGM

main88688-0Z450

887181E030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E030

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

887181E050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E050

9155180625

main91551-80625¥60

91551A0618

main91551-A0618¥60

9167180612

main91671-80612¥60

9415180600

main94151-80600¥60

24 parts on this diagram · 6 diagrams in section
