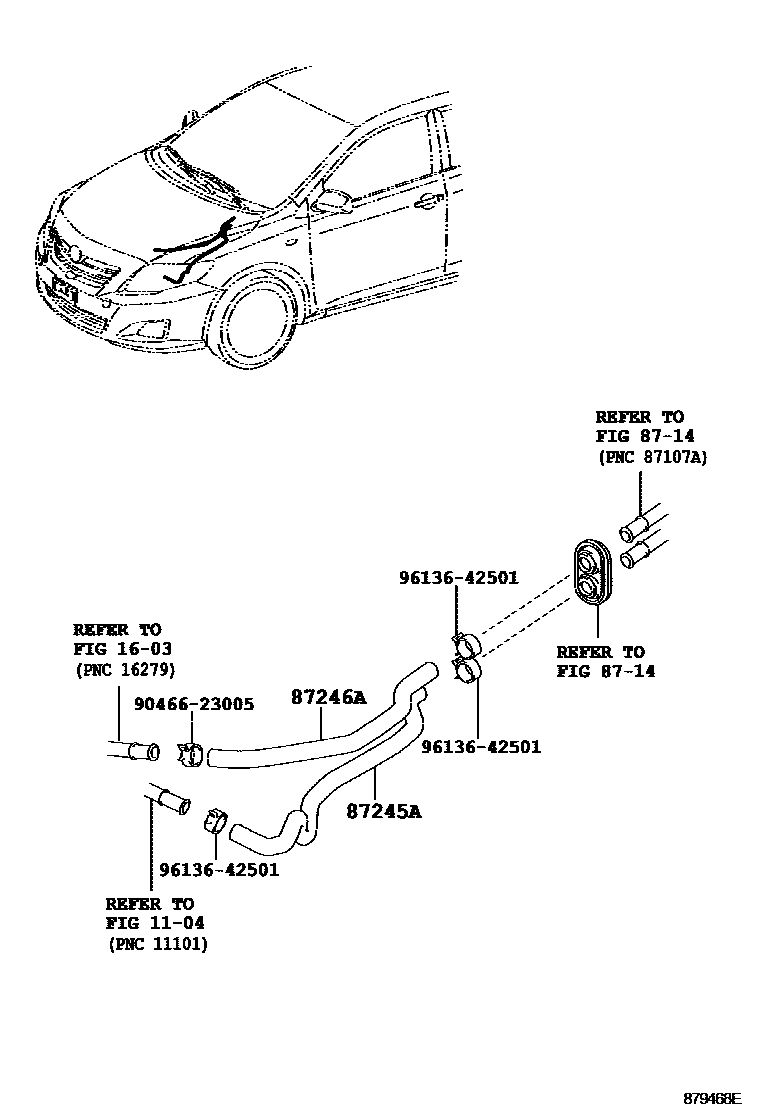

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1W(STOVE HEATER) 0006 1W(STOVE HEATER) 0007 1 0008 1W(EXHAUST HEATER)

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-02640iNRE150200902-201006

RUSSIA SPEC, WITH(OBD)&COLD AREA SPEC

main87245-02640iNRE150..LHD200902-201006

RUSSIA SPEC, WITHOUT(OBD)&COLD AREA SPEC

main87245-02640iNRE150..LHD200902-201006

COLD AREA SPEC

main87245-02640iNRE150..LHD201006-201306

WITH(EXHAUST HEATER & PTC HEATER)

main87245-02B20iNDE150..LHD200802-201306

COLD AREA SPEC

main87245-12A00iZRE151200802-201204

main87245-12A60iZZE150200802-200902

main87245-12A90iNDE150200802-200902

COLD AREA SPEC

main87245-12B10iADE150200802-200903

COLD AREA SPEC

main87245-12B10iADE150200802-200903

ADDITIONAL HEATER-STOVE HEATER

main87245-12F10iNDE150..D;NDE150..LHD..N200902-201305

main87245-12F30iADE150200903-201306

main87245-12G10iZRE151201205-201306

87246AHOSE, HEATER WATER, OUTLET A

main87245-02870iNRE150201006-201306

main87245-02870iNRE150200902-201006

RUSSIA SPEC, WITHOUT(OBD)&COLD AREA SPEC

main87245-02870iNRE150..LHD200902-201006

RUSSIA SPEC, WITH(OBD)&COLD AREA SPEC

main87245-02880iNRE150..LHD200902-201006

COLD AREA SPEC

main87245-02880iNRE150..LHD201006-201306

WITH(EXHAUST HEATER & PTC HEATER)

main87245-12A10iZRE151200802-201306

main87245-12A70iZZE150200802-200902

main87245-12B00iNDE150..LHD200802-200902

COLD AREA SPEC

main87245-12B20iADE150200802-200903

ADDITIONAL HEATER-STOVE HEATER

main87245-12B20iADE150200802-201109

COLD AREA SPEC

main87245-12B20iADE150200903-201006

ADDITIONAL HEATER-STOVE HEATER

main87245-12B21iADE150201109-201306

COLD AREA SPEC

main87245-12F70iNDE150..LHD..DCR200902-201306

COLD AREA SPEC

main87245-12F70iNDE150..DCRL200902-201007

ADDITIONAL HEATER-STOVE HEATER

main87245-12F70iNDE150201006-201305

9046623005

main90466-23005

9613642501

main96136-42501

7 parts on this diagram · 8 diagrams in section
