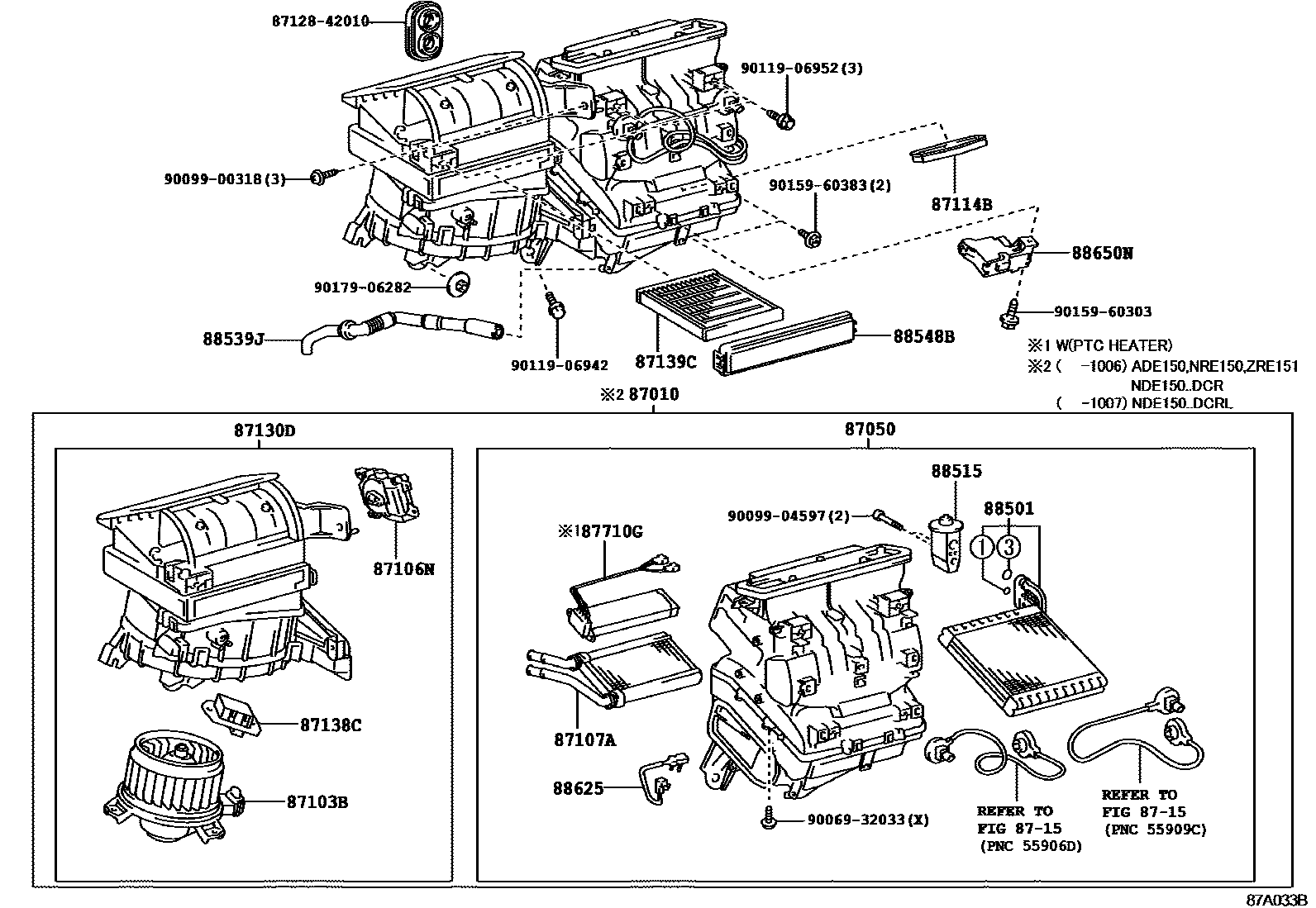

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL W/O(AIR CONDITIONER) 0003 1AUTO AIR CONDITIONER 0004 1MANUAL AIR CONDITIONER 0005 1MANUAL W/O(AIR CONDITINER) 0006 1AUTO AIR CONDITIONER 0007 1O-RING

87010UNIT ASSY, AIR CONDITIONER

main87010-02C90iZRE151,ZZE150..RHD..N200802-200803

MANUAL AIR CONDITIONER

main87010-02C91iZRE151,ZZE150..RHD..N200804-200810

MANUAL AIR CONDITIONER

main87010-02C92iZRE151,ZZE150..RHD..N200811-200902

MANUAL AIR CONDITIONER

main87010-02D50iADE150,NDE150..LHD..N200802-200803

COLD AREA SPEC

main87010-02D51iZRE151,ZZE150..LHD..N200804-200810

COLD AREA SPEC

main87010-02D52iNRE150,ZRE151..LHD..D200902-201006

COLD AREA SPEC

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02A50supersedes 87050-02A30iNRE150,ZRE151..RHD..N200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-02A60supersedes 87050-02A40iADE150..RHD200903-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-02B10supersedes 87050-02A90iZRE151,ZZE150..LHD..N200802-200902

AUTO AIR CONDITIONER

main87050-02B20supersedes 87050-02B00iADE150..LHD201006-201306

COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-02E30supersedes 87050-02E20iNRE150..LHD..N201006-201306

AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-02G70supersedes 87050-02E00iNDE150..RHD..N201006-201306

AIR CONDITIONER-AUTO AIR CONDITIONER

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02160iADE150,NDE150,ZRE151,ZZE150..RHD200802-200803

MANUAL AIR CONDITIONER(DEALER OPTION)

main87103-02170iADE150..LHD..DCR;NDE150,ZRE151,ZZE150..LHD..D200802-200803

MANUAL AIR CONDITIONER(DEALER OPTION)

main87103-02460iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

main87103-02470supersedes 87103-02470iNDE150,ZRE151,ZZE150..LHD200804-200902

MANUAL AIR CONDITIONER(DEALER OPTION)

main87103-02300supersedes 87103-02460iADE150..RHD200802-200903

AUTO AIR CONDITIONER

main87103-02310supersedes 87103-02470iNDE150..N..DCR;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200902-201006

RUSSIA SPEC, WITH(OBD)&COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02350iNDE150,ZRE151,ZZE150..RHD200802-200902

MANUAL AIR CONDITIONER(DEALER OPTION)

main87106-02390supersedes 87106-02390iNDE150,ZRE151,ZZE150..LHD200802-200902

MANUAL AIR CONDITIONER(DEALER OPTION)

main87106-02380supersedes 87106-02350iZRE151,ZZE150..RHD..N200802-200902

AUTO AIR CONDITIONER

main87106-02400supersedes 87106-02390iNDE150,ZRE151..LHD..N200802-200902

AUTO AIR CONDITIONER

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02210supersedes 87107-02210iADE150..LHD..DCR;NDE150,ZRE151,ZZE150..(5F,5FS)..D200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

87114BCOVER, HEATER

87130DBLOWER ASSY

main87130-02390iZRE151,ZZE150..RHD200802-200803

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-02391iZRE151,ZZE150..RHD200804-200810

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-02392iZRE151,ZZE150..RHD200811-200902

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-02400iADE150,NDE150..RHD200802-200803

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-02401iADE150,NDE150..RHD200804-200810

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-02402supersedes 87130-02402iADE150,NDE150..RHD201006-201306

main87130-02430iZRE151,ZZE150..LHD200802-200803

COLD AREA SPEC&MANUAL AIR CONDITIONER

main87130-02431supersedes 87130-02441iZRE151,ZZE150..LHD200804-200810

COLD AREA SPEC&MANUAL AIR CONDITIONER

main87130-02432supersedes 87130-02442iZRE151,ZZE150..LHD200811-200902

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-02442supersedes 87130-02432iNDE150..LHD..6F;NDE150..6FS..DCRL201006-201305

WITH(PTC HEATER)

main87130-02410iZRE151,ZZE150..RHD..N200802-200810

AUTO AIR CONDITIONER

main87130-02411iZRE151,ZZE150..RHD..N200811-200902

AUTO AIR CONDITIONER

main87130-02420supersedes 87130-02402iADE150..RHD200802-200810

AUTO AIR CONDITIONER

main87130-02421supersedes 87130-02402iADE150,NDE150..RHD..N201006-201306

AIR CONDITIONER-AUTO AIR CONDITIONER

main87130-02450iADE150,NDE150..LHD..N200802-200810

AUTO AIR CONDITIONER

main87130-02451iADE150,NDE150..LHD..N201006-201306

COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER

main87130-02460iADE150,NDE150..LHD..N200802-200810

AUTO AIR CONDITIONER

main87130-02461supersedes 87130-02442iADE150,NDE150..LHD..N201006-201306

COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER

87138CRESISTOR, BLOWER

main87138-0K090iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

sub87138-0K290

main87138-0K110supersedes 87138-0K110iNDE150..6FS..DCR;ADE150,NRE150,ZRE151..LHD201006-201306

87139CFILTER, CLEAN AIR

main87139-30040iNDE150..6F;NDE150..6FS..DCRL;ADE150,NRE150,ZRE151201006-201306

POLLEN FILTER

main87139-50100iNDE150..6F;NDE150..6FS..DCRL;ADE150,NRE150,ZRE151201006-201306

*DPF

8715

87710GQUICK HEATER ASSY

main87710-02050iADE150..RHD200802-200903

sub87710-02010

main87710-02060iNRE150..LHD..D201006-201306

WITH(EXHAUST HEATER & PTC HEATER)

main87710-02080iNDE150..RHD200902-201003

main87710-02090iNRE150..LHD..D200902-201003

RUSSIA SPEC, WITH(OBD)&COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER

main87710-0K030iNRE150..LHD..D201006-201305

WITH(PTC HEATER)&AIR CONDITIONER-MANUAL AIR CONDITIONER

main87710-0K040iNDE150..RHD..D201004-201007

main87710-12020iNRE150,ZRE151..LHD..D200902-201006

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K120iNDE150,ZRE151..LHD..D200802-200810

MANUAL AIR CONDITIONER(DEALER OPTION)

main88501-0K121iNDE150,ZRE151..LHD..D200811-200902

COLD AREA SPEC&MANUAL AIR CONDITIONER

main88501-12510supersedes 88501-12510iNDE150..RHD..D;NRE150,ZRE151..D201301-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88515VALVE, COOLER EXPANSION

main88515-02160supersedes 88515-02160iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903

MANUAL AIR CONDITIONER(DEALER OPTION)

main88515-02600supersedes 88515-02600iNDE150..RHD..D;NRE150,ZRE151..D201209-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

88539JHOSE, DRAIN COOLER

main88539-02130iADE150..RHD200802-200903

sub88539-02280

main88539-02140iADE150,NDE150,NRE150,ZRE151..LHD201006-201306

sub88539-02290

88548BCASE, AIR FILTER

main88548-02080iNDE150,ZRE151,ZZE150..RHD200802-200902

main88548-02090iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200902-201006

88625THERMISTOR, COOLER, NO.1

main88625-02110supersedes 88625-02110iNDE150..D..DCRL200902-201007

AIR CONDITIONER-MANUAL AIR CONDITIONER

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02410iZRE151..LHD;NDE150..LHD..D200802-200902

COLD AREA SPEC

main88650-02630iNDE150..LHD..DCR;ADE150..LHD..DCRL200902-201006

STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL AIR CONDITIONER

main88650-02640iNRE150..LHD..D200902-201006

COLD AREA SPEC&ADDITIONAL HEATER-STOVE HEATER

main88650-02890iADE150,NDE150..LHD201006-201306

STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL AIR CONDITIONER

main88650-02450supersedes 88650-02400iZRE151,ZZE150..N200802-200902

AUTO AIR CONDITIONER

main88650-02460supersedes 88650-02410iZRE151..LHD..N200802-200902

AUTO AIR CONDITIONER

main88650-02670iNDE150..N..DCR;ADE150..LHD..DCRL200902-201006

COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER

main88650-02680iNRE150..LHD..N201006-201306

COLD AREA SPEC&WITH(EXHAUST HEATER & PTC HEATER)&AIR CONDITIONER-AUTO AIR CONDITIONER

main88650-02A00iADE150,NDE150..LHD..N201006-201306

COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER

8712842010GROMMET, HEATER

main87128-42010

9006932033

main90069-32033

9009900318

main90099-00318

9009904597

main90099-04597

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

26 parts on this diagram · 7 diagrams in section
